ososlohatch

this is mw hmt's last setup of 07 been done for a couple weeks now i could be off on a couple things but it pretty much breaks down to this built by myself johntsi pissnuts, Dan the man (johntsi's father in-law) even helped out on this screamin chingalero !!
d15b7 buttom end
new bearings
honed
new rings
new headgasket
crx si head (si cam also)
drag manifold
ihi 48/52 t3
ching chang w/g (7psi)
dsm 390cc injectors
vafc tuned
aem wideband
2.5 inch d.p
srt4 ic (flat black)
faze boost gauge
xtd stage 2 clutch

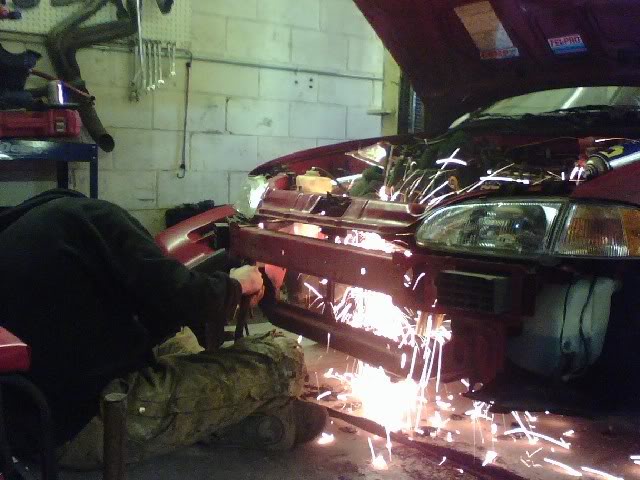

me plazma cutting front end for srt ic

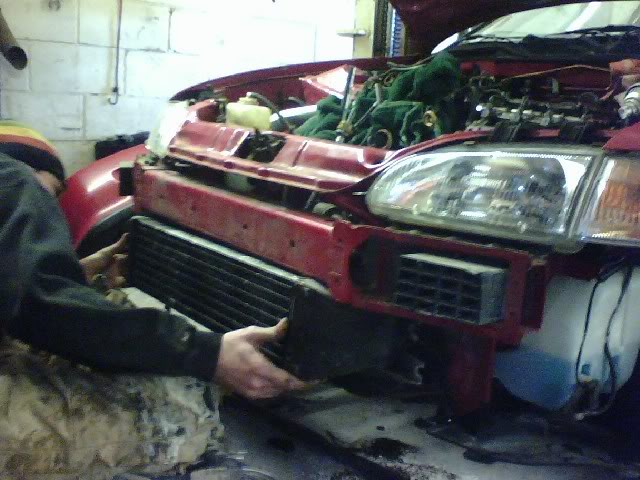

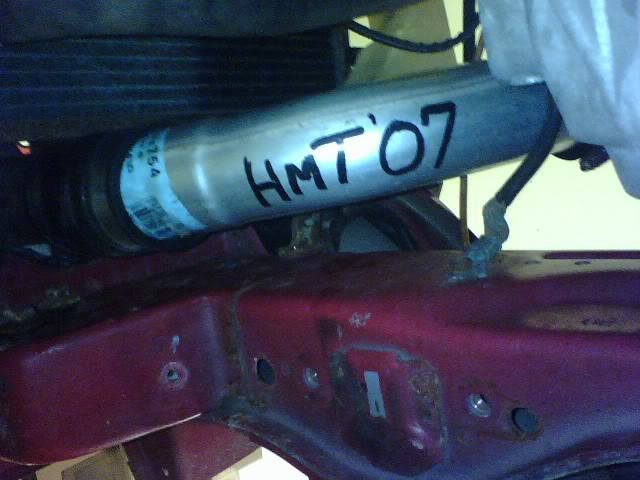

fitting the negro ic

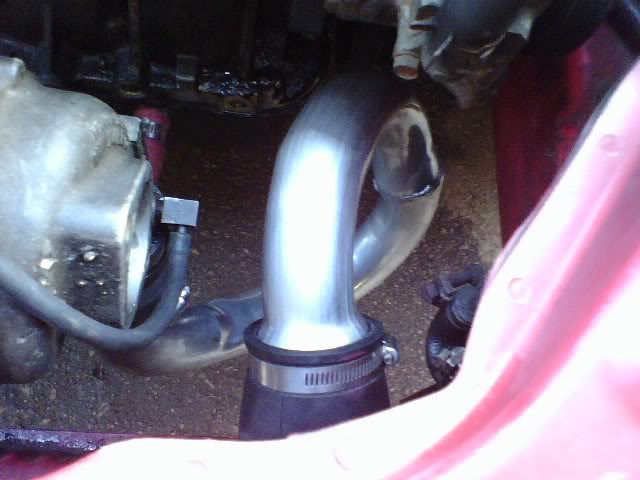

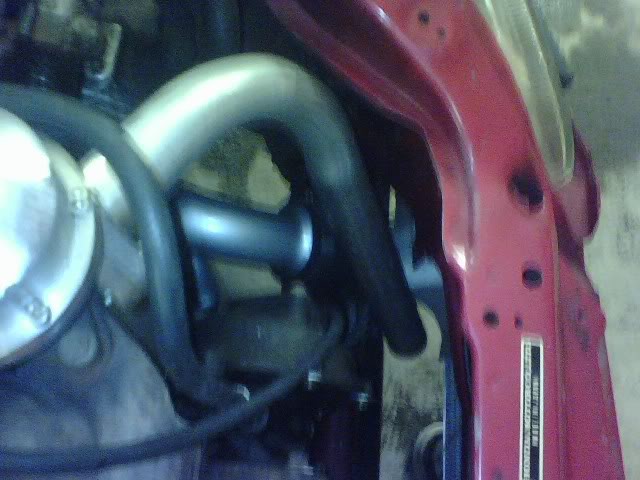

roller coaster ic piping :P

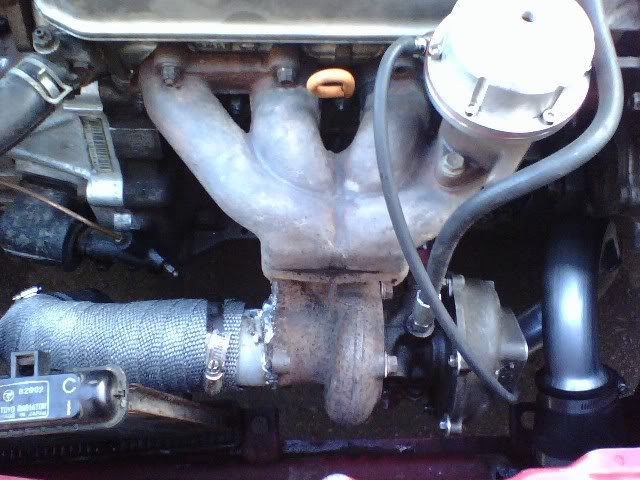

bird eye view of turbo setup

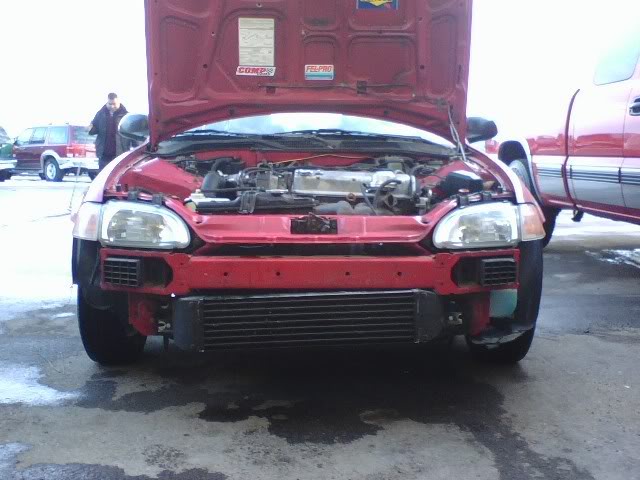

front bumper off ( everybody wave to mikey !!! )

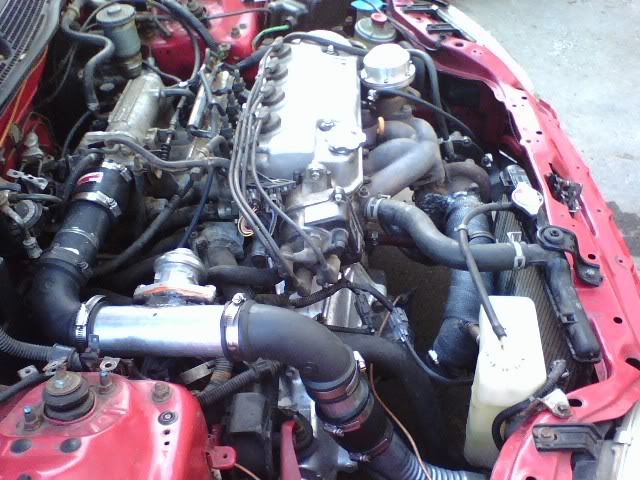

money shot


stickers of non existing parts :1


represent

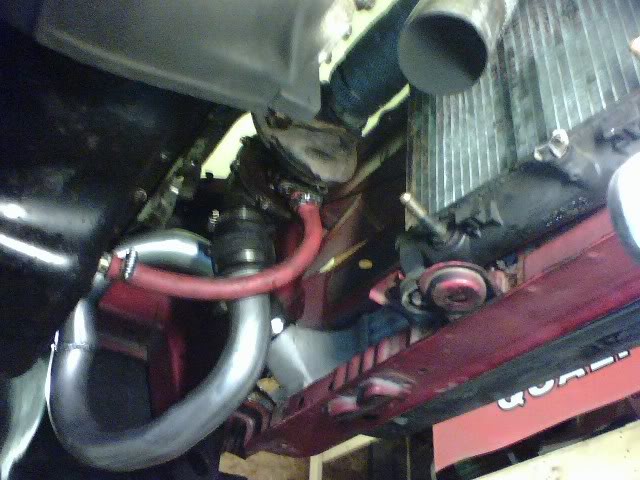

down pipe charge drain


dump tube

right now we are having a problem with the injectors sticking cause he got them for free from a friend.. car runs solid but try;n not to beat on it since it dips into 10:1 afr's above 5k

TorganFM

Wow, nice level intercooler mounting.

the 13th round

yeah looks like the bitch in your sig mounted it.

SDRAWKCAB

I think its beautiful!

Birdley42008

+1 For uneven intercooler mount! I too have the same problem, not as bad though. I get a kick out of the people that talk ---- about an uneven intercooler mount!

Also, that setup looks good! Interesting drain line.

johntsi

yeah it ***** up the flow i no but we got lazy :P

seerex

Looks good but whats up with the piping.

idiot-stick

nice setup. When the boost comes outta the turbo, it goes click click click click then it hauls *** down hill

ososlohatch

due to the way the srt inlet on the ic was and even with the turbo rotated it still would have had to have a tricky charge pipe there casue the turbo isnt directly above the ic inlet it sits over about 4-5 inches.. ya the intercooler sits a little gooofy but you cant tell with the bump on at all.. thats all i really cared about.. its not the fanciest thing in the world but keep in mind the car cost 200 bucks and he has about 500-600 put into it total including the wideband and all the electronics turbo parts rebuild everything.. ohh and best of all we turned a dsm dork-**** in to a honda lovin hmt reppin cool guy :P

ososlohatch

yup this turbo literally blew apart and bitchasscracker bolted it back together and sold it to john for 20 dollar,, holds 7 psi solid and the little turd nugget can actually chirp 3rd now :1
