Need a lil help plz on turbo
02-07-2008, 12:43 AM
#1
0.0 BAR
Thread Starter
Join Date: Dec 2007
Posts: 47
Need a lil help plz on turbo

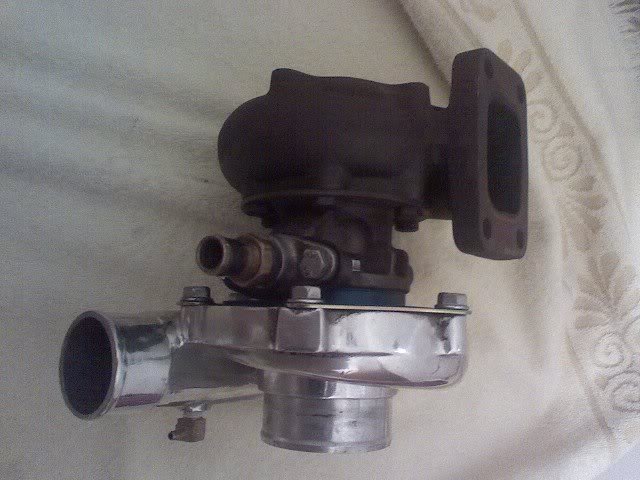

ok well im not a turbo genious but could anyone tell me the size or wat turbonetics turbo this is plz. it really dosent have much for numbers on it that seem to mean anything and does it need a oil resistrictor and what size thanks
ill give it back promise
02-07-2008, 02:47 AM
#10
1.5 BAR
Join Date: Nov 2006
Posts: 1,453
Re: Need a lil help plz on turbo

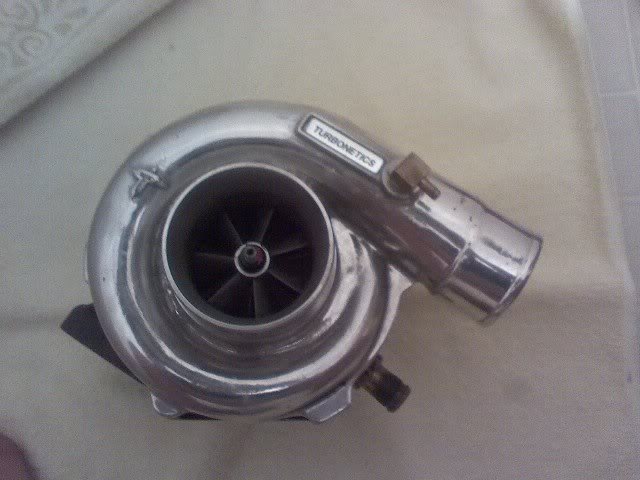

That looks to me like a TO4B cover with the 3" inlet and 2" outlet, so it's the smaller to4b compressor housing which makes it a .60 a/r. The TO4b also comes in 4" inlet (.60 a/r too) like the t04s (.70 a/r and 2.5" outlet). Anyway, it's a .60 a/r coldside and what looks like a .63 a/r T3 hotside, but could be any of the .48-.82 T3 exhaust housings as I'm not good enough to tell what a/r it is from just looking at one angle. To make 100% sure of the coldside a/r just look up in the compressor outlet and it'll be stamped there. The hotside should have it near the exhaust inlet too.

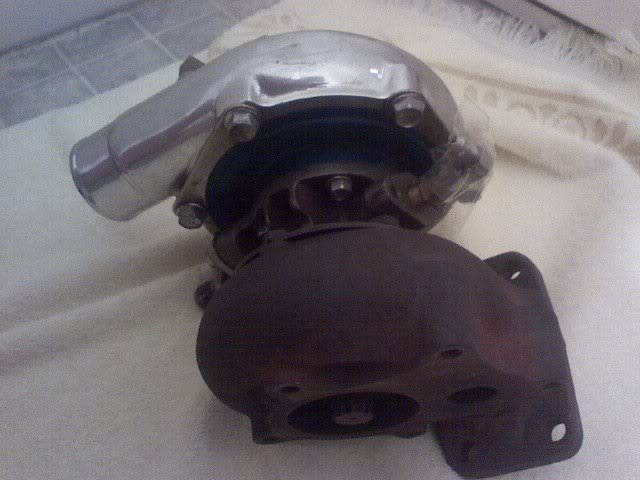

The turbine wheel is a Garrett T3 probably Stage 1 or 3, but Turbonetics has been known to upgrade to Stage 1-5. Stage 5 is also a very common turbine wheel used in their t3/t04 turbos. You'd have to measure it to be sure, but the main thing is that it's a T3 exhaust wheel with a T4 compressor wheel hence the t3/t4 label. It's obviously a standard T3 exhaust inlet and 5 bolt exhaust outlet which is the most common flanges for a Garrett. You'll have to run an external wastegate like it is, but you can convert it to internal for pretty cheap.
It is not a ball bearing turbo as it's only an oil cooled center section not both oil and water like their ball bearing turbos. It'll have a 360 degree "race" center section in it and probably carbon seal and staggered turbine piston ring which helps reliability a ton. It's very well sized for 250 to 350+whp on a 4 cylinder. It'll be reflexive but still make power on pump gas at lowish pressure, but will respond to highish boost levels too. Does that help you more than these jaded ***** did?
