so here we go.
i dont get alot of free time , i work alot , so this project will take about 3-4 months and i will keep it updated.

one thing i need to say before i start... I KNOW WHAT I'M DOING no troll please. my job is related to that anyway. i may have a question or two as i never had to work with a part or something tho.


the project is to turbo my X3 ( 1999 ) accent and my brother LC2 ( 2003 ) accent.
both share the same engine , 1.5L sohc 12v , G4EKX.
mine is original 301 360 km
my brother is 192 000km and we don't know if its original or have been changed.

lets start for mine.
will get 8 psi of boost stock internal no tune only a FMU.
as i'm a DIY freak i will not buy piping. i will make my own with standard exhaust tube.

my brother one will have the same set-up but next year will get scoupe turbo piston and connecting rod for 12-15 psi.


so for now i got both turbo.
t3t4
.50 A/R compressor
.48 A/R exhaust
they are chinacharger but like i said i know what i'm doing.
i installed over 8 of them.
the trick is to get the right oil restrictor and they will last.
anyway

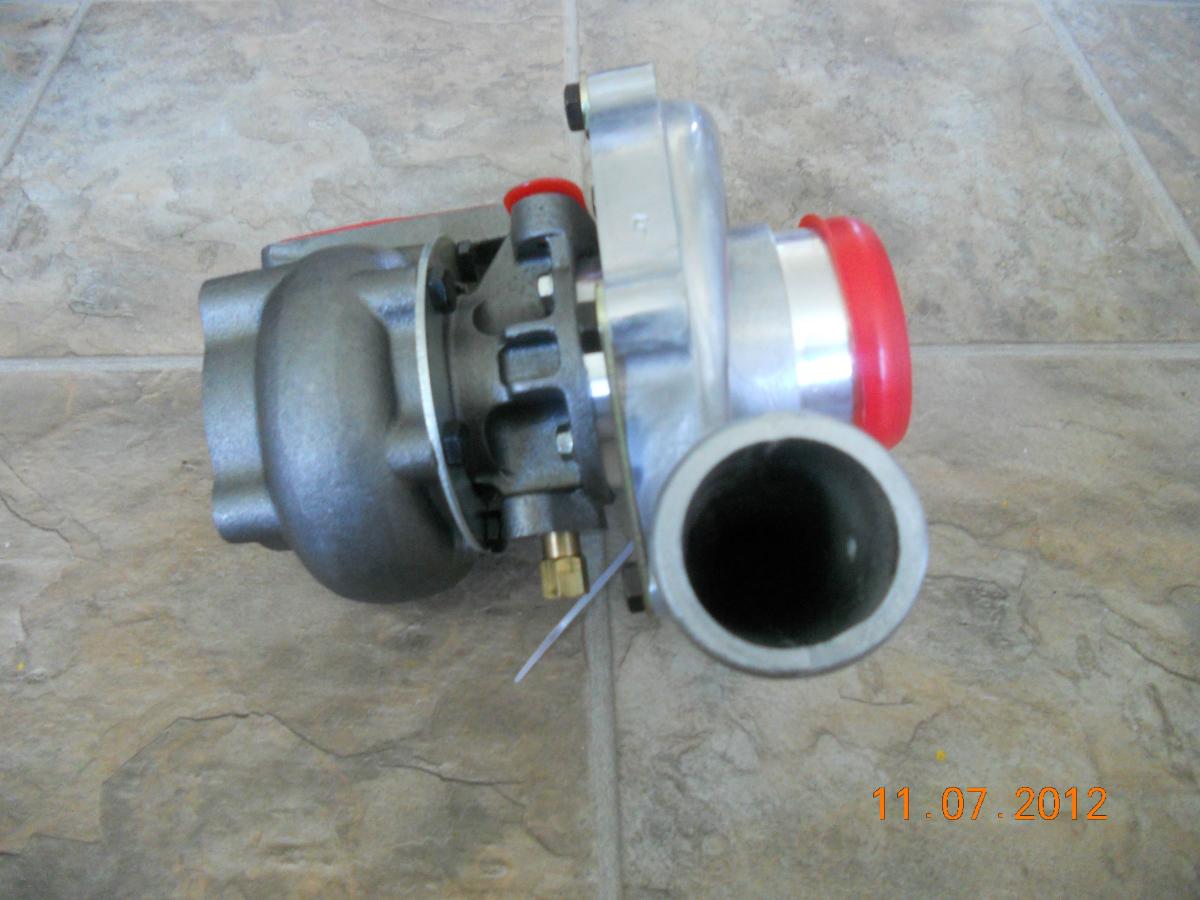

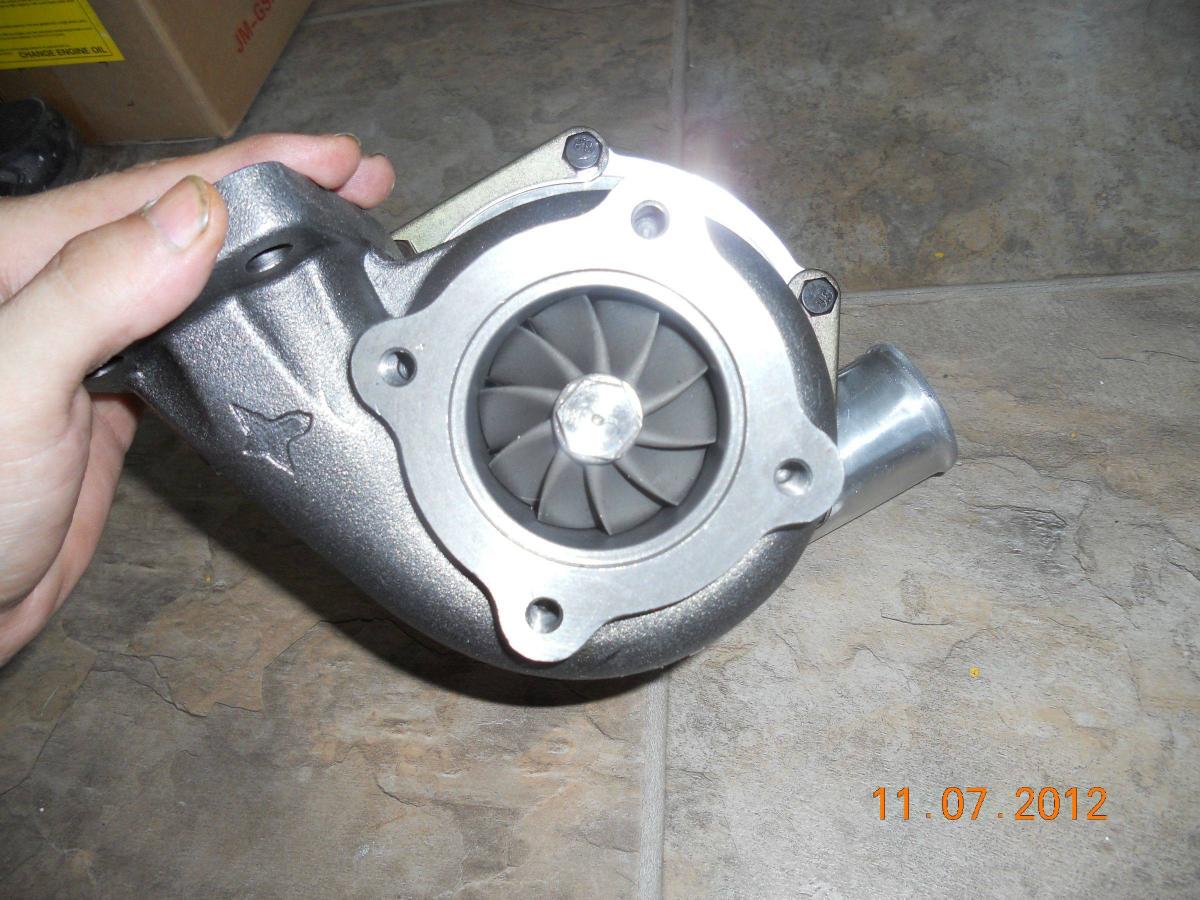

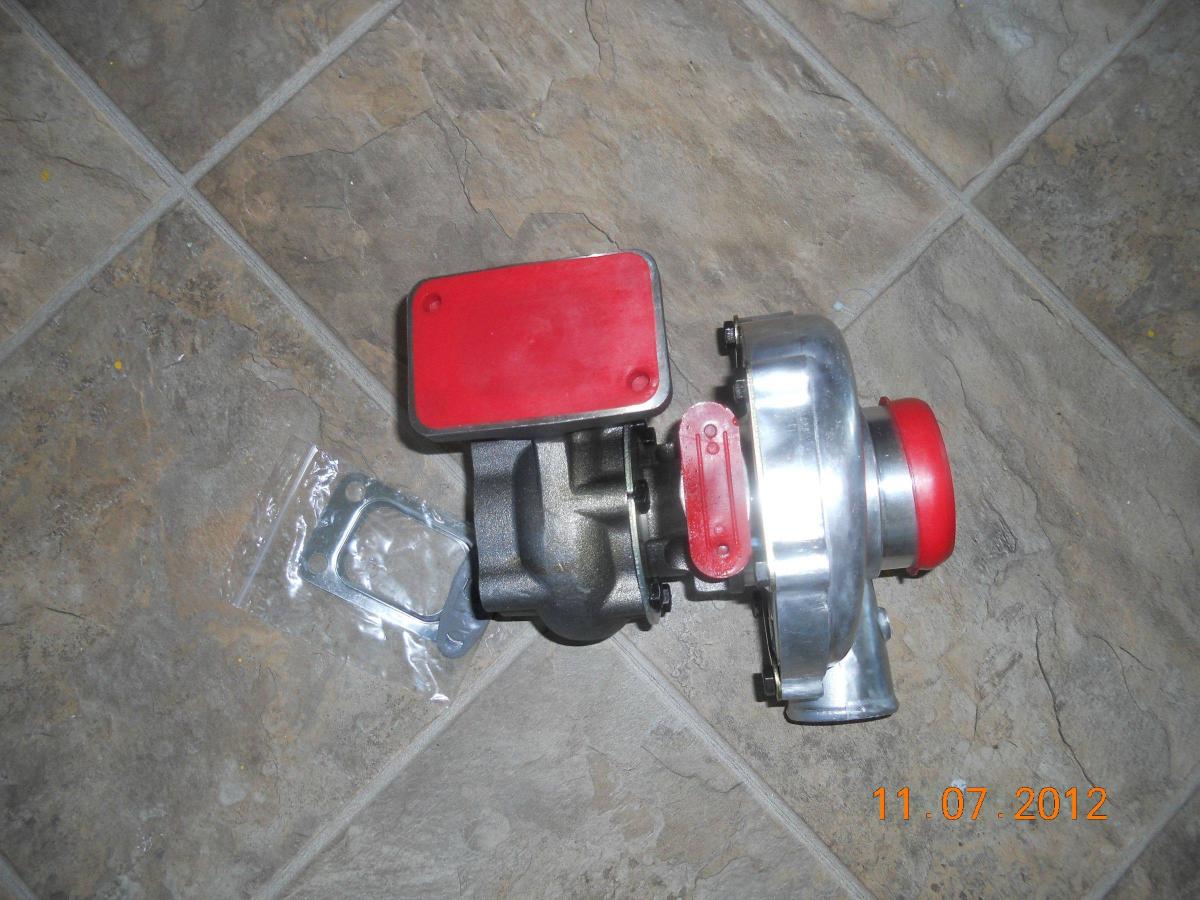

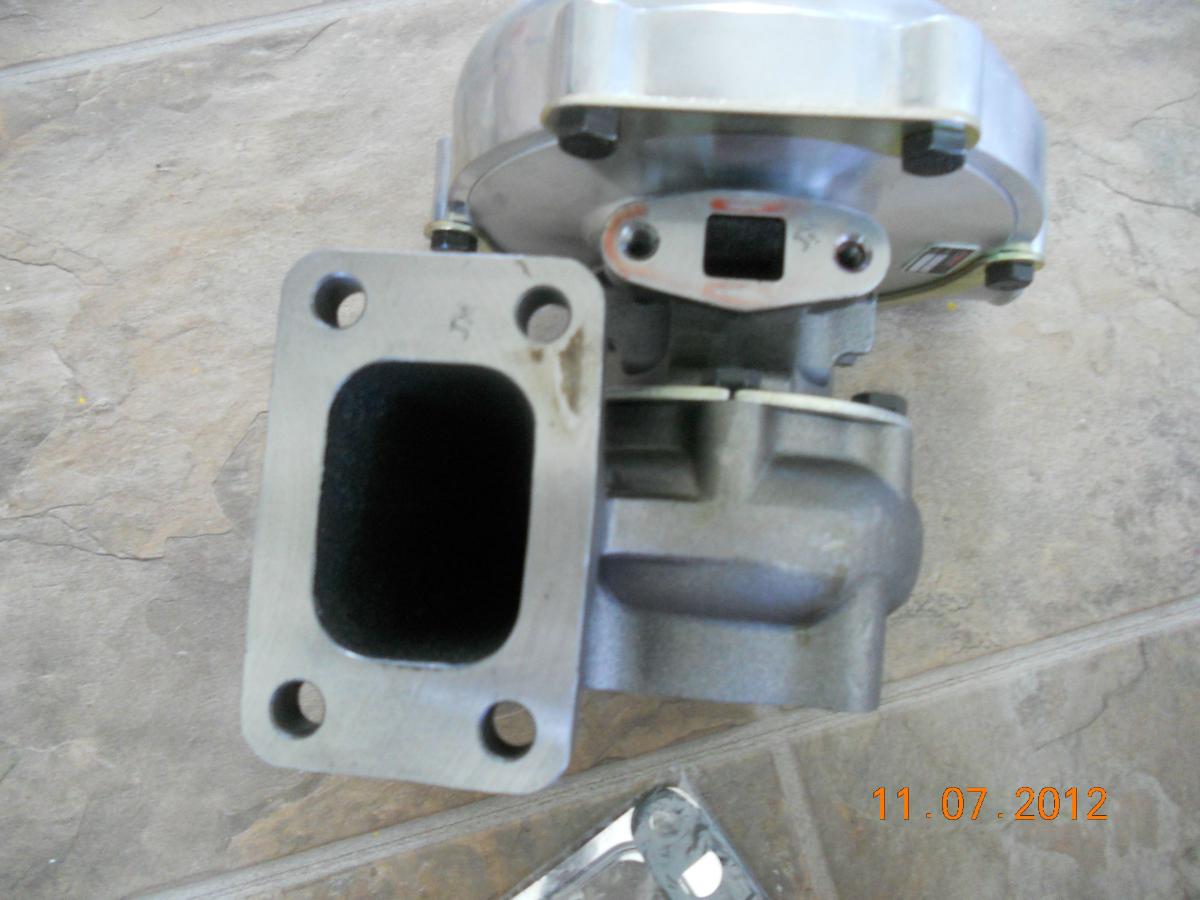

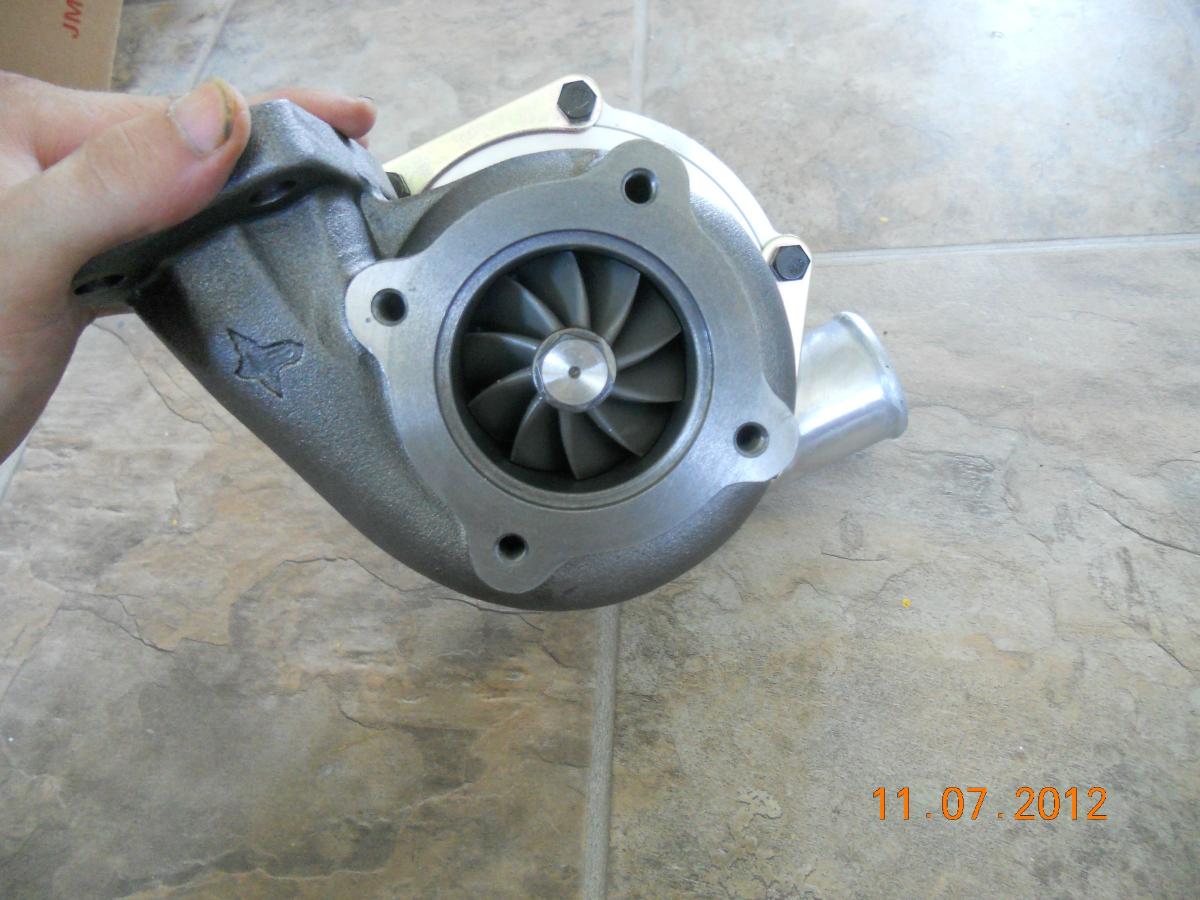

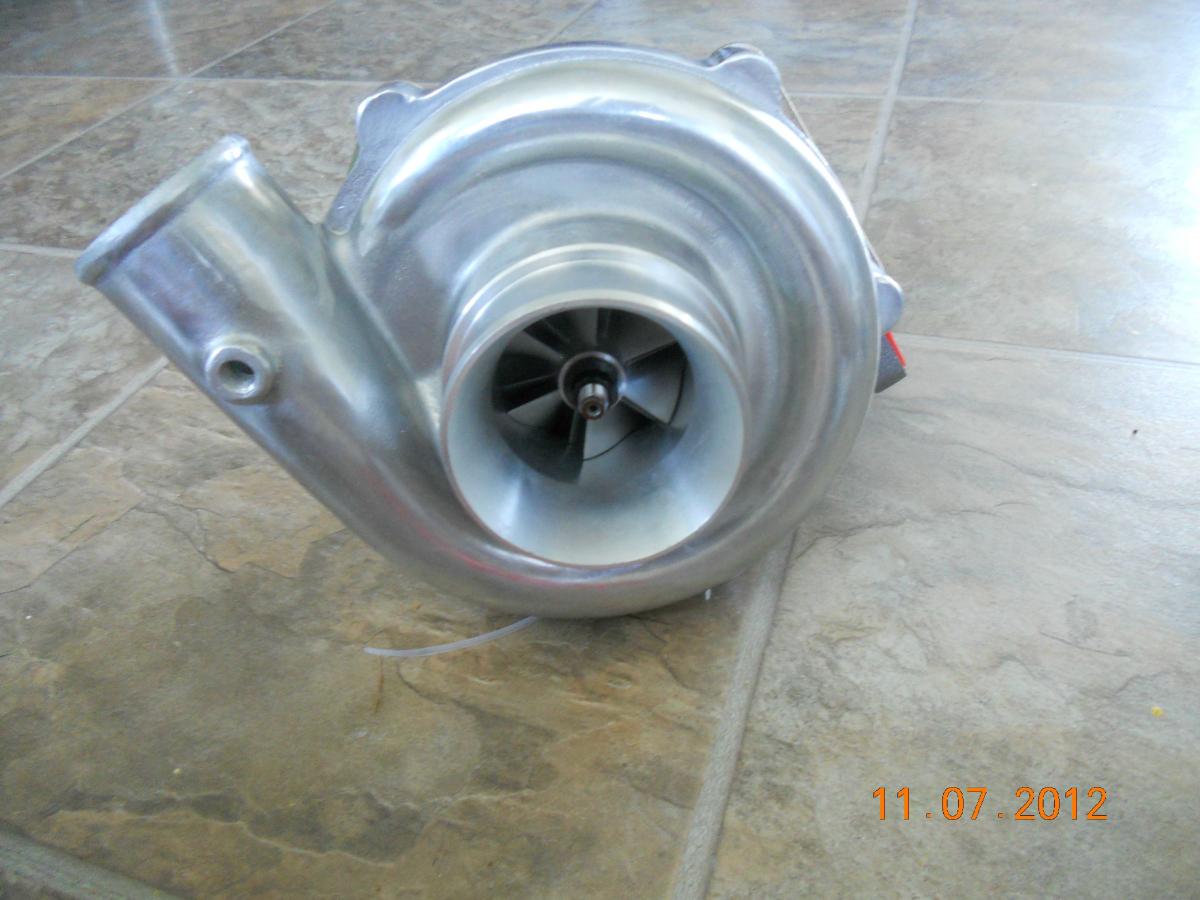

there some pic of when i got them and over both engine.


































that's all for now.

if you have question i will answer
Attached Thumbnails my turbo project started !-scguo.jpg   my turbo project started !-vjum1.jpg   my turbo project started !-flnwe.jpg   my turbo project started !-jgedv.jpg   my turbo project started !-abwdu.jpg

my turbo project started !-vfv2g.jpg   my turbo project started !-kzpwg.jpg   my turbo project started !-1ni0g.jpg
HyundaiTuner is offline
Old 07-14-2012, 07:18 AM
  #2
0.0 BAR

Join Date: Jul 2012
Location: USA
Posts: 1
Default Window Shades NYC

Here at Stuart's Home Fashion you will be able to find a wide variety of window products that will spice up your windows, including Window Shades, Window Blinds, Window Shutters, Window Drapes and more. Our professional staff will help you with window cleaning, window decorating, privacy, light control, energy efficiency, child safety, and operation. View our large display of items that will allow you to arrive at the perfect choice for your own home. Check out our specials page for our current discounts.
Window Treatments NYC | Window Blinds NYC | Window Shutters NYC
Khusiyes is offline
Old 07-16-2012, 01:41 PM
  #3
~ SITE SPONSOR ~

Join Date: Feb 2012
Posts: 390
Default

You're going to want some way to retard the timing - I wouldn't use a stock timing curve at 8 psi, especially on a motor where there's nothing mechanical that offers easy timing adjustment.
Matt Cramer is offline
Old 07-16-2012, 03:37 PM
  #4
0.0 BAR
Thread Starter

Join Date: Jul 2012
Posts: 25
Default

Originally Posted by Matt Cramer View Post
You're going to want some way to retard the timing - I wouldn't use a stock timing curve at 8 psi, especially on a motor where there's nothing mechanical that offers easy timing adjustment.
those engine timing is automatic.
for timing it is ok for 10-11 psi.


thanks for the advice anyway
HyundaiTuner is offline
Old 07-22-2012, 07:59 PM
  #5
0.5 BAR

Join Date: Jan 2012
Posts: 68
Default

Im interested to see how your going to tune the ecm fueling spark. I see the FMU but no spark retard? Boost is addictive...lol
fasteddi is offline
Old 07-22-2012, 09:26 PM
  #6
0.0 BAR
Thread Starter

Join Date: Jul 2012
Posts: 25
Default

Originally Posted by fasteddi View Post
Im interested to see how your going to tune the ecm fueling spark. I see the FMU but no spark retard? Boost is addictive...lol
spark retard = timing.
timing = automatic on those engine.
it can adjust itself.
as i will running 8 psi i don't need to touch this.
not the best , sure , but work without big risk.
if i was running 10+ psi , well , thats another story !
HyundaiTuner is offline
Old 08-01-2012, 11:33 AM
  #7
0.0 BAR

Join Date: Oct 2005
Posts: 14
Default

Yes I would be interested in this as well...

Forget running more than a few psi (5-6) without some form of control, intercooling, cool burning fuel (E85) or water injection; In summer heat or a bad tank of fuel under boost could be disastrous.

Of course you can drown your combustion chamber with fuel to keep combustion temperatures down (and spark knock), but it will not run as well as it should.

It befuddles me, its not bad to be cheap, but to be cheap for cheap sake Especially with cars, I am sure you don't like down time. There is no off the shelf tuning solution specifically for older Hyundai's, but you can pick up old blue Greddy Emanage fairly cheap, I see them for under $150 on Ebay all the time.

I'm fairly sure Accent's are Speed Density. Sure the engine will pull timing (and power) when it detects knock. The POINT WE'RE MAKING is you don't have to knock and still get the power you desire.

As the saying goes, cheap + fast seldom go together.

Most people have seen knock at anything above 5-6psi on formerly N/A cars without any intercooler and no way to control spark. This engine is 10:1 out of the factory, you have basically two choices.

Drop the compression ratio which I'm not totally in favor of, but its quick and dirty especially if you can stack head gaskets or buy a thicker one.

Run an intercooler, it can be cheap, like a side mount from a 1G DSM.

You're fuel will be all over the place and there is no disputing that. You'll be leaving who knows how much on the table because you either can't or won't spend more for a proper tuning solution.

Good luck, I've seen a few turbocharged, even a twin-charged Accent...

Last edited by dj4monie; 08-01-2012 at 11:38 AM.
dj4monie is offline
Old 08-01-2012, 03:07 PM
  #8
0.0 BAR
Thread Starter

Join Date: Jul 2012
Posts: 25
Default

Originally Posted by dj4monie View Post
Yes I would be interested in this as well...

Forget running more than a few psi (5-6) without some form of control, intercooling, cool burning fuel (E85) or water injection; In summer heat or a bad tank of fuel under boost could be disastrous.

Of course you can drown your combustion chamber with fuel to keep combustion temperatures down (and spark knock), but it will not run as well as it should.

It befuddles me, its not bad to be cheap, but to be cheap for cheap sake Especially with cars, I am sure you don't like down time. There is no off the shelf tuning solution specifically for older Hyundai's, but you can pick up old blue Greddy Emanage fairly cheap, I see them for under $150 on Ebay all the time.

I'm fairly sure Accent's are Speed Density. Sure the engine will pull timing (and power) when it detects knock. The POINT WE'RE MAKING is you don't have to knock and still get the power you desire.

As the saying goes, cheap + fast seldom go together.

Most people have seen knock at anything above 5-6psi on formerly N/A cars without any intercooler and no way to control spark. This engine is 10:1 out of the factory, you have basically two choices.

Drop the compression ratio which I'm not totally in favor of, but its quick and dirty especially if you can stack head gaskets or buy a thicker one.

Run an intercooler, it can be cheap, like a side mount from a 1G DSM.

You're fuel will be all over the place and there is no disputing that. You'll be leaving who knows how much on the table because you either can't or won't spend more for a proper tuning solution.

Good luck, I've seen a few turbocharged, even a twin-charged Accent...
thank for your advice.

it will have a intercooler and FMU wich every shop told me its OK for that setup ( 8 psi , can handle 10 but will not work as for 8 ).

for summer heat.... the final setup will be funning when it will be around 15C outdoor.

i know the engine will blow... but may blow after i get rid of. i dont plan to run it after this winter and this is why i go cheaper as possible.

my futur car , a 2003 elantra GT i will put QUALITY parts ( only a china charger maybe because i know what to do ) with SMT-6 and everything

for a small update... im selling those 2 monster turbo because i ordered .50ar comp/.48AR turbine but they shipped MONSTER .70AR comp/.63AR turbine.
cost 420 i ask 250 for both or 150 each. they are both NEW only one spooled 2 mintue for a fast test , when i discoverer the mistake they did.

i just ordered CXRACING ( reputed ) T28 turbo .42AR comp/.48AR turbine.
i will update when i receive them with pic.
HyundaiTuner is offline
Old 09-01-2012, 01:20 AM
  #9
0.0 BAR
Thread Starter

Join Date: Jul 2012
Posts: 25
Default

ok sorry for the long time without any news. like i stated before , i work and don't have lots time.

so i recieved t28 1 month ago.
3 week ago i had time to go buy some parts.
it was hard to find some parts i ran 270 km to find them... and
there some i never found so i bought something to replace and would work.

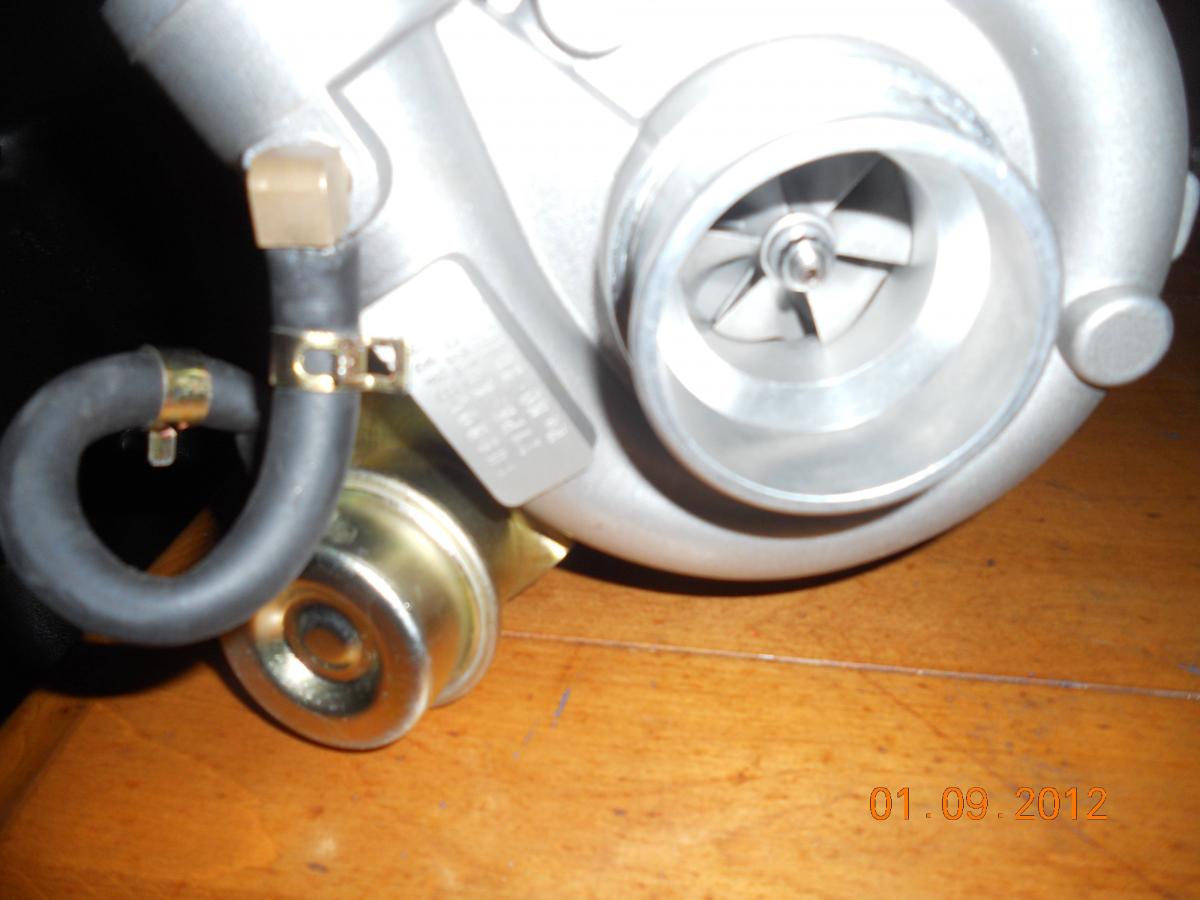

here the CX RACING T28 turbo












t25/t28 flange + studs + nuts

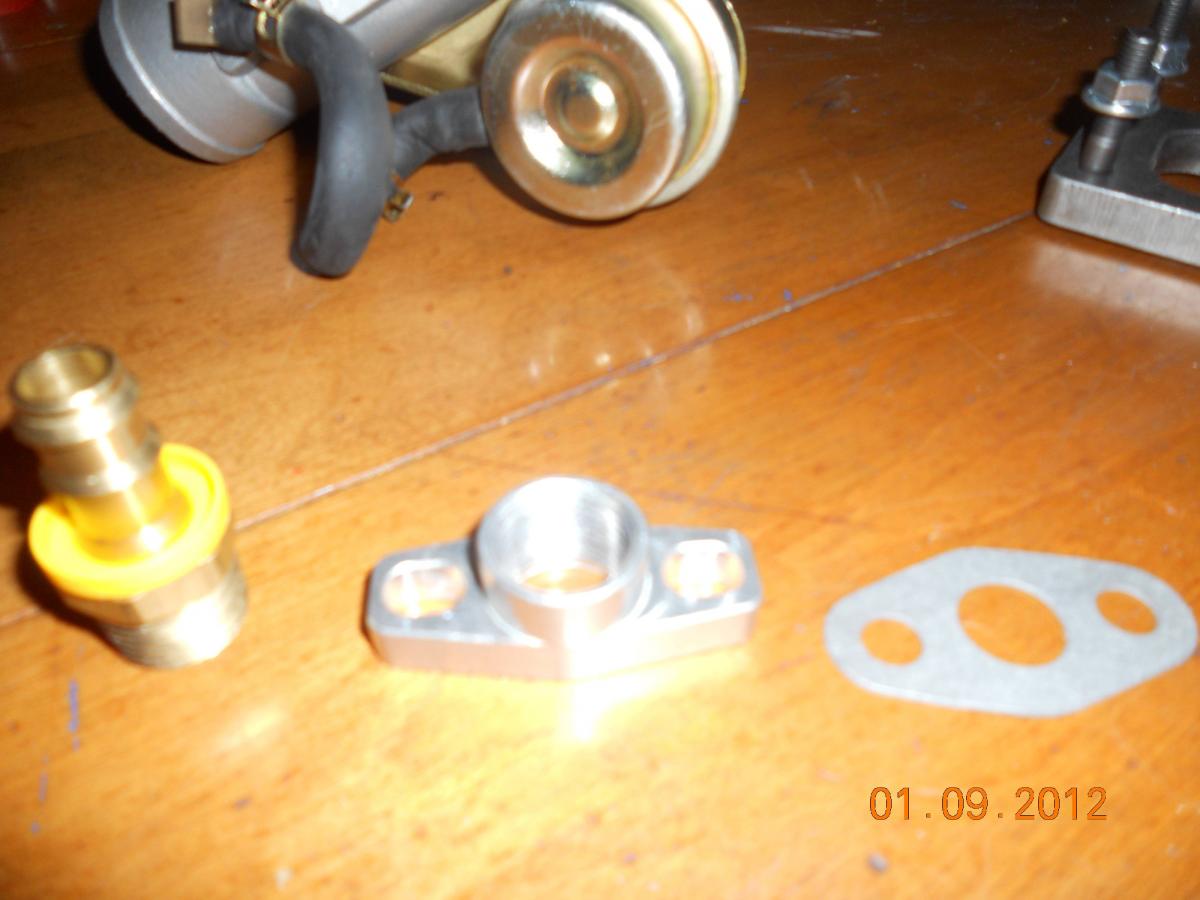

replacement parts i found because i wasnt able to find better one


oil restrictor... this ---- cost 20$ no joke proof if needed hehe

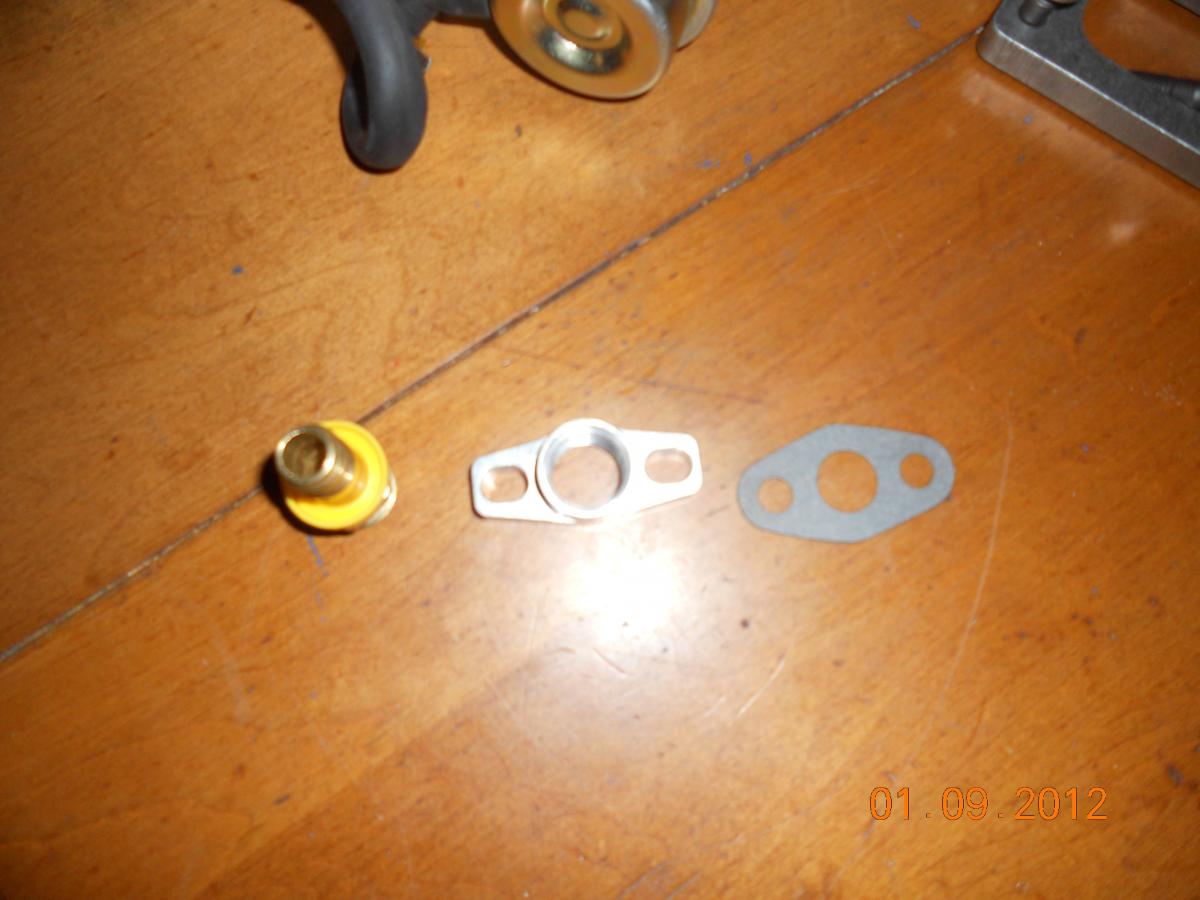

oil return flange + fitting + gasket




well thats all for now. stay tuned , more to come next week !
Attached Thumbnails my turbo project started !-mf04m.jpg   my turbo project started !-qdymc.jpg   my turbo project started !-sl1bj.jpg
HyundaiTuner is offline
Old 09-08-2012, 11:55 AM
  #10
0.0 BAR
Thread Starter

Join Date: Jul 2012
Posts: 25
Default

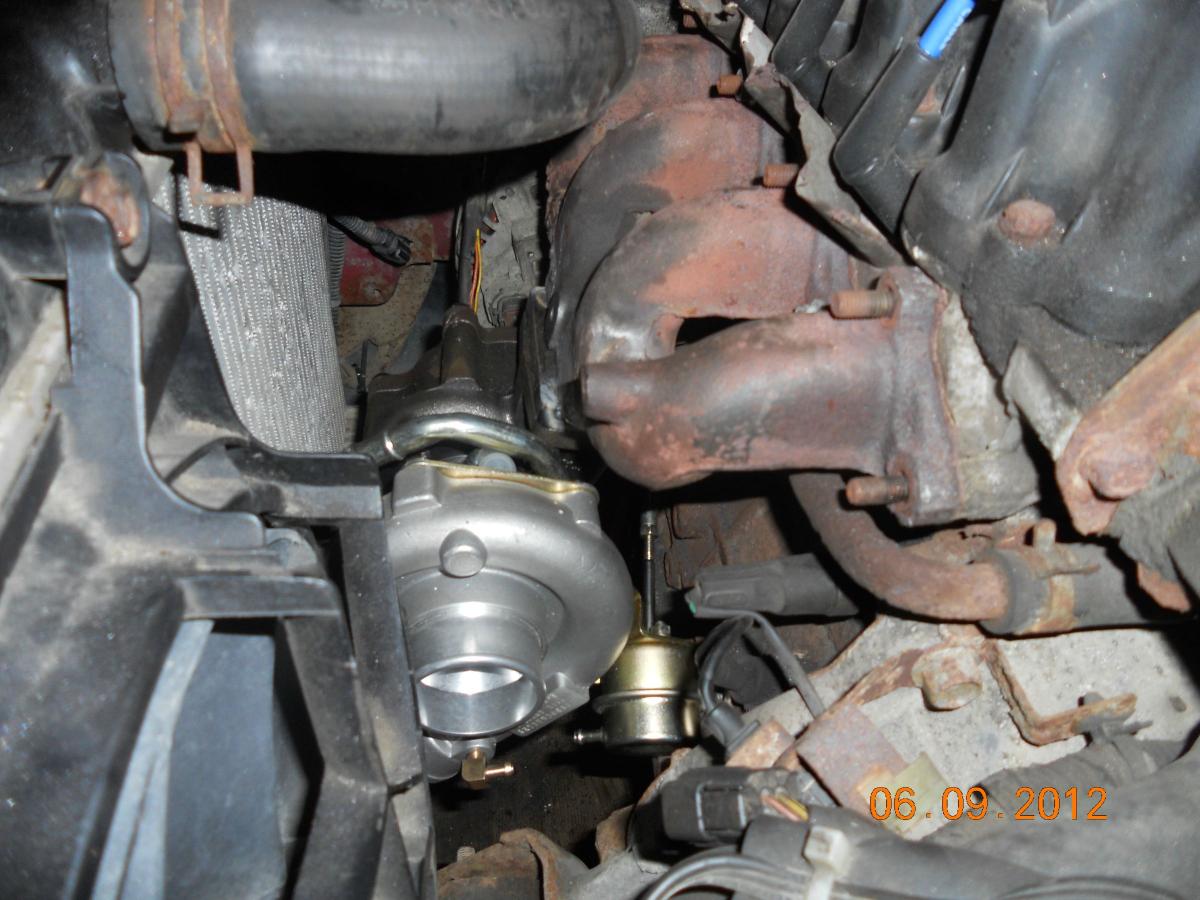

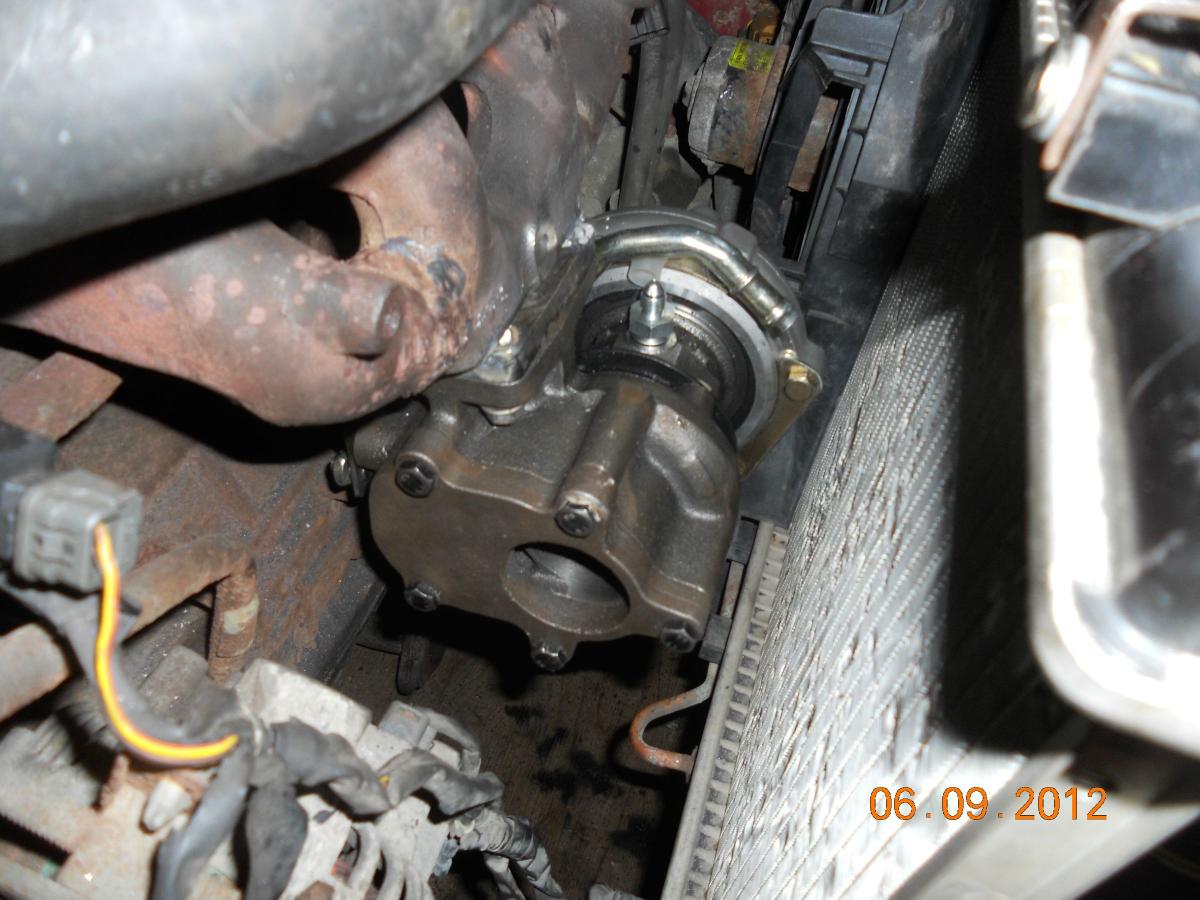

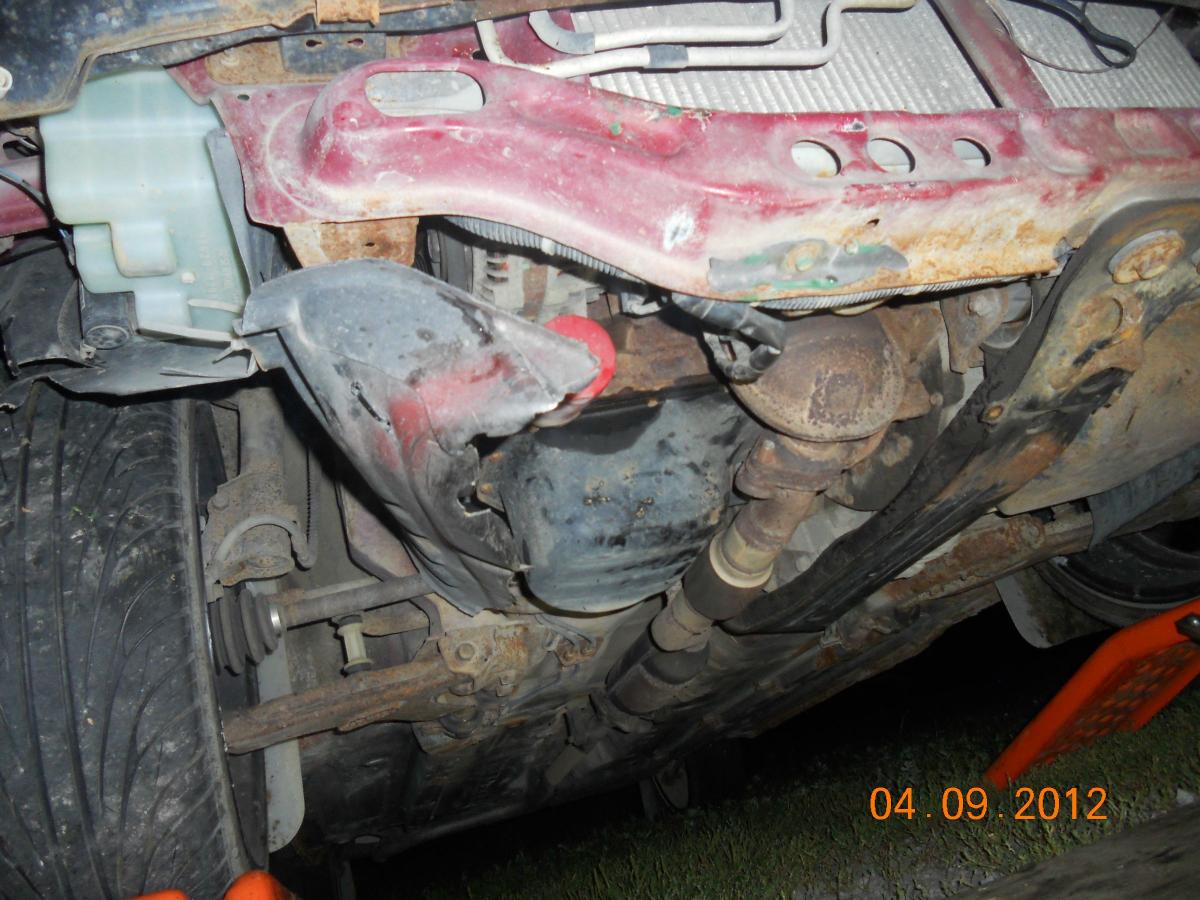

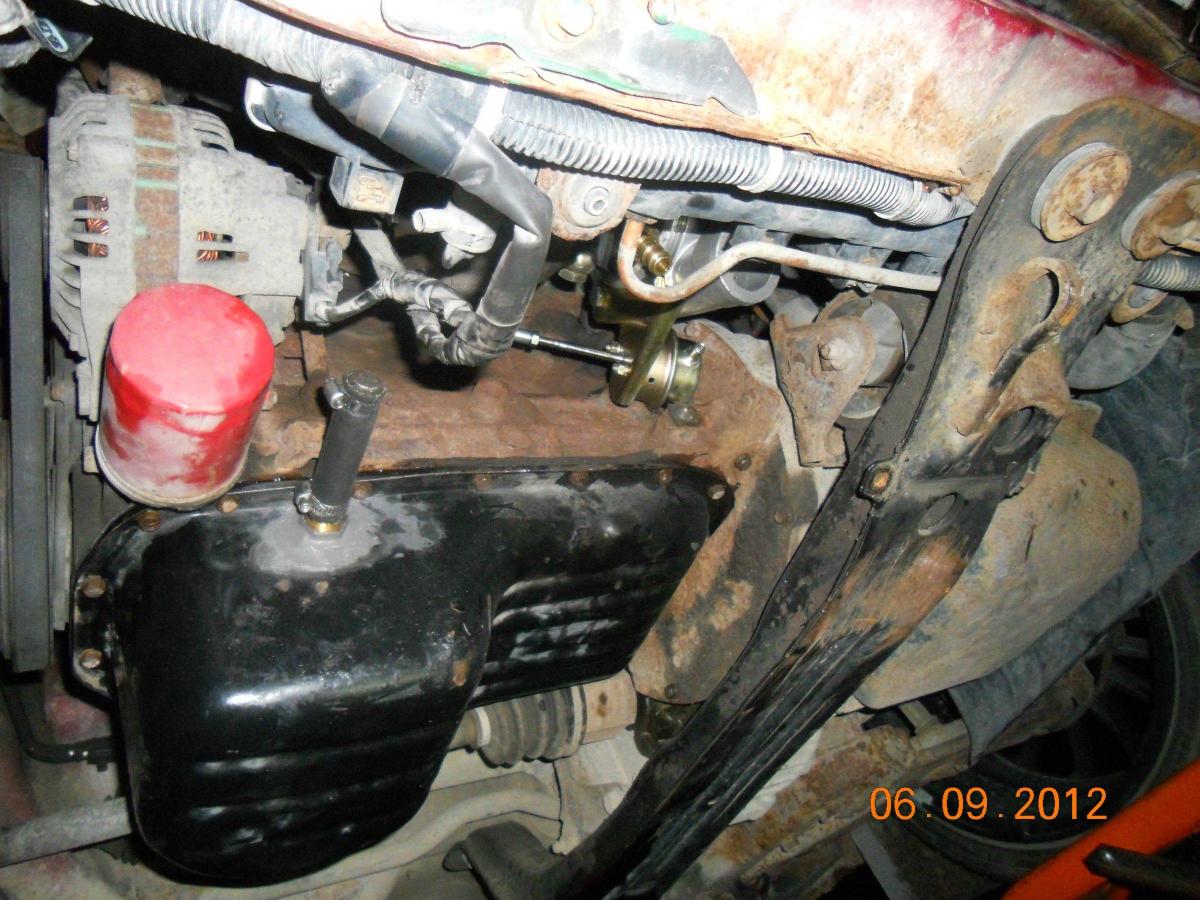

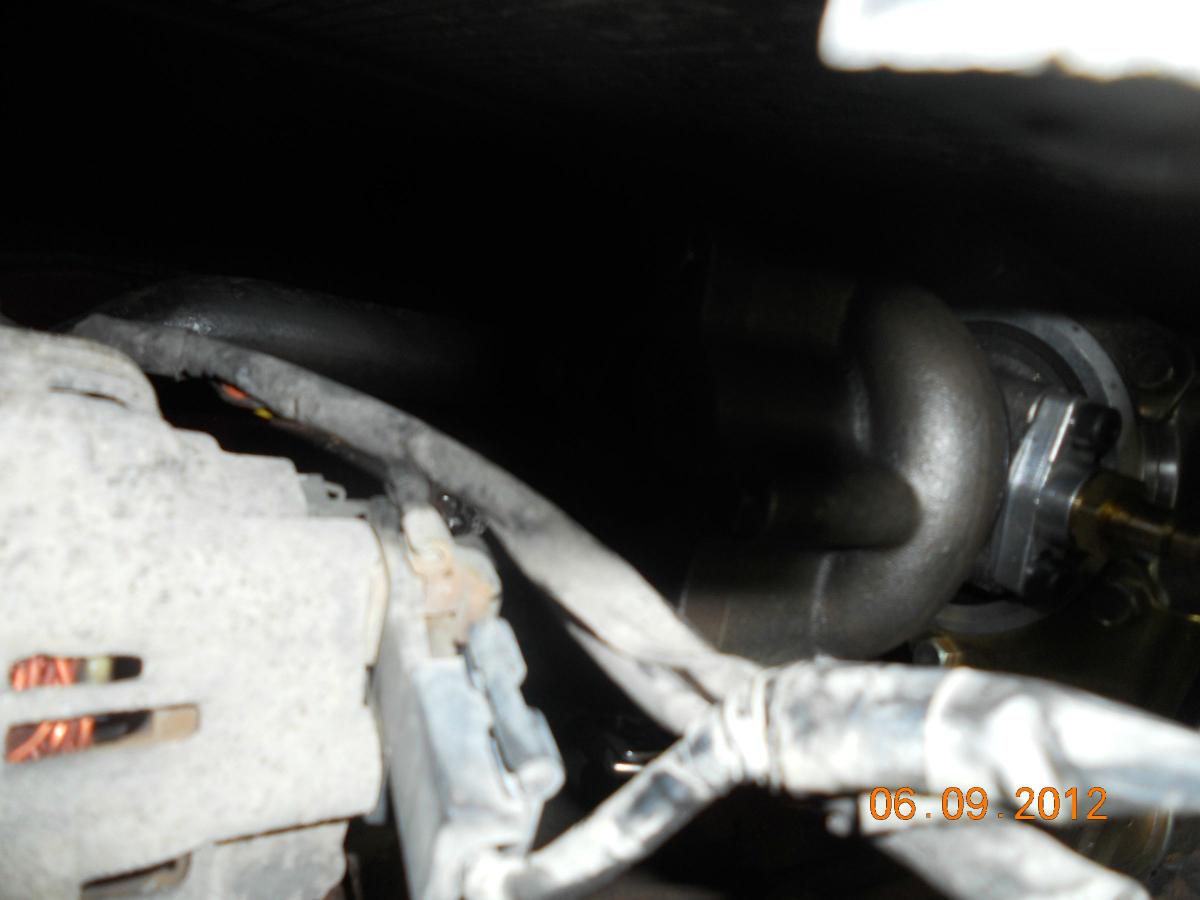

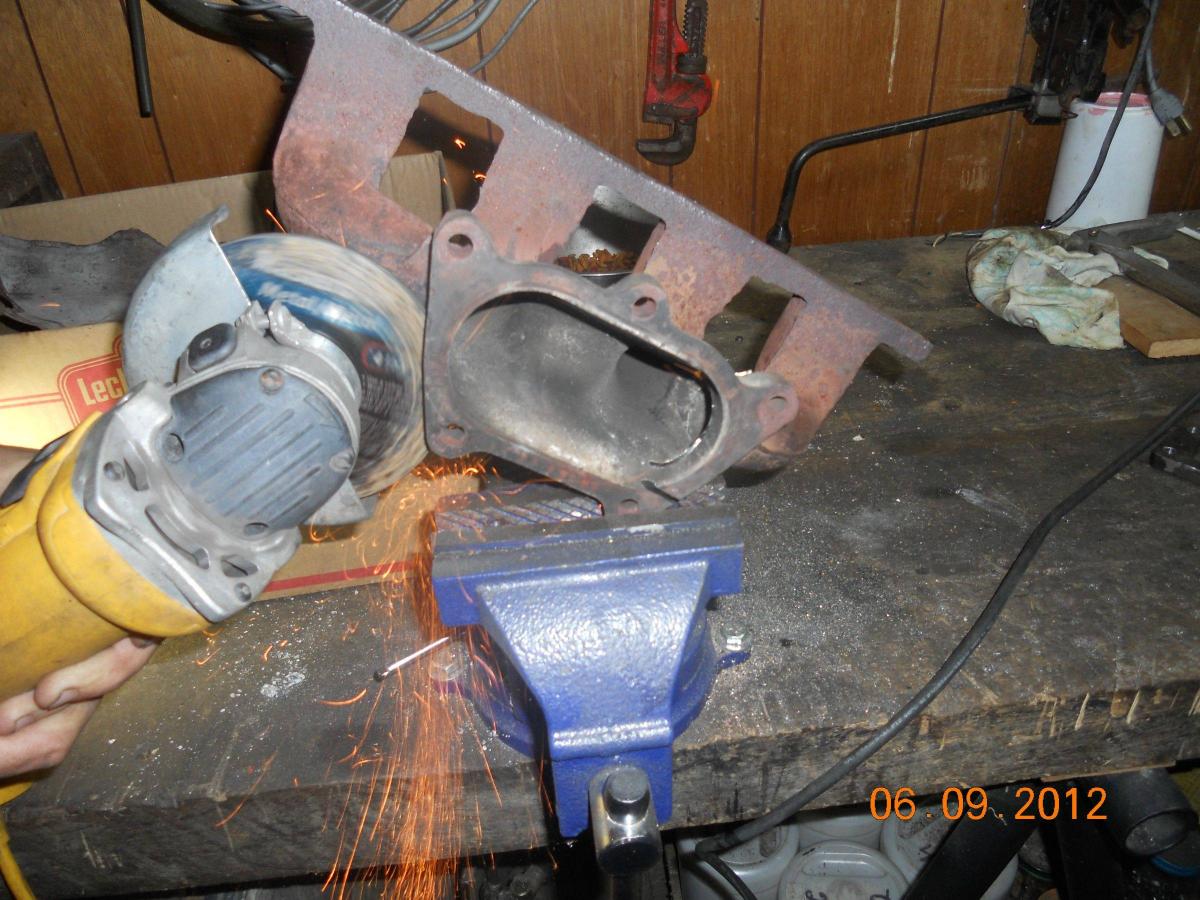

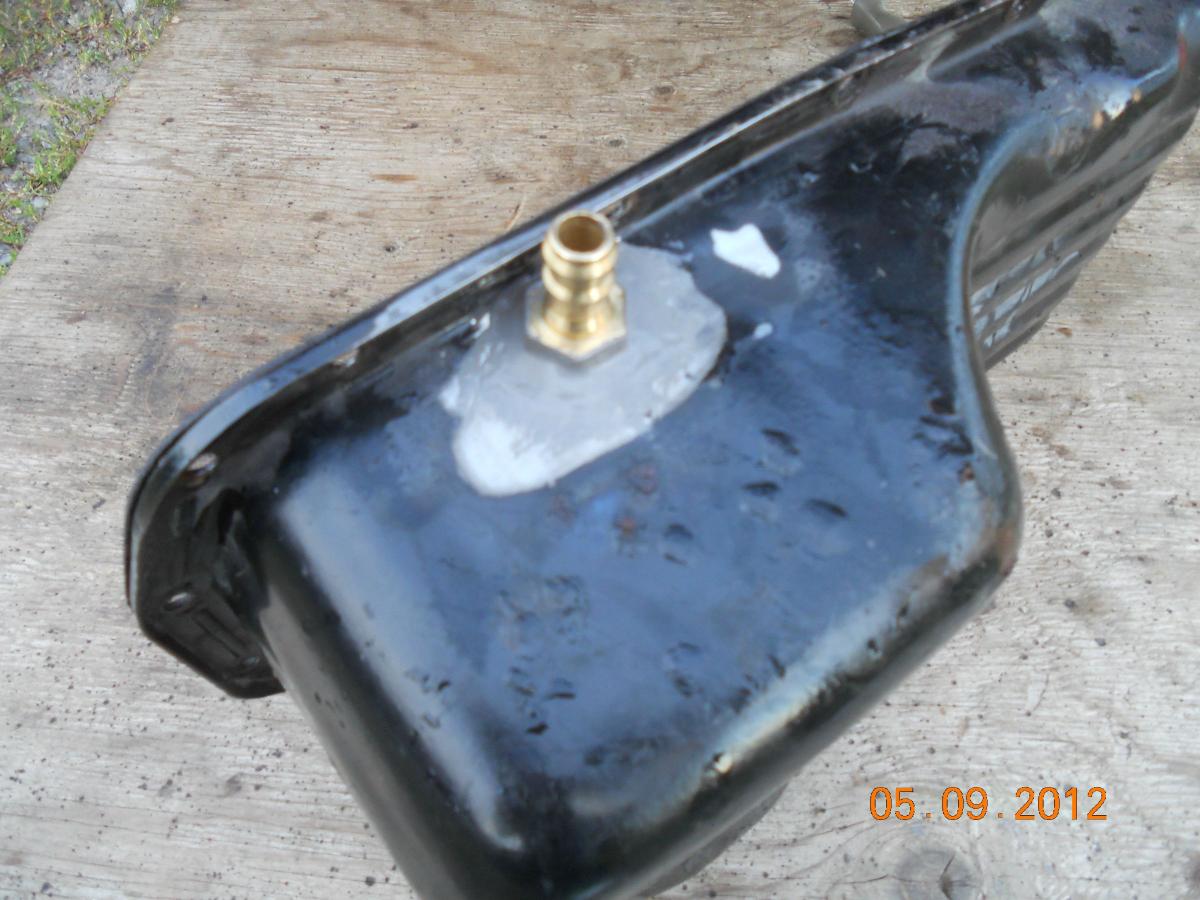

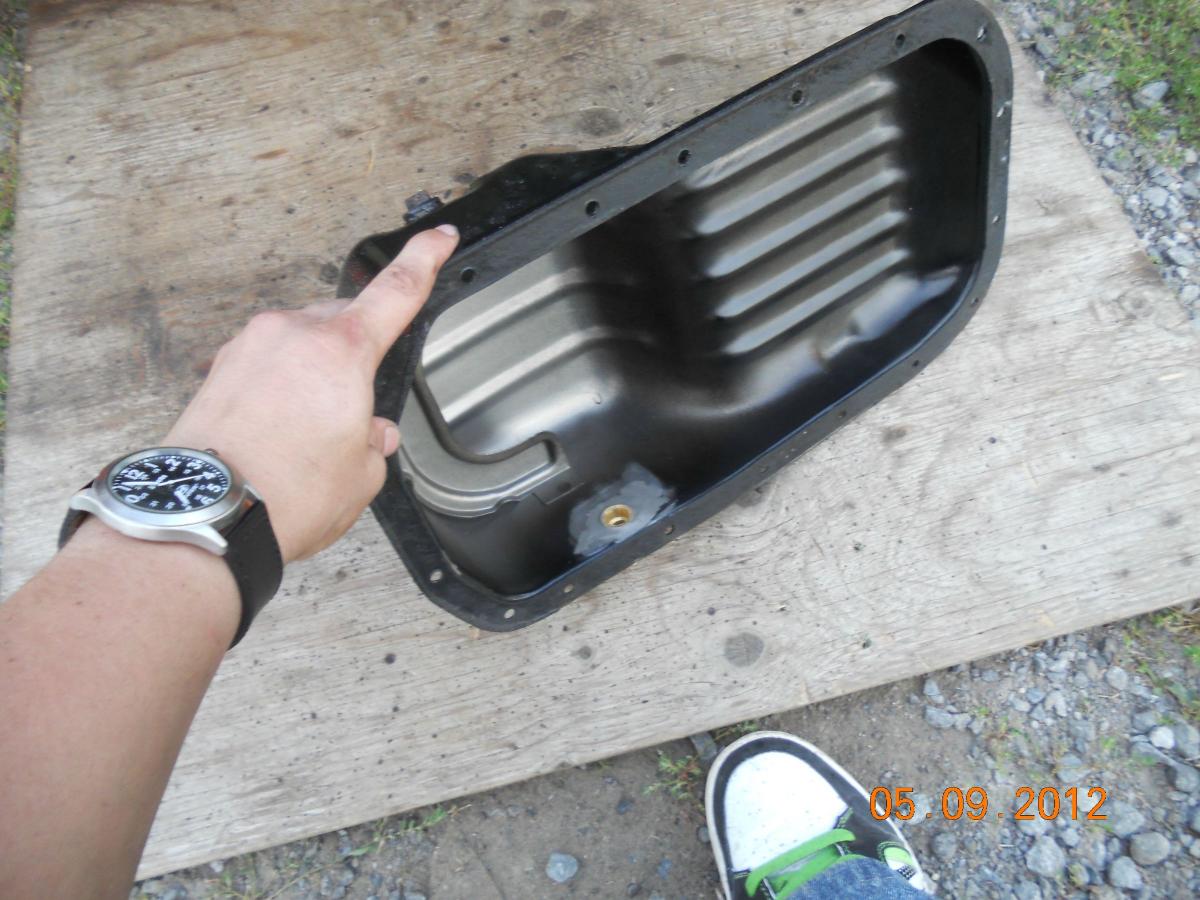

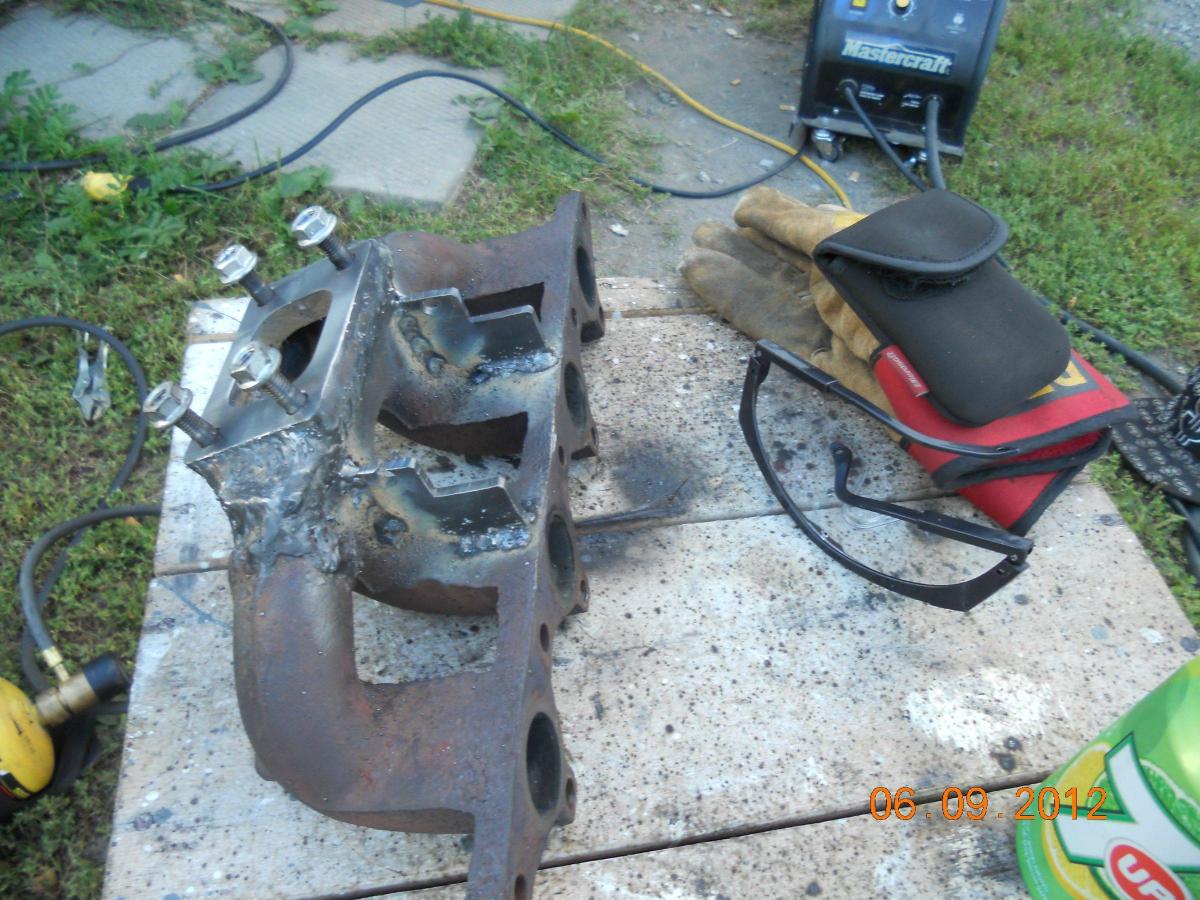

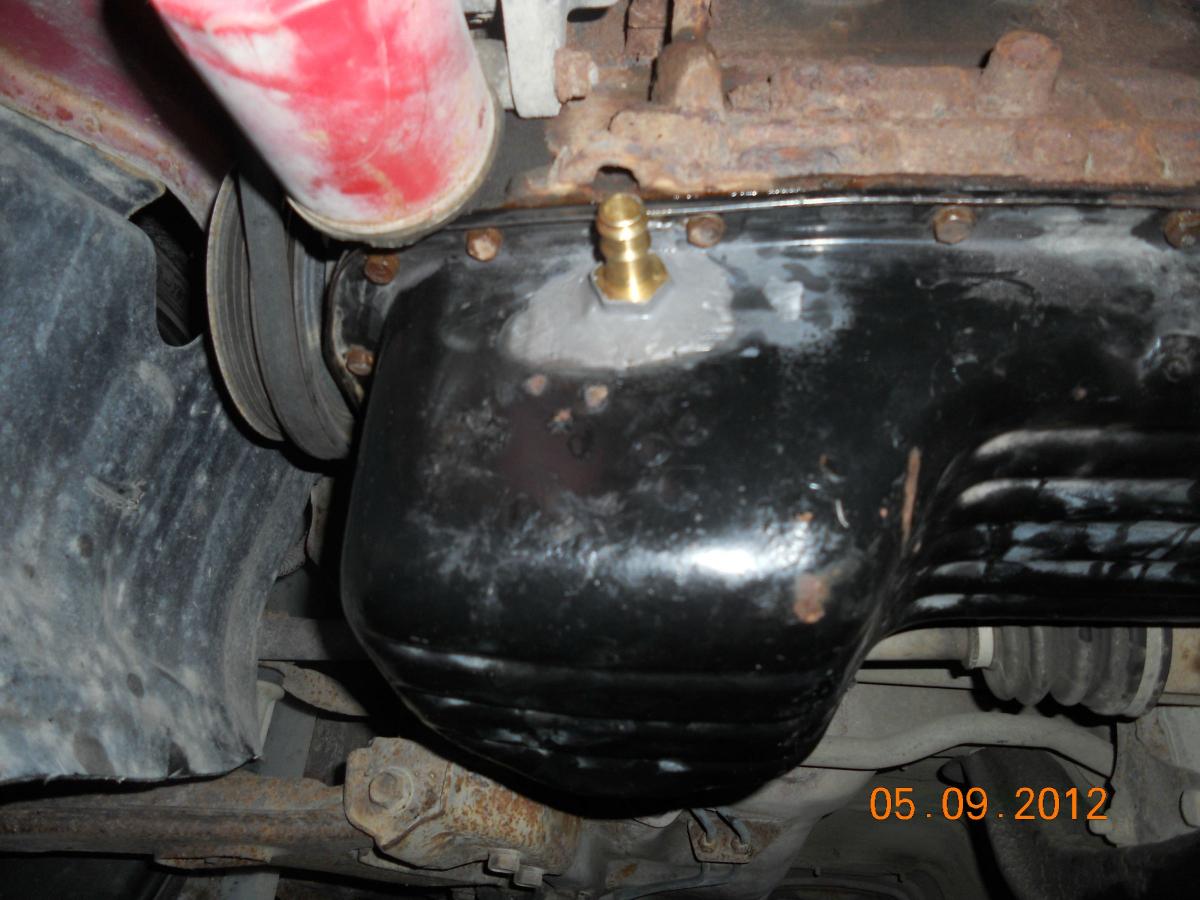

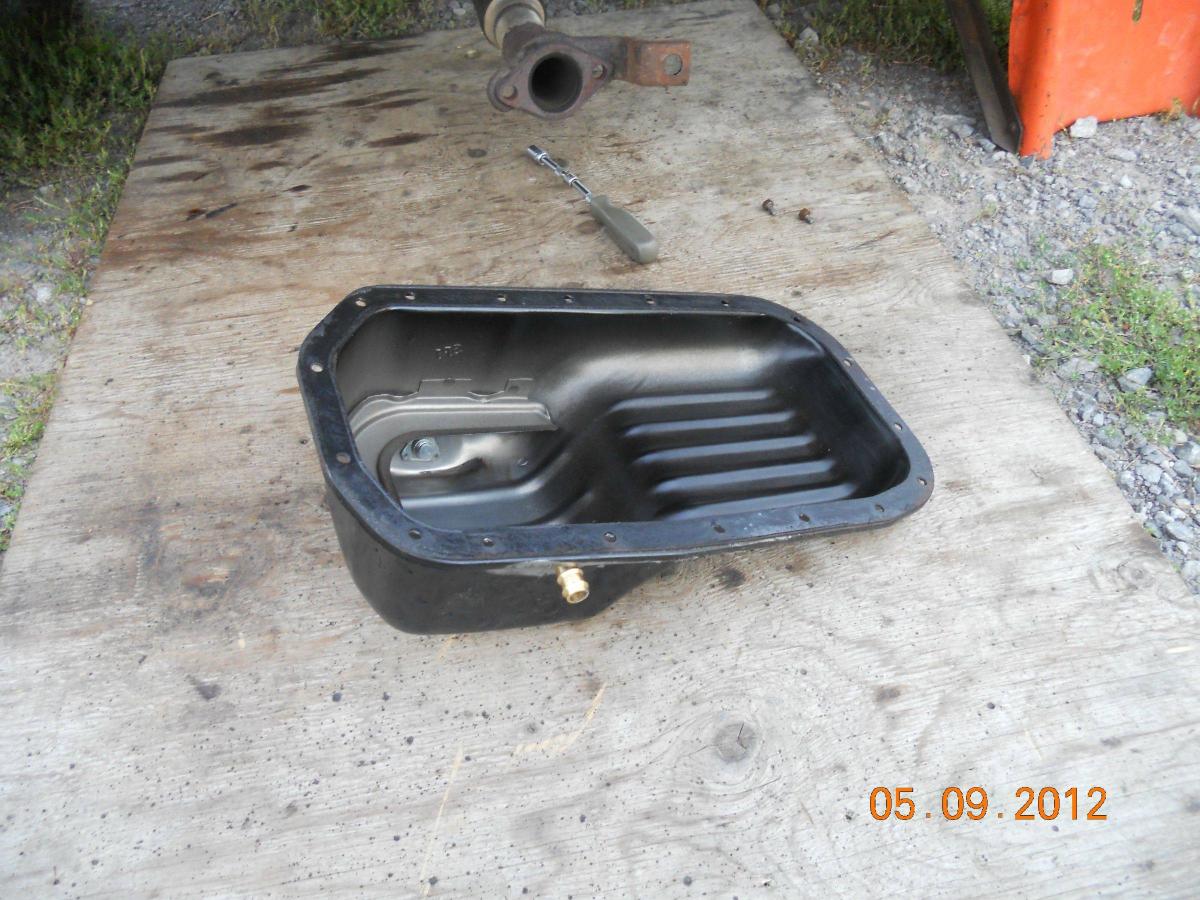

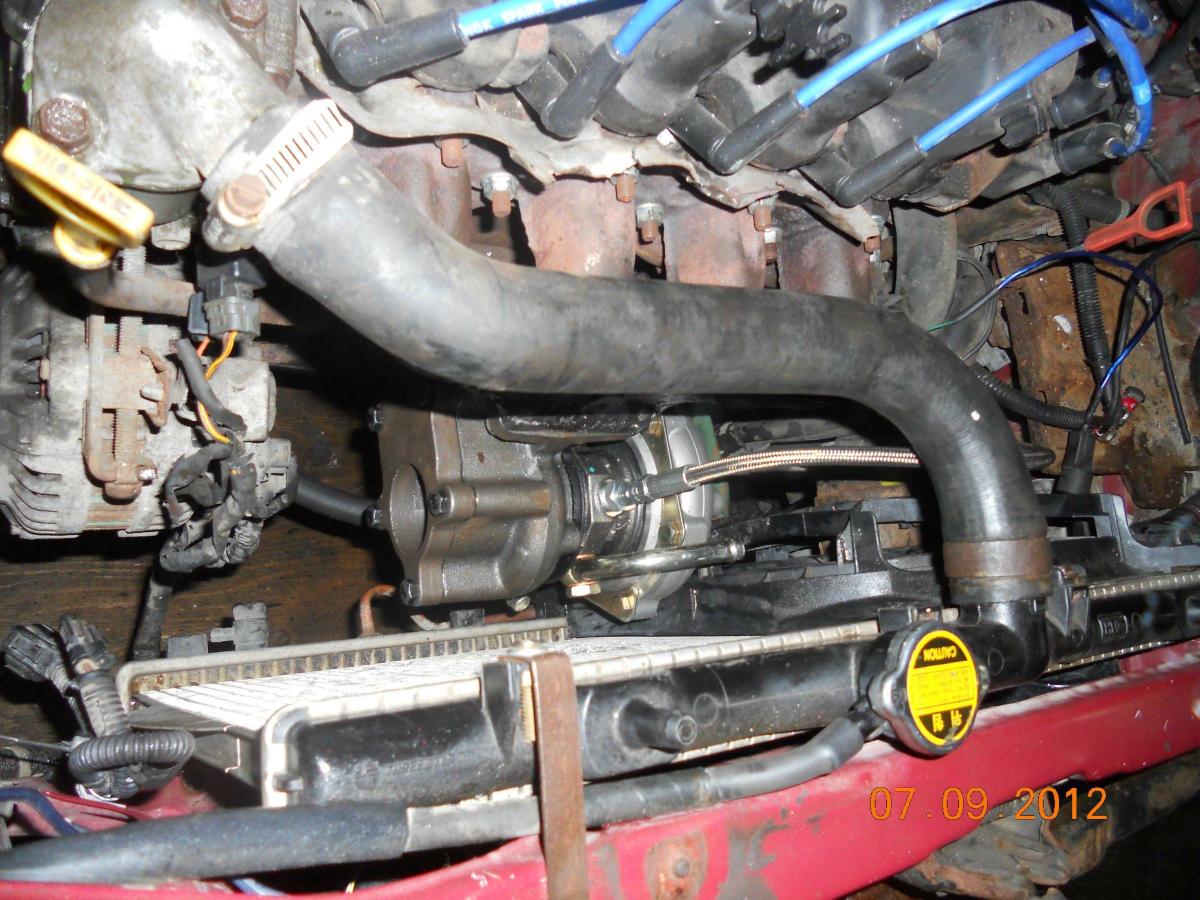

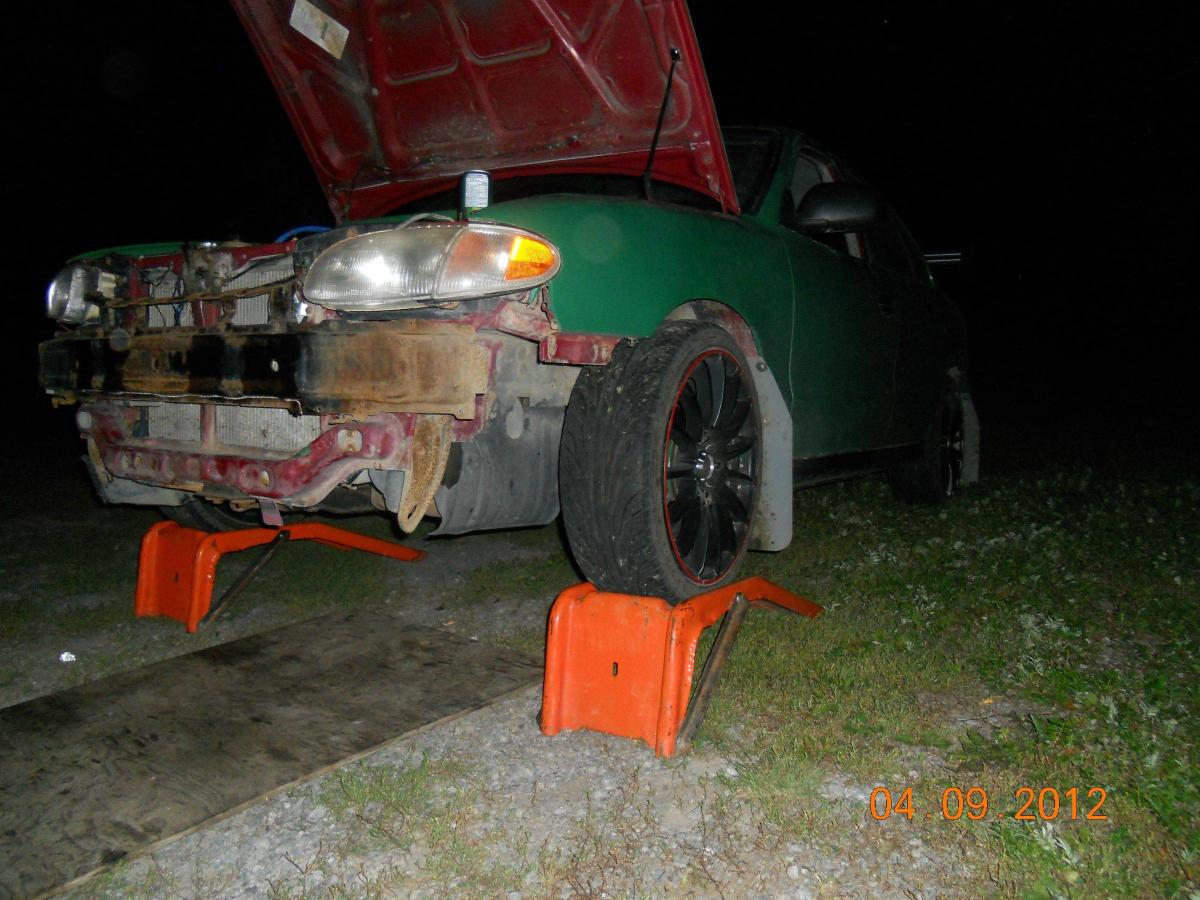

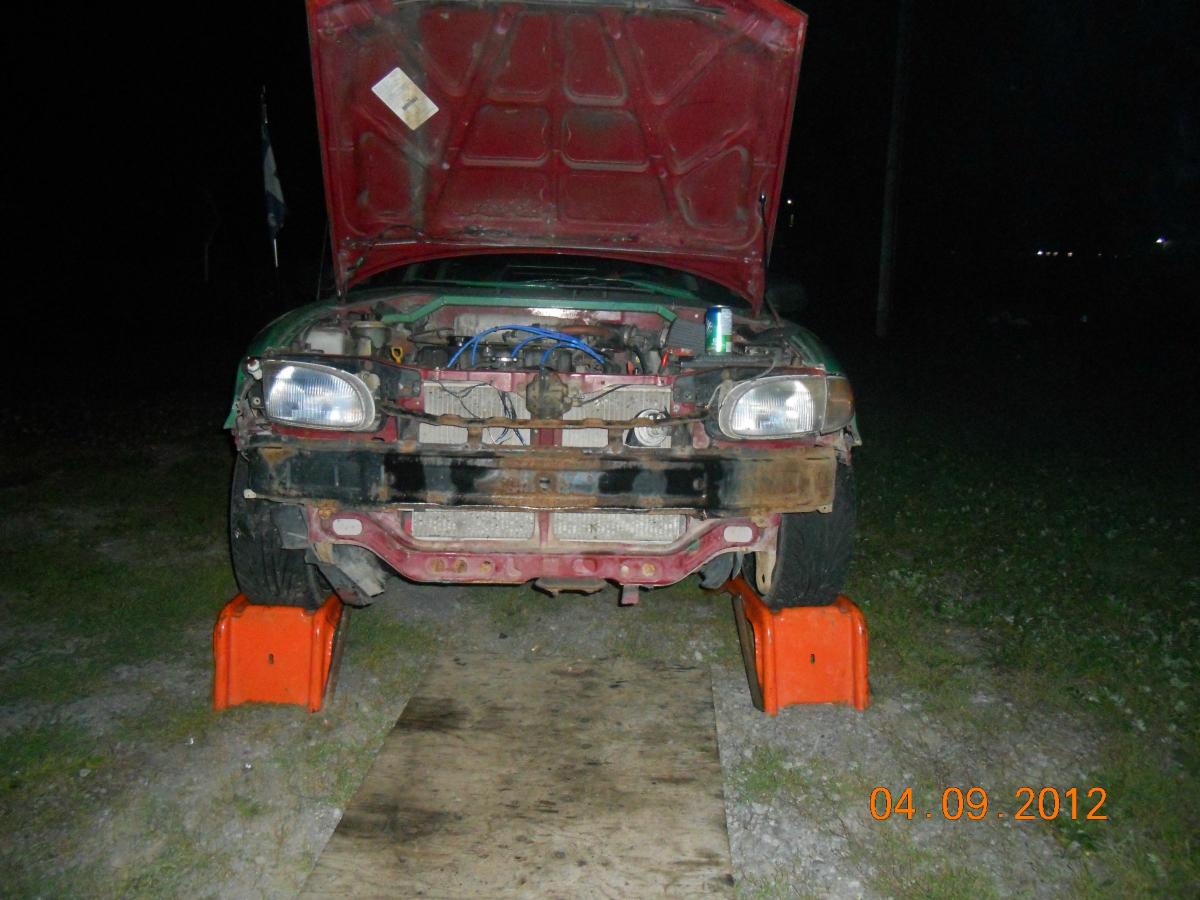

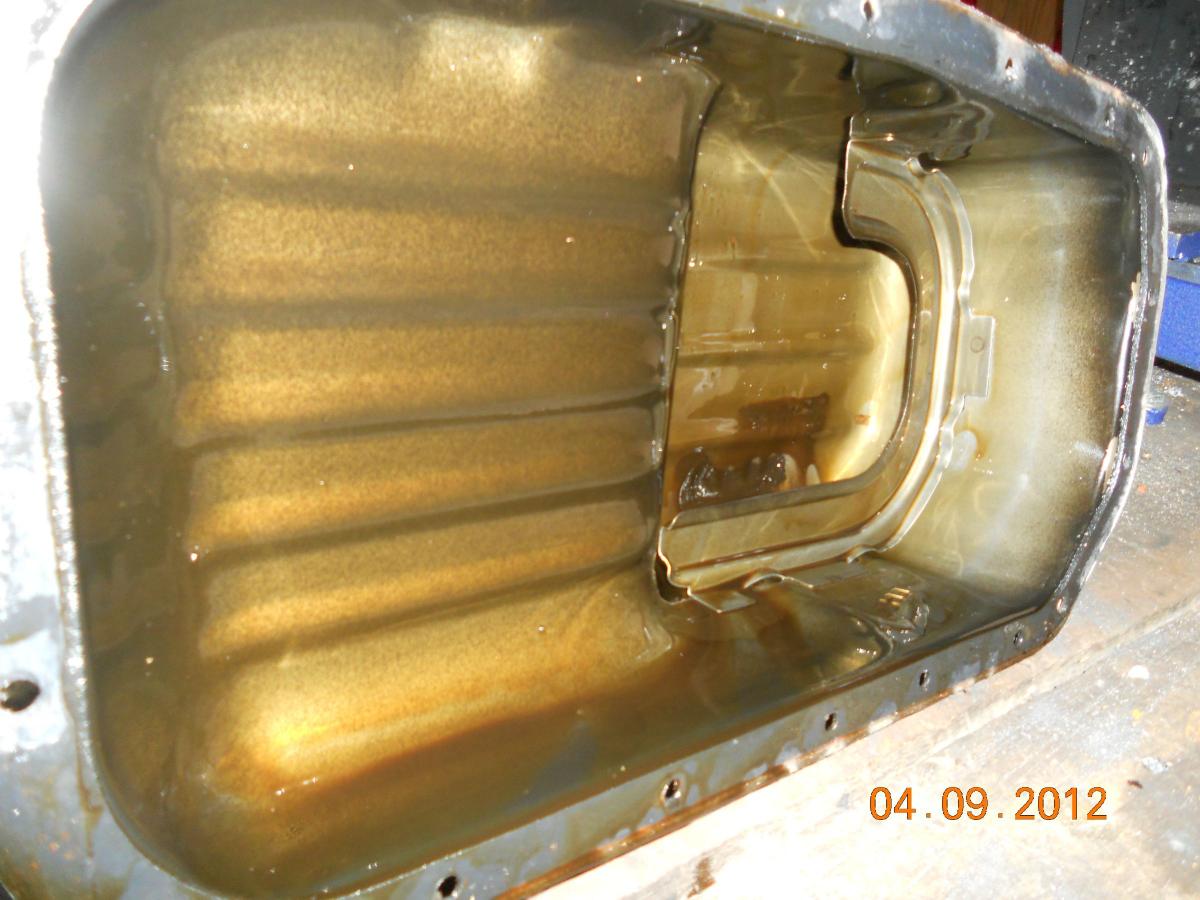

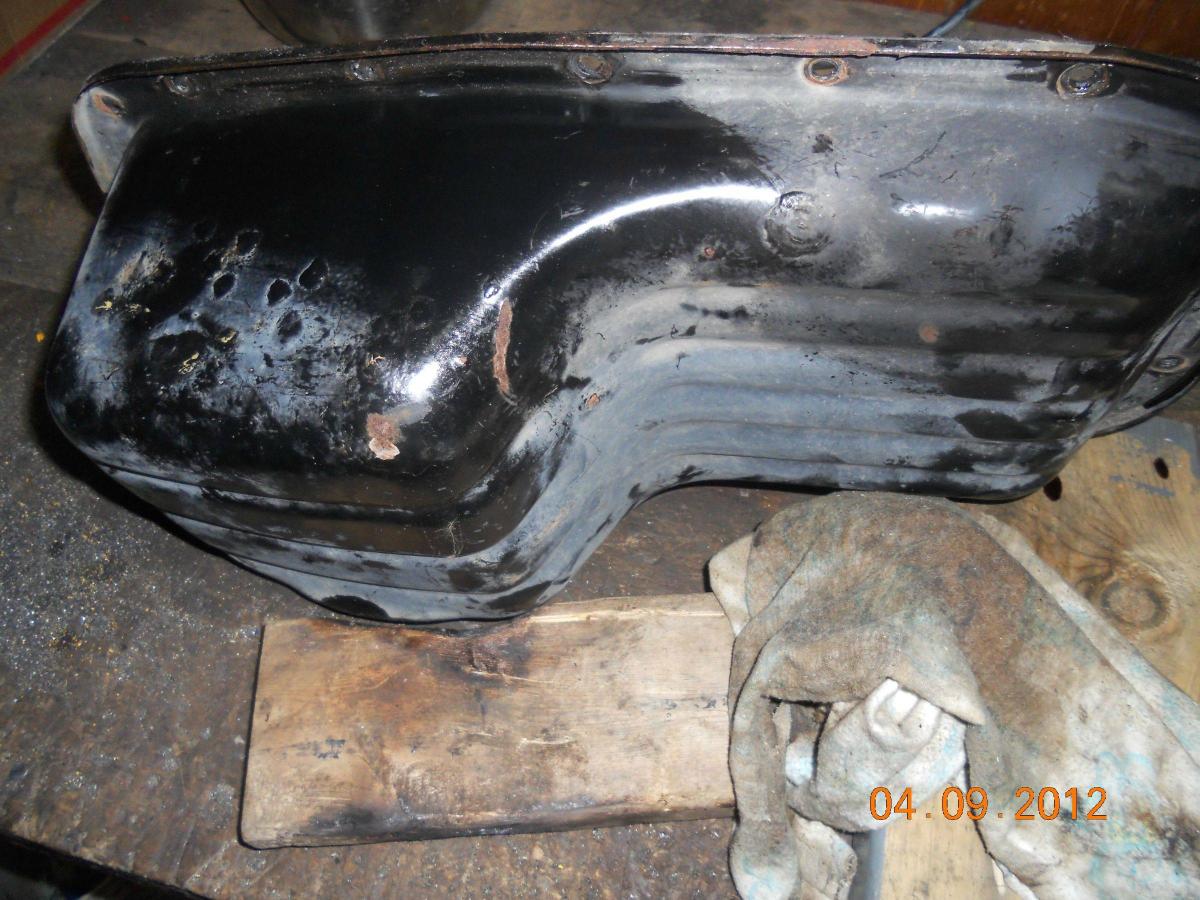

ok so here some news.
