my latest project with my car UPDATED 8-06-08
#1
my latest project with my car UPDATED 8-06-08
here is the setup from this starting point
Stock JDM D15b
STR Cast turbo manifold
Turbonetics Evolution wastegate
t3/t4 60-1 compressor t3 .63ar stage 3 turbine housing with a t4 "N" trim wheel
2.5" mandrel bent charge pipes made by me
some no name front mount that seems to be good for round 400hp
2.5" mandrel bent downpipe and complete exhaust all made by me
low boost setup DSM 450cc injectors/ CRX si resistor box, high boost setup is 650cc edge products injectors
Chipped ecu tuning with Crome
running about 9psi made around 200whp
running 30psi whp

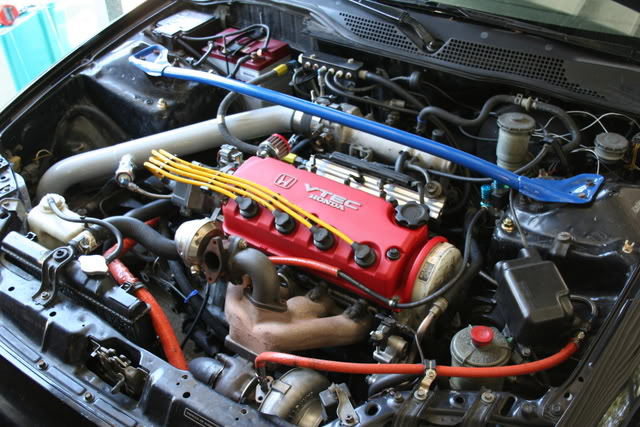

the first 3 pics are what i started with this time. the last pic in this post is how the car currently sits
Sleeper front mount

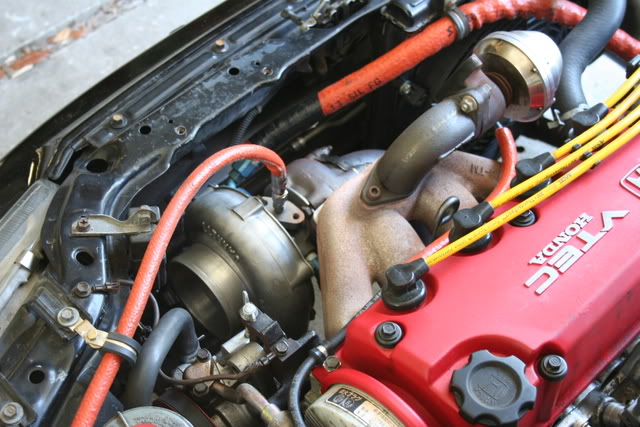

The turbo that eats babies

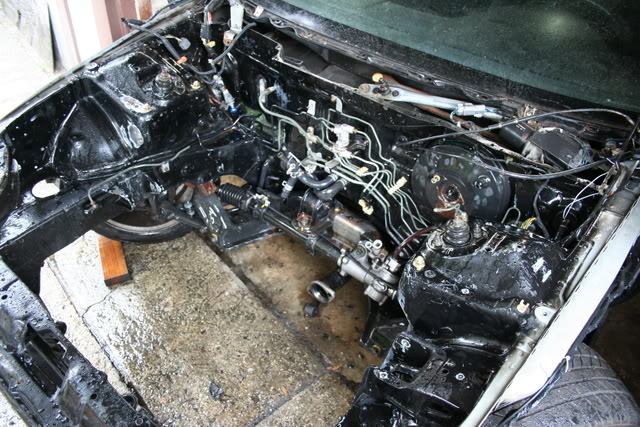

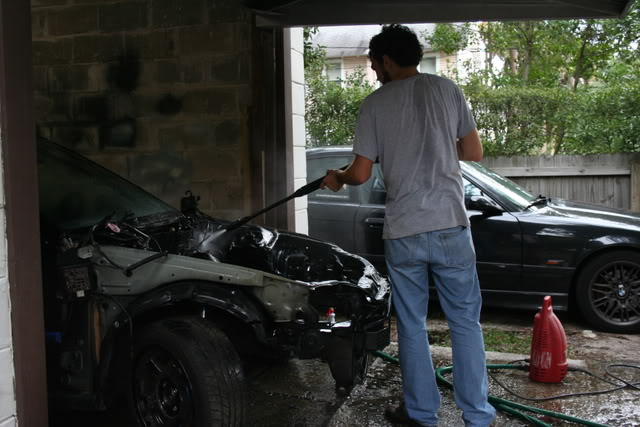

Engine is out and everything is getting pressure washed by my friend Todd. it was coming out for everything getting fully built, but i miss driving a boosted car so its in the process of being put back together. after the wedding the engine will come back out for its new parts and the tranny will get an LSD.
i dont know why Todd likes pressure washing my car so much, but who am i to stop him. lol

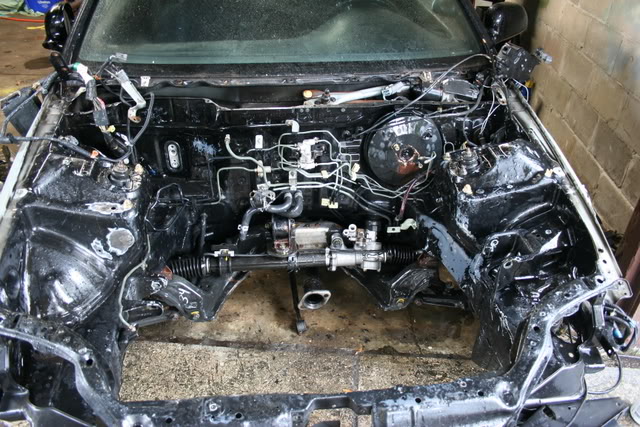

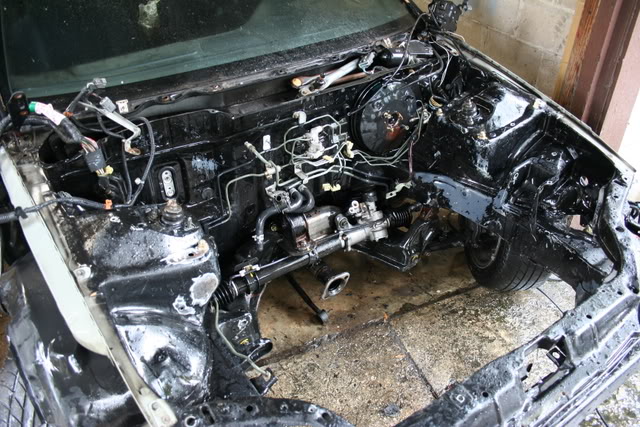

so fresh and so clean clean.

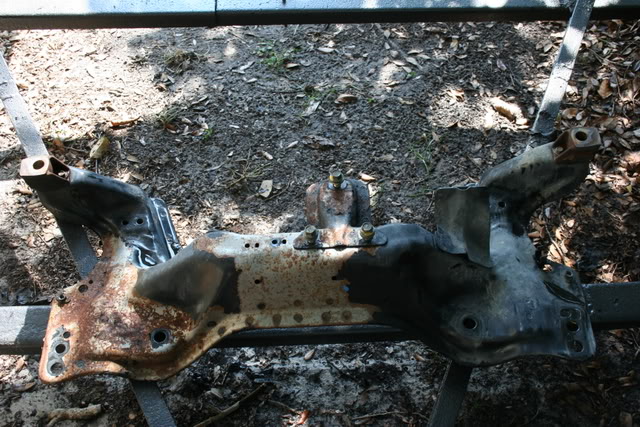

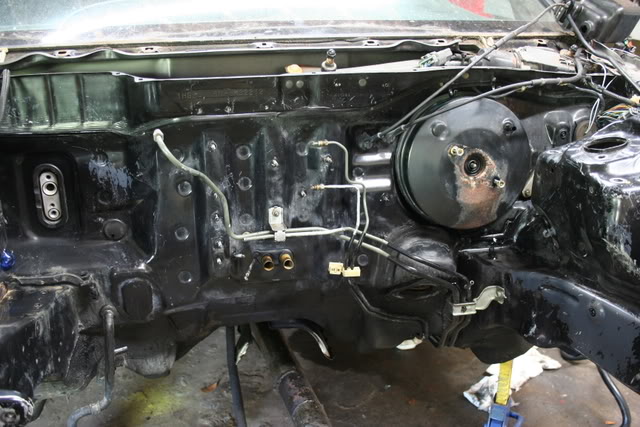

here is a little surprize given to me by a leaky proportioning valve

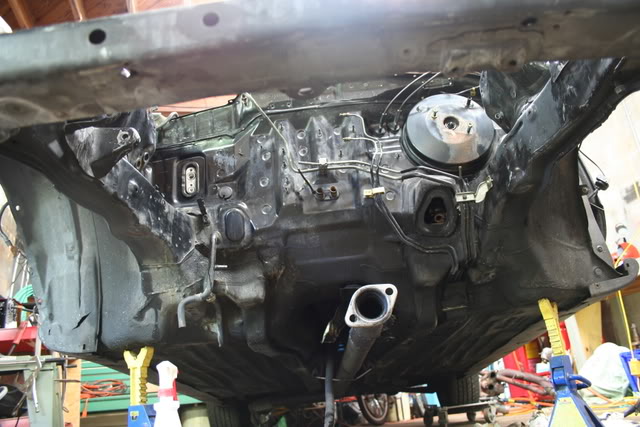

a little more disssasembly for the engine bay painting

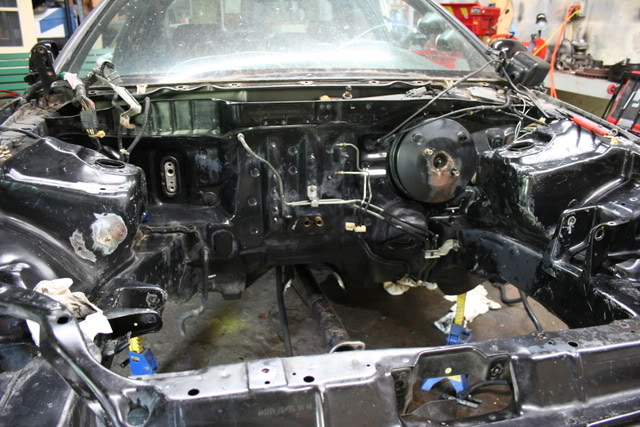

this shows just how much i stripped it

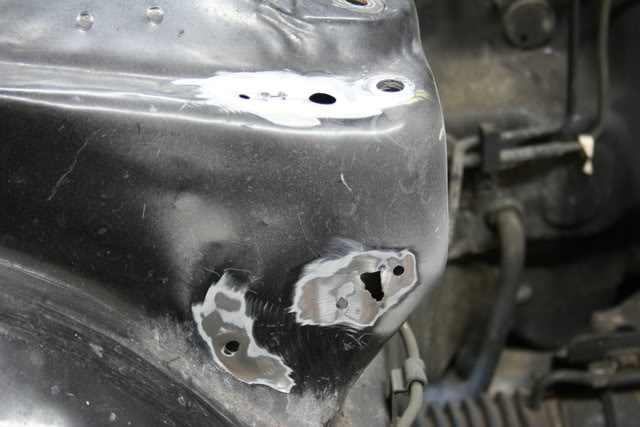

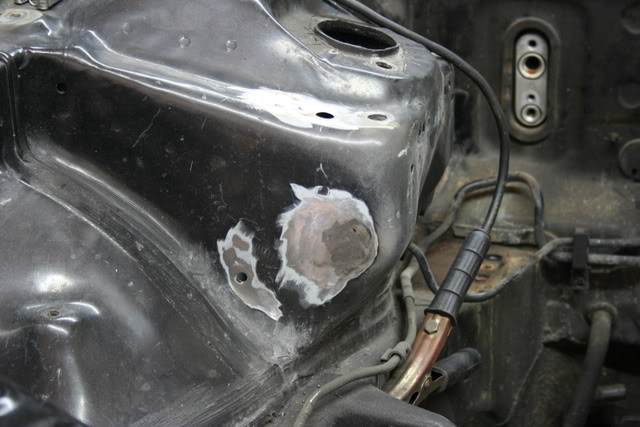

filling some holes

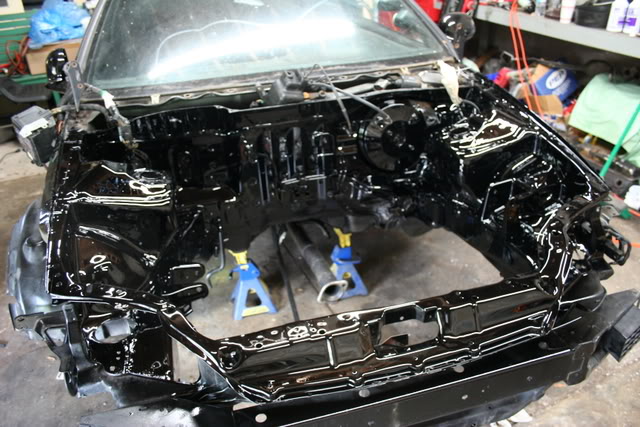

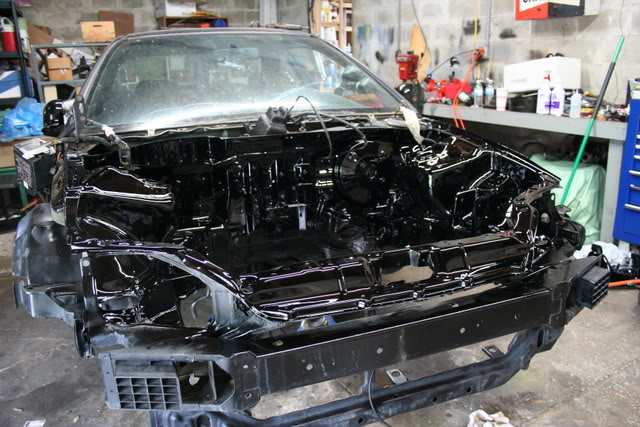

here is the painted bay. i meant to get some pics of the prep, but i forgot

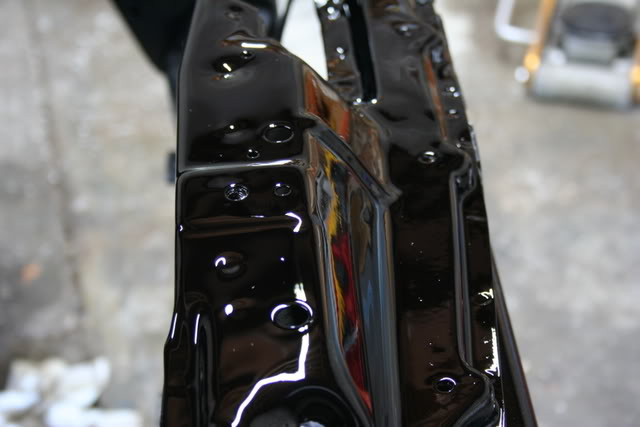

super slick

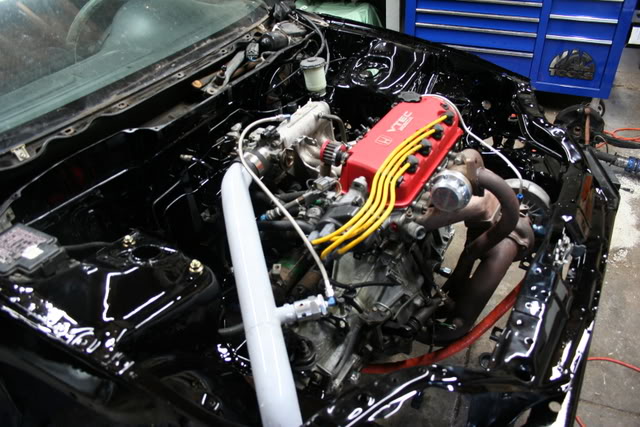

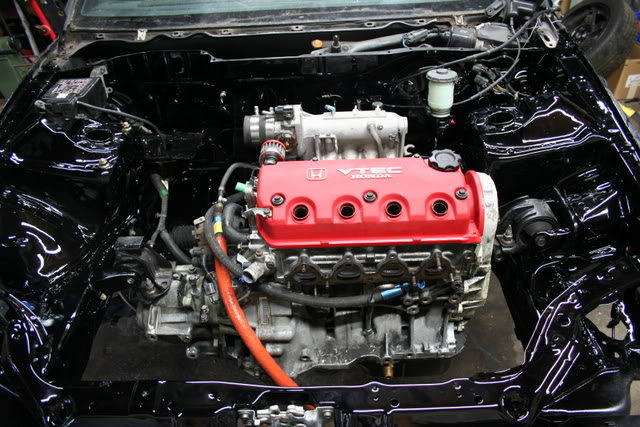

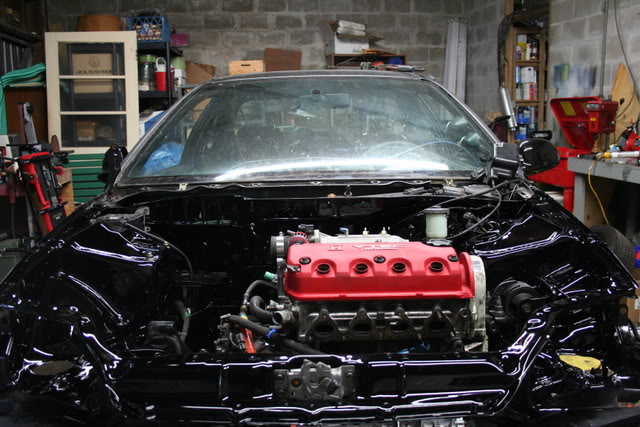

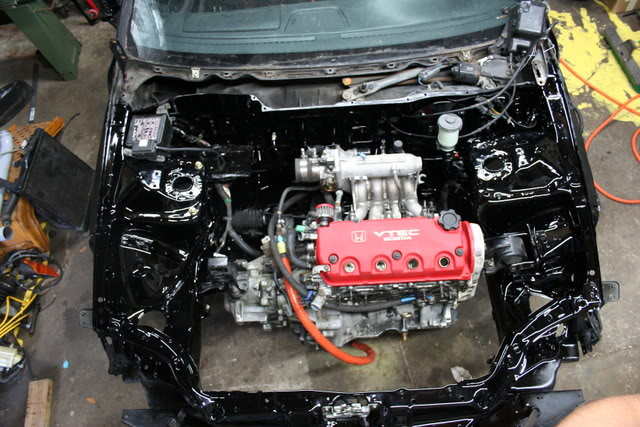

here is the engine back in the car. i was so nervous about this part. the last thing i needed was a scratch
i really like the openess of it. there is so much room and it is so uncluttered. hopefully it looks like that when its running too. i am trying to hide as much as possible

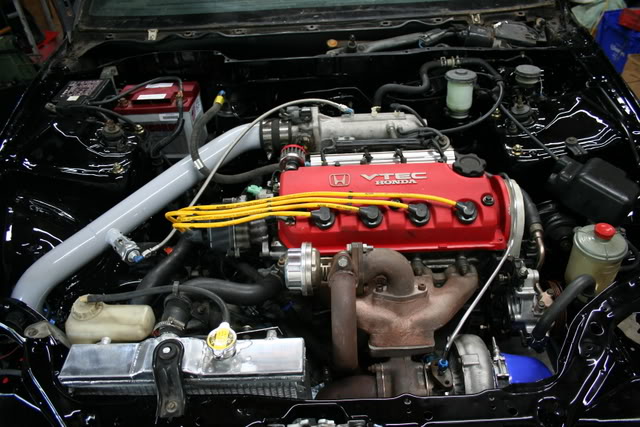

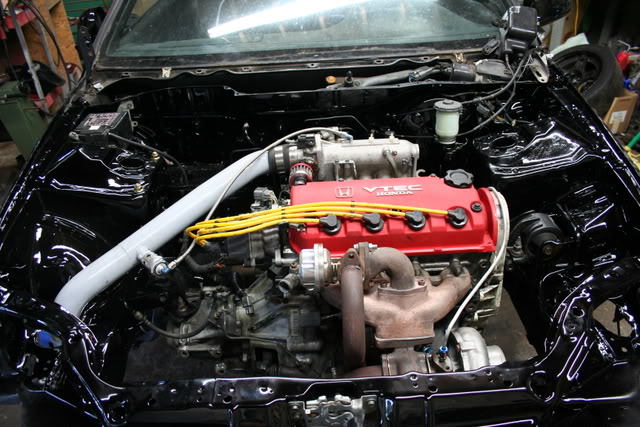

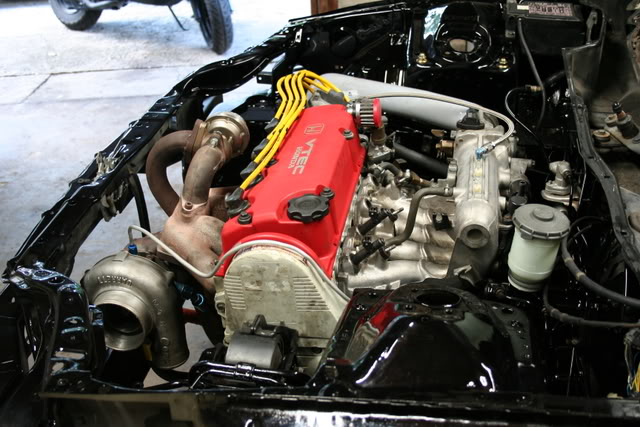

Todays Progress. my plan is to get a good street tune on it sunday. im not rushing it though

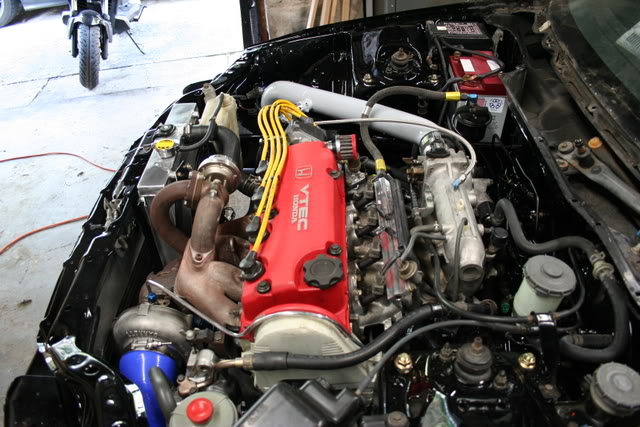

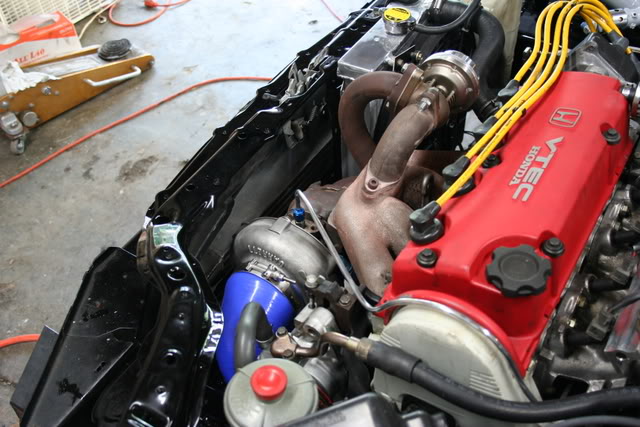

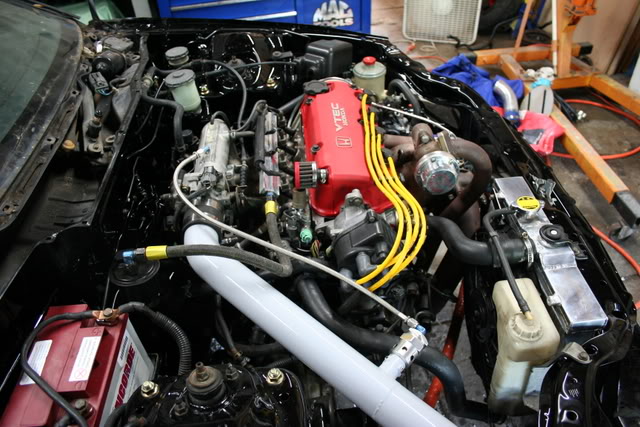

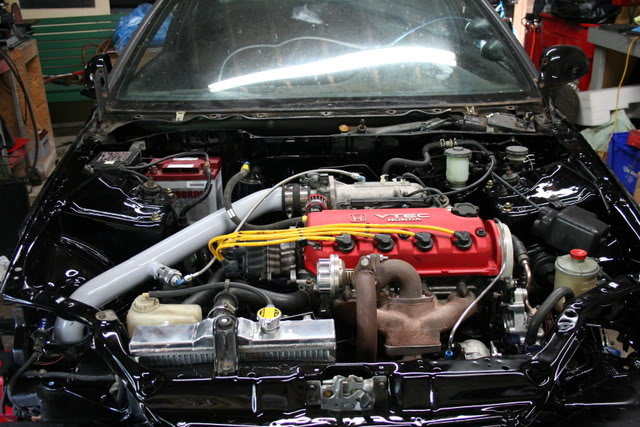

so, its pretty much done. i just need to put the body panels on and get an alternator. anyone have one? i need it asap
Stock JDM D15b
STR Cast turbo manifold
Turbonetics Evolution wastegate
t3/t4 60-1 compressor t3 .63ar stage 3 turbine housing with a t4 "N" trim wheel
2.5" mandrel bent charge pipes made by me
some no name front mount that seems to be good for round 400hp
2.5" mandrel bent downpipe and complete exhaust all made by me
low boost setup DSM 450cc injectors/ CRX si resistor box, high boost setup is 650cc edge products injectors
Chipped ecu tuning with Crome
running about 9psi made around 200whp
running 30psi whp
the first 3 pics are what i started with this time. the last pic in this post is how the car currently sits

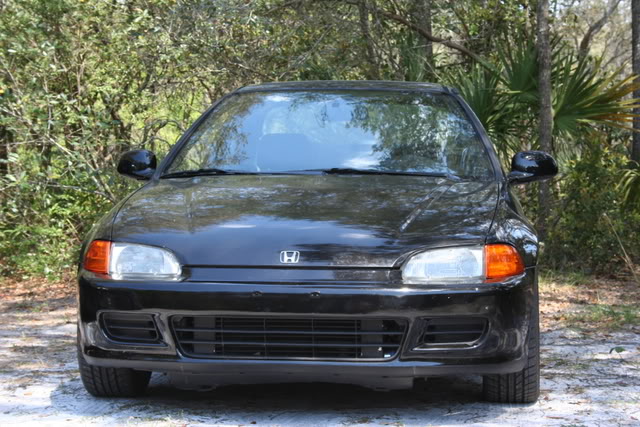

Sleeper front mount

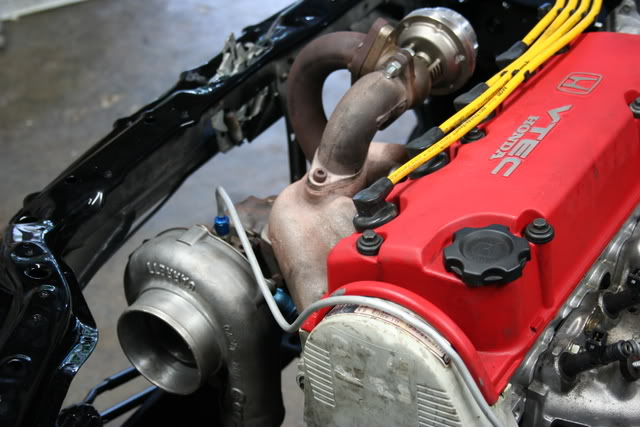

The turbo that eats babies
Engine is out and everything is getting pressure washed by my friend Todd. it was coming out for everything getting fully built, but i miss driving a boosted car so its in the process of being put back together. after the wedding the engine will come back out for its new parts and the tranny will get an LSD.
i dont know why Todd likes pressure washing my car so much, but who am i to stop him. lol
so fresh and so clean clean.
here is a little surprize given to me by a leaky proportioning valve
a little more disssasembly for the engine bay painting
this shows just how much i stripped it
filling some holes
here is the painted bay. i meant to get some pics of the prep, but i forgot
super slick
here is the engine back in the car. i was so nervous about this part. the last thing i needed was a scratch
i really like the openess of it. there is so much room and it is so uncluttered. hopefully it looks like that when its running too. i am trying to hide as much as possible
Todays Progress. my plan is to get a good street tune on it sunday. im not rushing it though
so, its pretty much done. i just need to put the body panels on and get an alternator. anyone have one? i need it asap
#3
Re: my latest project with my car
want my honest opinion? great work on the engine bay. Shitty work on getting that engine clean. Shoulda painted the engine while it was out? -or maybe by chance you have another motor waiting to go in? And have that manifold coated so it looks a little better also
#4
Re: my latest project with my car
the engine is just being thrown back in cause i want to drive the car again. after i get married(wedding is sucking all of my money) i have plans of shooting for the vitara HP record and that engine will look mint
