finshed pics (kinda dark)
10-28-2004, 04:42 PM
#1
0.5 BAR
Thread Starter
Join Date: Sep 2003
Posts: 160
finshed pics (kinda dark)
here goes

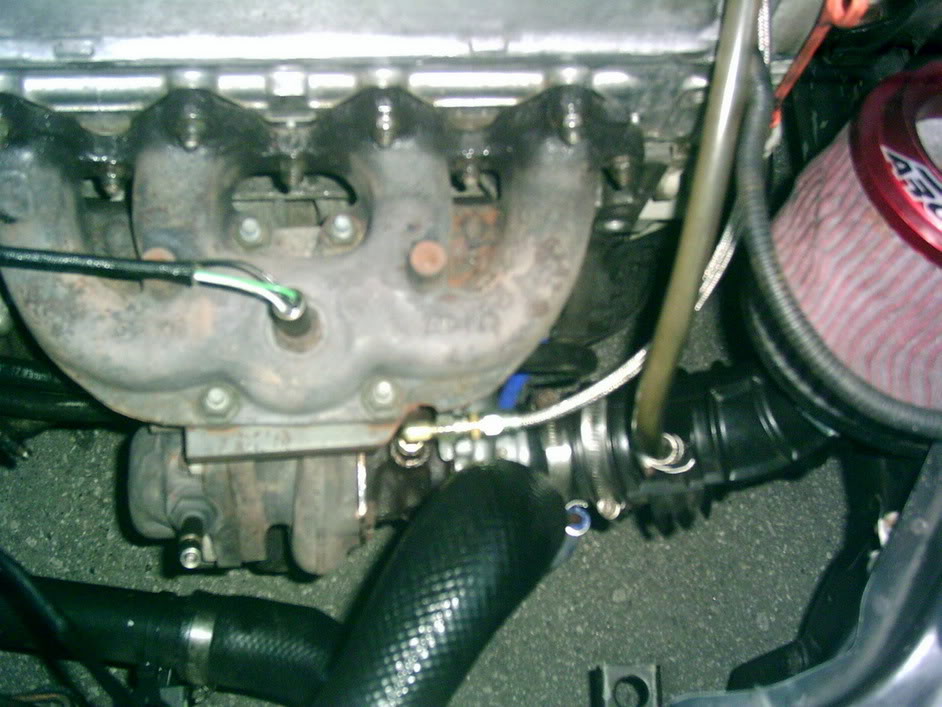

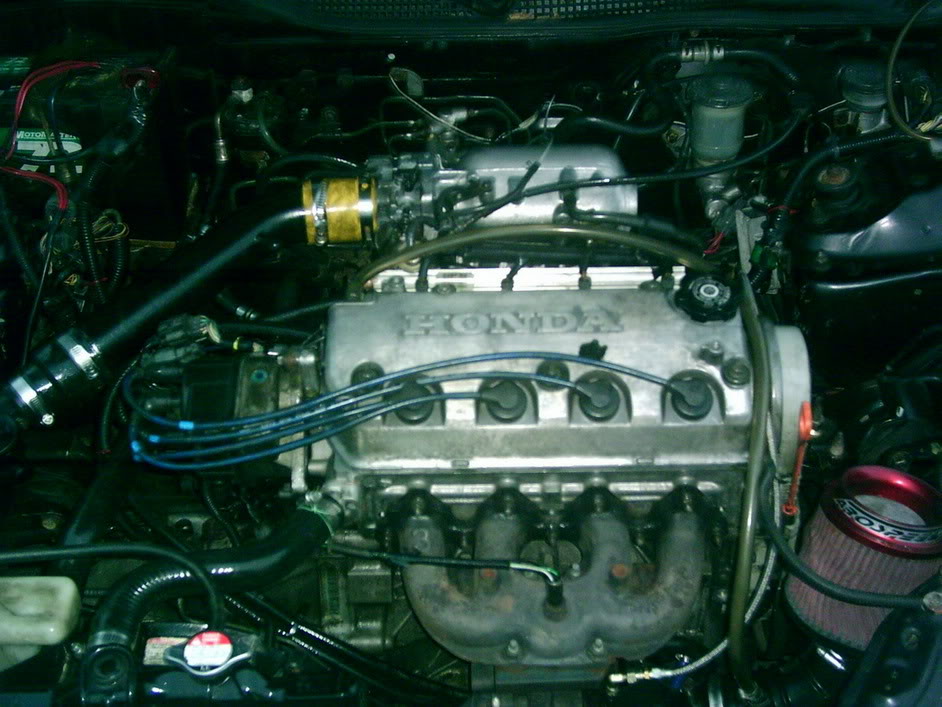

turbo set up lil ihi

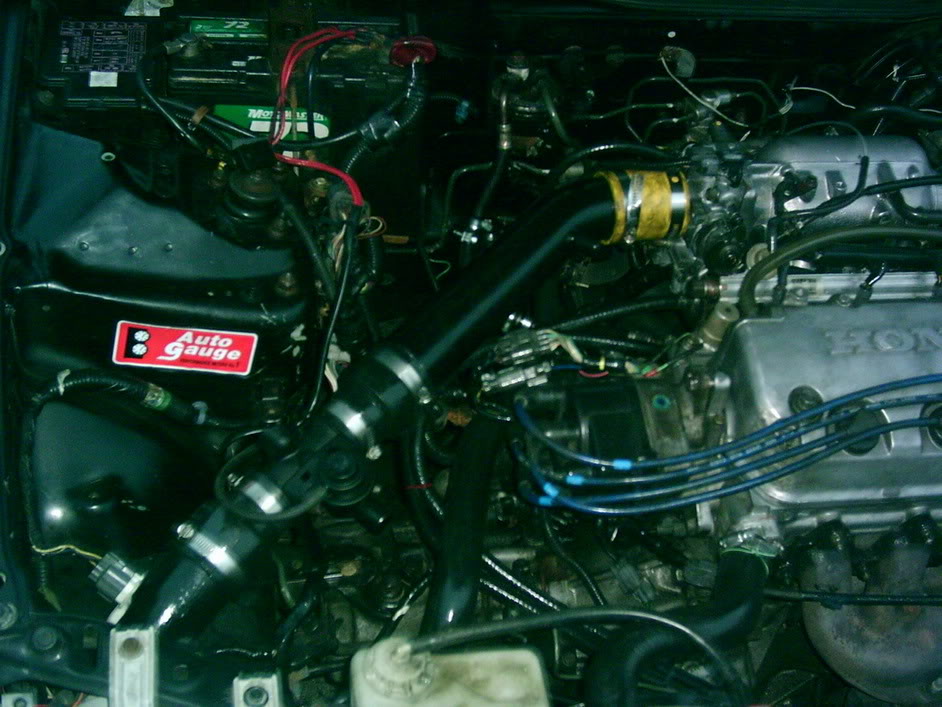

more (tiny probe bov 1 gen bov was crushed gave me compresser surge)

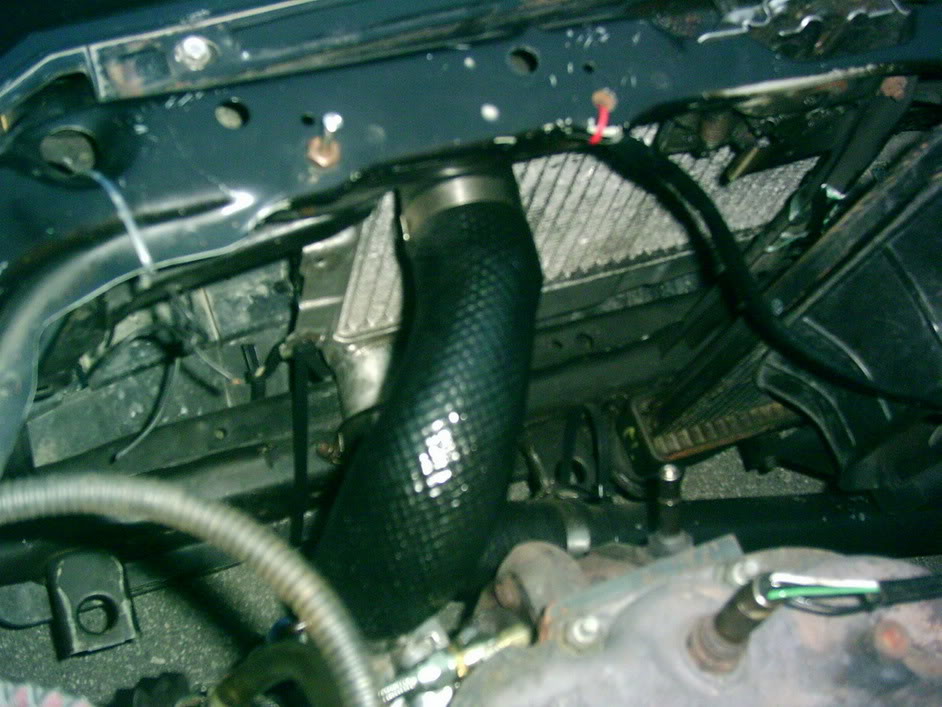

charge hose to cooler (probe intercooler)

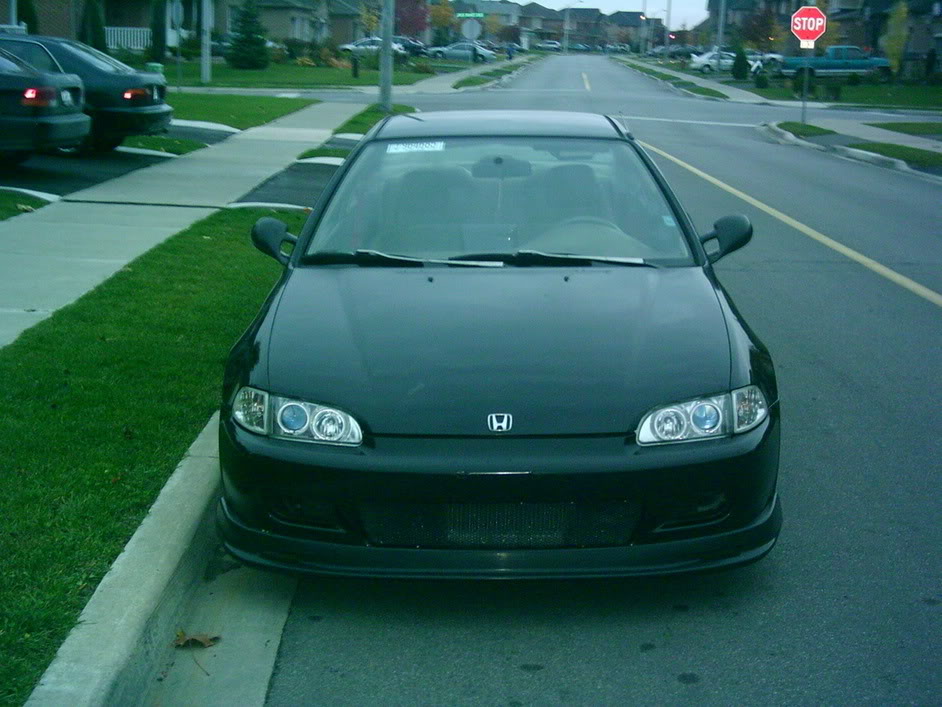

from the front

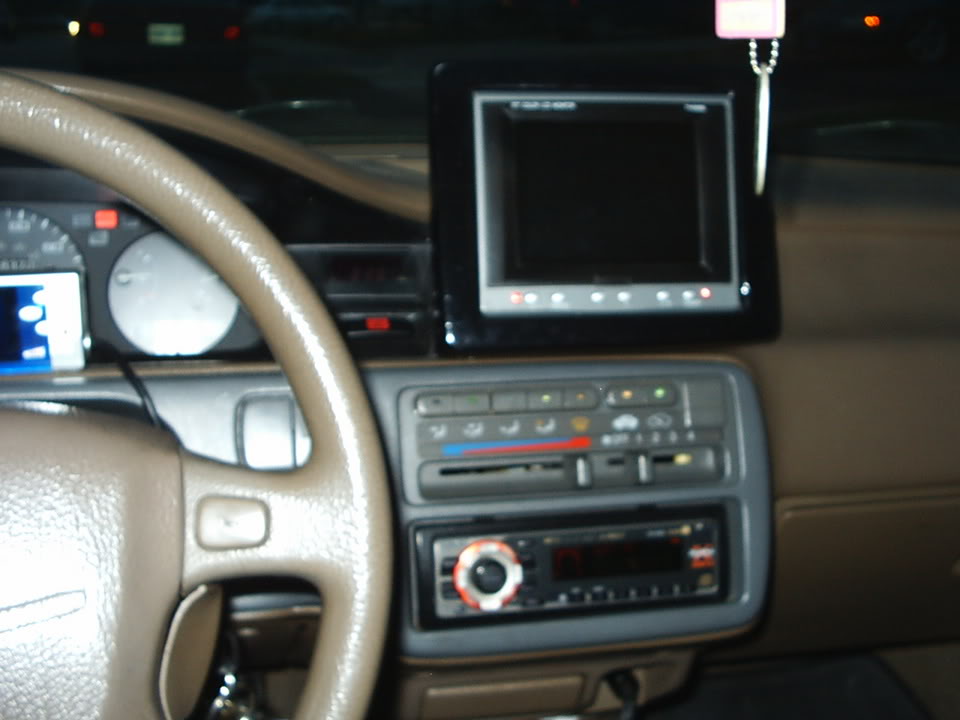

interior pics

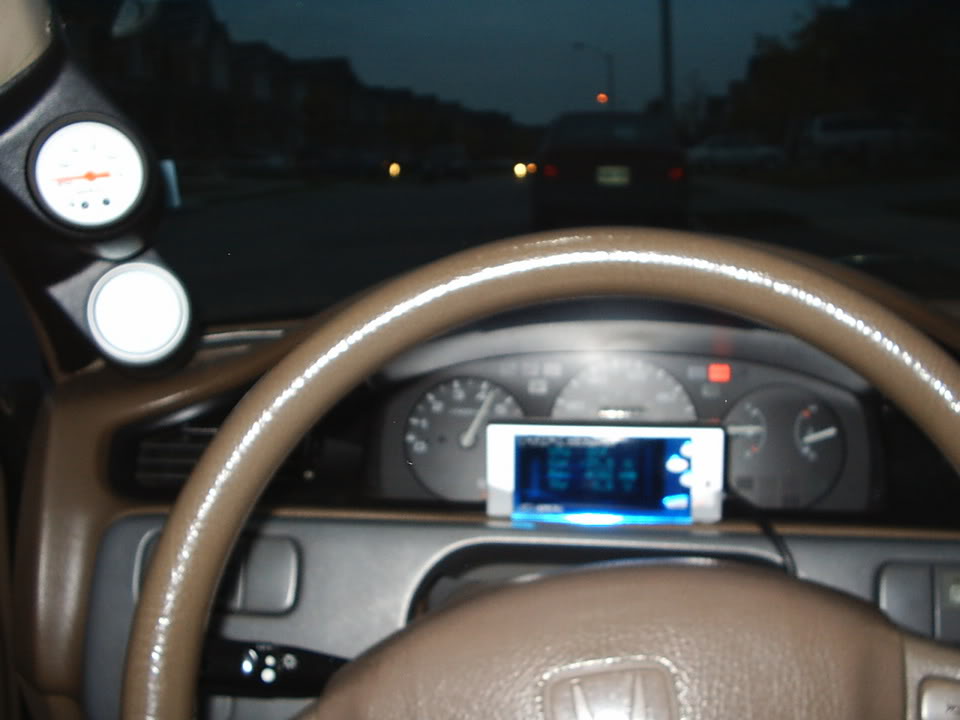

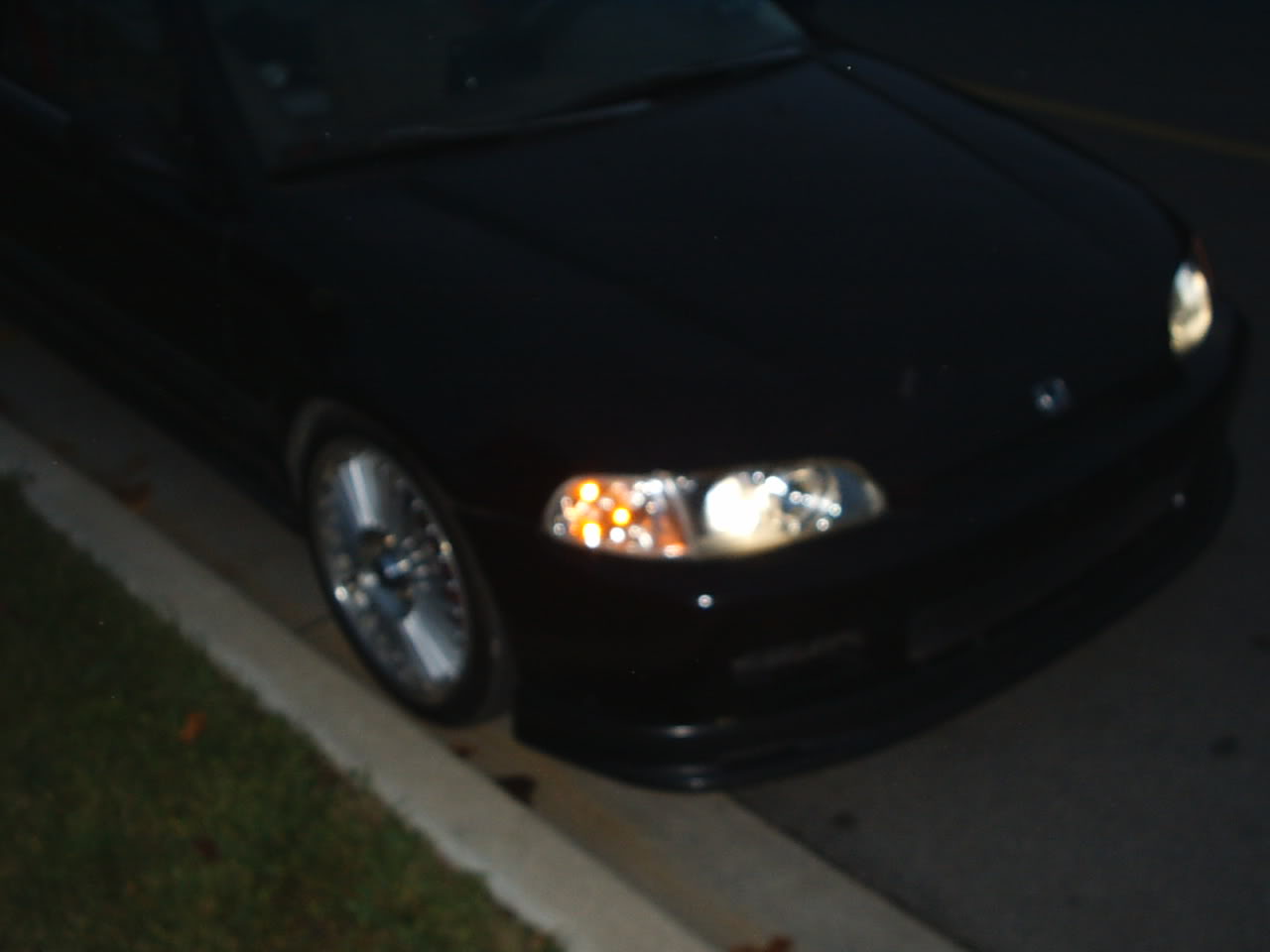

night pic blurry
thats all for now
turbo set up lil ihi
more (tiny probe bov 1 gen bov was crushed gave me compresser surge)
charge hose to cooler (probe intercooler)
from the front
interior pics
night pic blurry
thats all for now
10-28-2004, 05:27 PM
#2
3.0 BAR
Join Date: Jul 2004
Posts: 3,207
Re:finshed pics (kinda dark)
not bad, congrats on gettin it finished... how's it run? how much u boostin? u didnt need those water cooled lines... waste of space under ur hood. looks clean tho. how's that bov sound? jus usin the hack for now? more details on setup but none the less clean setup
10-28-2004, 06:44 PM
#3
1.5 BAR
Join Date: Jun 2003
Posts: 714
Re:finshed pics (kinda dark)
looks pretty good, but why in the hell would you want to mount your VAFC in a position that blocks your tach and speedo?
Also, backing this with personal experience, you might want to wrap that big rubber charge pipe with hose clamps, zip ties, duct tape... anything that will limit expansion. I had a piece of charge piping exactly like that from some stock turbo car i found at the junkyard and under boost it would balloon up pretty good.
Also, backing this with personal experience, you might want to wrap that big rubber charge pipe with hose clamps, zip ties, duct tape... anything that will limit expansion. I had a piece of charge piping exactly like that from some stock turbo car i found at the junkyard and under boost it would balloon up pretty good.
...but damn I hate the civic tan interiors
hahah thats old school man...i like how u used a picture frame around your screen...setup looks great..classic HMT
10-29-2004, 12:10 PM
#6
0.5 BAR
Thread Starter
Join Date: Sep 2003
Posts: 160
Re:finshed pics (kinda dark)
set up as follows..
std manifold
custom adapterplate
ihi rhb5 (probe)
450's/resistor box
probe bov, intercooler
v-afc
2.5 inch dp
this set up is just for this year this winter i will be working on something else
std manifold
custom adapterplate
ihi rhb5 (probe)
450's/resistor box
probe bov, intercooler
v-afc
2.5 inch dp
this set up is just for this year this winter i will be working on something else
10-29-2004, 12:32 PM
#8
0.5 BAR
Thread Starter
Join Date: Sep 2003
Posts: 160
Re:finshed pics (kinda dark)
only 5 pounds i think i got a leak some
where
it runs ok but i think when i figure out little kinks it will work even betterturbo dies out 2 soon
, but it was a big personal acomplishment for me, oh and the blow off vale is high pitched not as loud as the dsm though
squeaks like a mouse
whereit runs ok but i think when i figure out little kinks it will work even betterturbo dies out 2 soon
, but it was a big personal acomplishment for me, oh and the blow off vale is high pitched not as loud as the dsm thoughsqueaks like a mouse
10-30-2004, 08:09 PM
#10
0.5 BAR
Thread Starter
Join Date: Sep 2003
Posts: 160
Re:finshed pics (kinda dark)
i am going to change intercooler and turbo next year, not sure what turbo to run though, thinking about k26, and just making the o2 sensor hole bigger in the std manifold, and weld a pipe for external wastegate what do u guys suggest
what do u guys suggest
