D15z6 EDM turbo K03
12-29-2006, 08:13 AM
#1
0.5 BAR
Thread Starter
Join Date: Oct 2005
Posts: 119
D15z6 EDM turbo K03
I finaly managed to do things the way I wanted.
K03 turbo on a european d15 vtec-e.

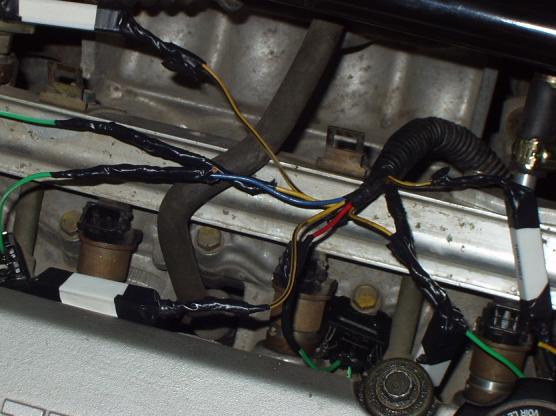

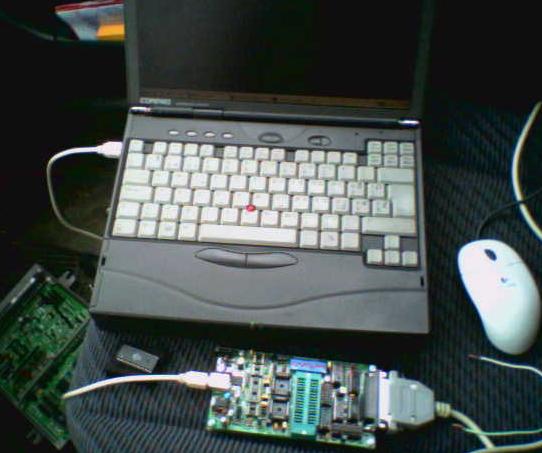

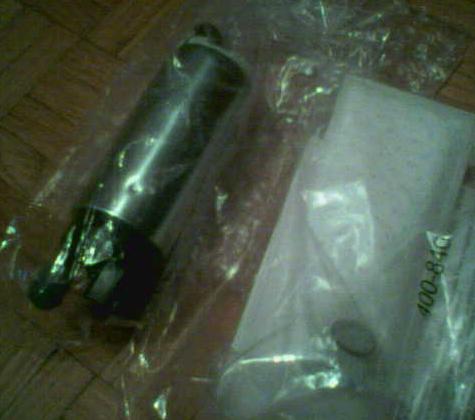

I did things the safe way so I used 660 ccm injectors, chrome, LM-1 O2 and walbro 255 to make shure I do not get in to lean area.

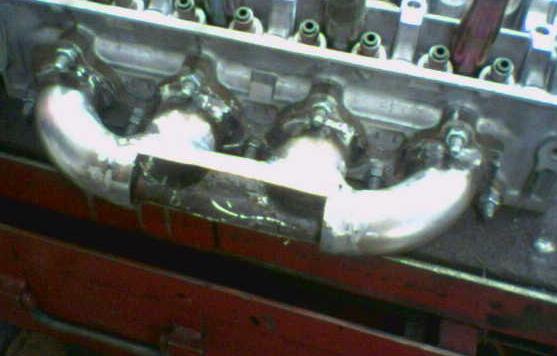

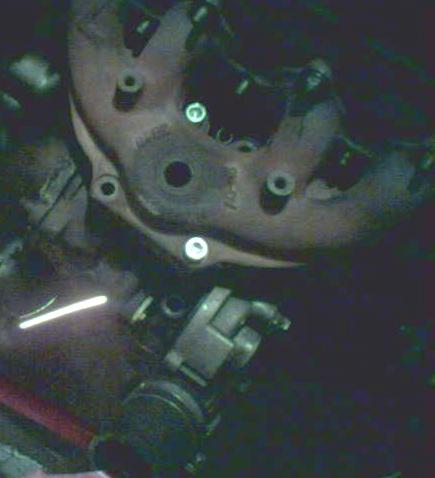

The first manifold I made was custom and it worked fine but it started to break so I replaced it wiht HF.
The IC is from Saab.
BOV no name "racing some thing from local tuning store" works prety nice.
I rined the car on 12-14 psi (0.9bar) on the 402 Race in Zagreb and I managed to hit 14.6 best time.
The car was pinging like crazy and I blew my headgasket. Any way I decided to raced to the end. It held and nothing blew.
After instaling thicker headgasket things were beter.
I never got it on the dyno so I am not shure about the HP.
The clutch is sinter and it holds great.
The spool of the small turbo was great. After 2500 I got boost. I was steady all the way to 7000rpm.
Prety nice for town driving.
I changed the gear box to d16z6 but I destroyed the dif. Some thing got broken so It was back to the log gearbox.
HOW DO I GET MY PICTURES TO SHOW IN THE TOPIC
K03 turbo on a european d15 vtec-e.
I did things the safe way so I used 660 ccm injectors, chrome, LM-1 O2 and walbro 255 to make shure I do not get in to lean area.
The first manifold I made was custom and it worked fine but it started to break so I replaced it wiht HF.
The IC is from Saab.
BOV no name "racing some thing from local tuning store" works prety nice.
I rined the car on 12-14 psi (0.9bar) on the 402 Race in Zagreb and I managed to hit 14.6 best time.
The car was pinging like crazy and I blew my headgasket. Any way I decided to raced to the end. It held and nothing blew.
After instaling thicker headgasket things were beter.
I never got it on the dyno so I am not shure about the HP.
The clutch is sinter and it holds great.
The spool of the small turbo was great. After 2500 I got boost. I was steady all the way to 7000rpm.
Prety nice for town driving.
I changed the gear box to d16z6 but I destroyed the dif. Some thing got broken so It was back to the log gearbox.
HOW DO I GET MY PICTURES TO SHOW IN THE TOPIC
12-29-2006, 12:15 PM
#4
1.5 BAR
Join Date: Dec 2006
Posts: 719
Re: D15z6 EDM turbo K03
Originally Posted by DrSeuss
is the K03 the one fitted to audi TT's? or is it from a 150hp vag engine?
improved and slightly larger compressor while using the same turbine still
with the same installation dimensions.
12-31-2006, 08:40 AM
#6
0.5 BAR
Thread Starter
Join Date: Oct 2005
Posts: 119
Re: D15z6 EDM turbo K03
Originally Posted by DrSeuss
is the K03 the one fitted to audi TT's? or is it from a 150hp vag engine?
How do you control the 3rd stage of vtec in crome? Are you running a 2.5 bar map sensor?
How do you control the 3rd stage of vtec in crome? Are you running a 2.5 bar map sensor?
Before 2 months i swaped the d15 engine for d16z6 so now I am runing 14psi (it is winter here)
The car runs great. I tried it on open turbo boosting about 1.3bars and it held. The car was riping through 3ird gear like crazy until the hose let loose. Now I am leanring how to tune with LMA-3 and LM-1 so I can prepare the car for race. I will run Crome on max boost. I hope to hit low 13 or atleast 13.5. Now on 0.8-1bar I am at around 14sec on 1/4 but the car is not fine tuned yet.
