AWD-T by red civic standard and redzcstandardhatch
#1
AWD-T by red civic standard and redzcstandardhatch
red civic standard and redzcstandardhatch decided to get together this past weekend and have some fun.
1989 Honda Civic AWD Realtime Wagon
IHI RHB5 turbo off of early Probe making 8 lbs of boost
HF manifold/BMC adapter plate/2.5" exhaust
DSM 390cc injectors tuned with wideband and TurboEdit

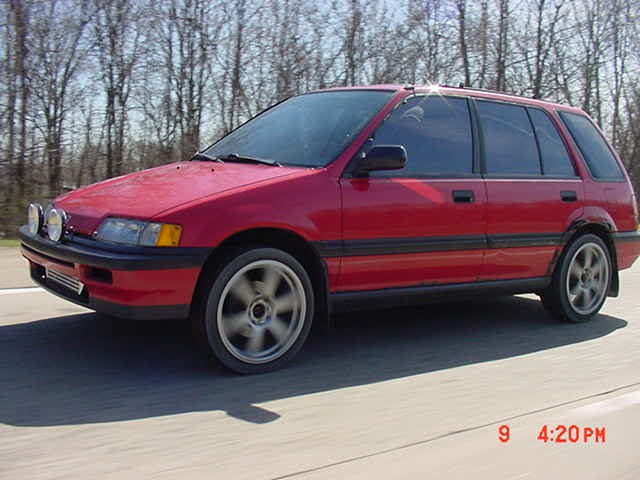

Here is what we started with:
Here are the pics of the buildup. Jabaay'dddd (redzcstandardhatch)
Make room for the turbo!! Didn't need that much room. Left the radiator in for the whole install.
Sawzall some room for the front mount:
Mount the turbo up:
Oil return. Drilled into the pan because we didn't want to remove the transmission to remove the oilpan.
Battery relocate via the bungy.
Intercooler piping:
Intercooler modified from 2.5" to 2" with aluminum plate (good work Adam)
The Jabaay boys doing what they do best:
Completed intercooler piping:
Downpipe and 2.5" mandrel exhaust:
Bumper back on:
BOOSTED!!!!!!
Video of boosted donuts:
http://www.eg-honda.com/pics/rip06/wago_rip.mov
www.eg-honda.com/pics/rip06/rip_mpeg4.mp4
Brought to you by red civic standard and redzcstandardhatch
1989 Honda Civic AWD Realtime Wagon
IHI RHB5 turbo off of early Probe making 8 lbs of boost
HF manifold/BMC adapter plate/2.5" exhaust
DSM 390cc injectors tuned with wideband and TurboEdit
Here is what we started with:
Here are the pics of the buildup. Jabaay'dddd (redzcstandardhatch)
Make room for the turbo!! Didn't need that much room. Left the radiator in for the whole install.
Sawzall some room for the front mount:
Mount the turbo up:
Oil return. Drilled into the pan because we didn't want to remove the transmission to remove the oilpan.
Battery relocate via the bungy.
Intercooler piping:
Intercooler modified from 2.5" to 2" with aluminum plate (good work Adam)
The Jabaay boys doing what they do best:
Completed intercooler piping:
Downpipe and 2.5" mandrel exhaust:
Bumper back on:
BOOSTED!!!!!!
Video of boosted donuts:
http://www.eg-honda.com/pics/rip06/wago_rip.mov
www.eg-honda.com/pics/rip06/rip_mpeg4.mp4
Brought to you by red civic standard and redzcstandardhatch
#7
Re: AWD-T by red civic standard and redzcstandardhatch
Originally Posted by brine04
Awesome. Nice work with the Mountain Dew catch can.
We need REAL ripper videos though. Take a 0-120 ripper in car and have someone out of car where you'd hit about 80ish for the flyby
