Forced Induction Custom FI Setup Questions

94 accord turbo manifold?

Thread Tools

Search this Thread

Old Mar 2, 2006 | 10:04 PM
  #1
integra167's Avatar
Thread Starter
0.0 BAR

Joined: Sep 2005
Posts: 20
Default 94 accord turbo manifold?

yeah my friend has a 94 accord. its a f22b2. we can't find any decent ones. only OBX ones on ebay. which if you seen in real life, you would know that they suck *****. and i found one a slowboyracing.com for 484 dollars. but we don't really want to spend that much on a manifold. he is on a budget. no more than $1000. so let me know where to get some good stuff for a turbo set up. thanks
Old Mar 3, 2006 | 12:12 AM
  #2
90dx's Avatar
3.0 BAR

Joined: Jul 2004
Posts: 4,027
Default Re: 94 accord turbo manifold?

You can modify a DSM one to fit and there are millions of them kicking around for cheap.
Old Mar 3, 2006 | 03:08 AM
  #3
bonestock94's Avatar
1.0 BAR

Joined: Mar 2005
Posts: 272
Default Re: 94 accord turbo manifold?

dsm manifold does not fit 94 and up accords. f22bx and f23xx have unequally spaced exhaust ports.

i got my manifold for my f22b1 from mike @ LSD motorsports, check out their link in classified forum.
they have a log and semi tubular style mani for the f22bx motor.

the semi tubular AC/PS and t3/to4e friendly mani was actually made with my car and with my turbo. last time i asked he's selling them for about $360+shipping.

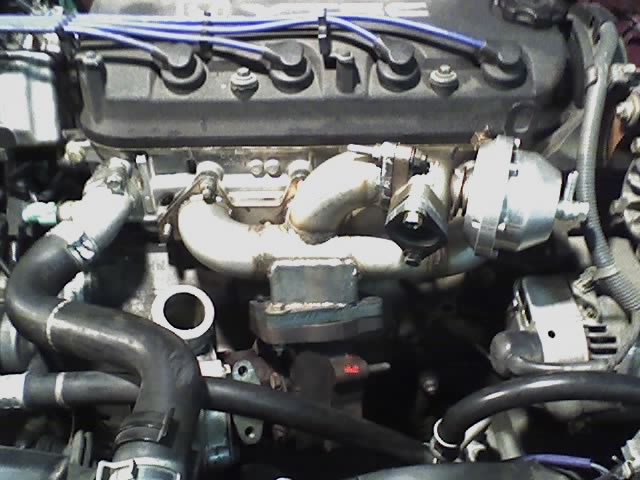

heres a pic a log mani he test fitted on my car.
Name:  11-08-05_1951.jpg
Views: 419
Size:  53.9 KB

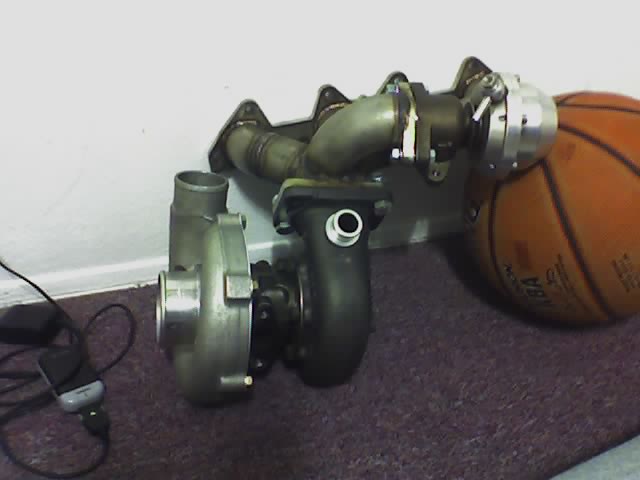

and a pic of my semi tubular mani
Name:  mani1.jpg
Views: 113
Size:  27.7 KB

Old Mar 3, 2006 | 03:33 AM
  #4
90dx's Avatar
3.0 BAR

Joined: Jul 2004
Posts: 4,027
Default Re: 94 accord turbo manifold?

dsm manifold does not fit 94 and up accords. f22bx and f23xx have unequally spaced exhaust ports.
Good to know.Good thing you jumped in this thread before he took my bad advice and went and bought a DSM manifold.
Old Mar 7, 2006 | 04:53 PM
  #5
bigdaddyvtec's Avatar
3.0 BAR

Joined: Mar 2006
Posts: 5,631
Default Re: 94 accord turbo manifold?

I have the LSD semi tubular too... my avitar is actually my setup

Im makin 260 HP 270 tq on a t3/04e 57 trim stage 3 garret at 10 psi. BONE STOCK f22b1. Custom built kit by me, Mikedope, and mani from Mike at LSD motorsports.Tuned on Crome Pro.

Ran 13.89 (with a 2.3 60 ') @ 102 MPH in my fully loaded 94 accord ex...AC, PS, CC, subs, spare and my big 250 pound *** in the ****** too.

Gonna put arp head studs in her this weekend (im having a very minor head lift issue under extended periods of boost), new oem head gasket+copper spray, install 3bar Map, redo crunched downpipe (ground clearance owns me) and cart her down to INTEC for a re tune at 13 psi...lookin for 280 WHP and 13.50s

motor seems to love it too... 175 175 175 175 compression after 3 months of continualll beating on it.
Old Mar 7, 2006 | 07:21 PM
  #6
danronian's Avatar
1.5 BAR

Joined: Jul 2005
Posts: 942
Default Re: 94 accord turbo manifold?

not sure but im pretty sure the DSM manifold will fit the f22b2 the non vtec version w/ modification because they are all evenly spaced correct me if im wrong
Old Mar 8, 2006 | 07:52 AM
  #7
SiRhonda20's Avatar
0.5 BAR

Joined: Nov 2005
Posts: 67
Default Re: 94 accord turbo manifold?

yeah go to with an lsd mani, thats what im going to have to do, im trying to run a ct 26, so my options are kinda limited. But they told me they could make me a tubular type like that one pictured second, and still keep the front mount, ac and ps
Old Mar 8, 2006 | 01:06 PM
  #8
bigdaddyvtec's Avatar
3.0 BAR

Joined: Mar 2006
Posts: 5,631
Default Re: 94 accord turbo manifold?

Ya the front mount takes some shaving BUT I kept mine... It makes a HUGE difference I should post some pics but if anyone is interested email me your email address.
Old Mar 8, 2006 | 04:36 PM
  #9
SiRhonda20's Avatar
0.5 BAR

Joined: Nov 2005
Posts: 67
Default Re: 94 accord turbo manifold?

"Ya the front mount takes some shaving BUT I kept mine... It makes a HUGE difference I should post some pics but if anyone is interested email me your email address."

Yeah dude email me all the pics u can! im gunna need some help with my proj, and it looks like yours turned out just fine. tyler.g.smith@umit.maine.edu THANKS!!!
Old Mar 9, 2006 | 01:56 AM
  #10
bigdaddyvtec's Avatar
3.0 BAR

Joined: Mar 2006
Posts: 5,631
Default Re: 94 accord turbo manifold?

You have mail and pics mannnnnnn
