Homemade valve re-grinding machine.

Fabrication Everything From JBwelded/Fluxcored downpipes to Equal length SS Manifolds.

Homemade valve re-grinding machine.

Old 03-14-2013, 02:07 PM
  #1
0.0 BAR
Thread Starter

Join Date: Mar 2013
Location: UK
Posts: 5
Default Homemade valve re-grinding machine.

My dad wanted his valves re-ground for his D16Y7 turbo build, so he made his own valve grinding machine.

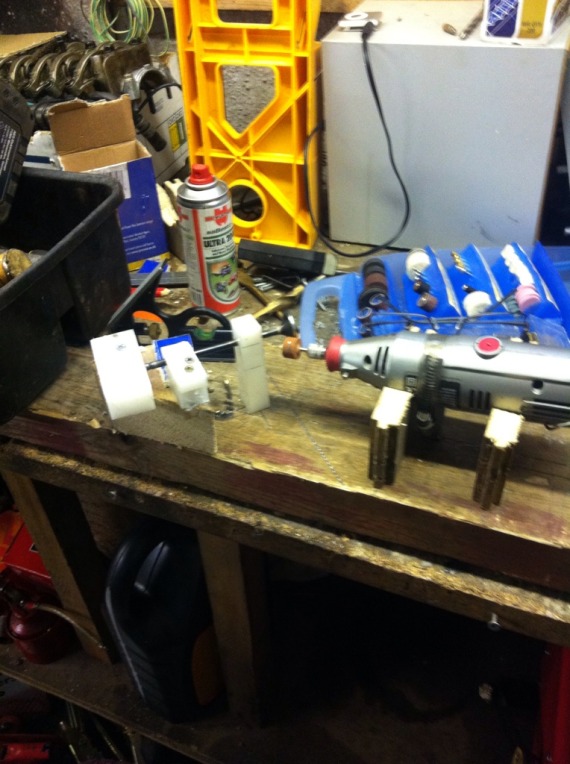

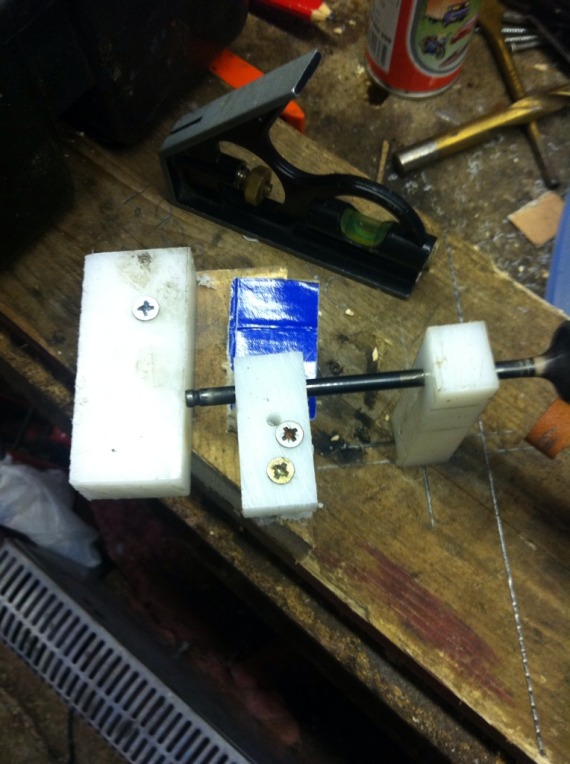

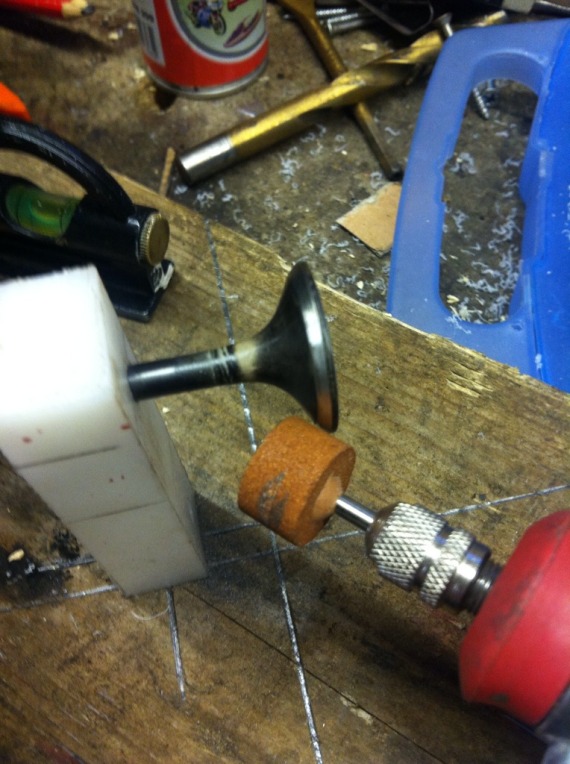

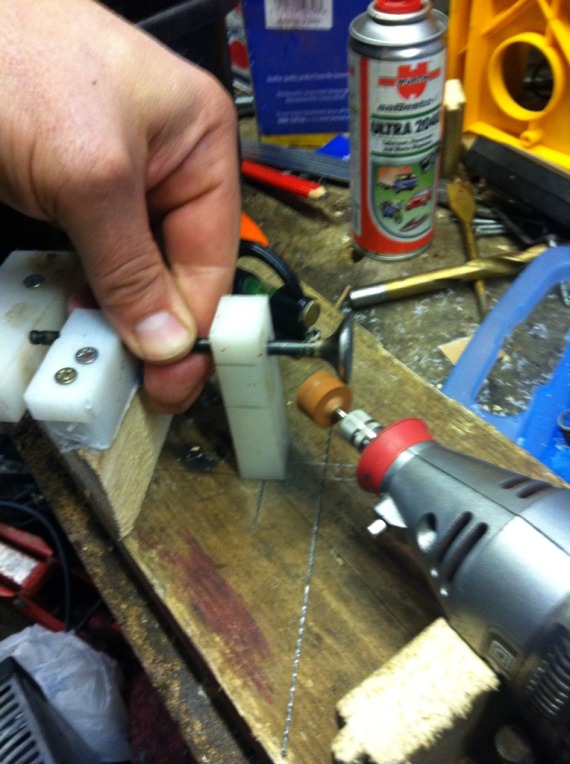

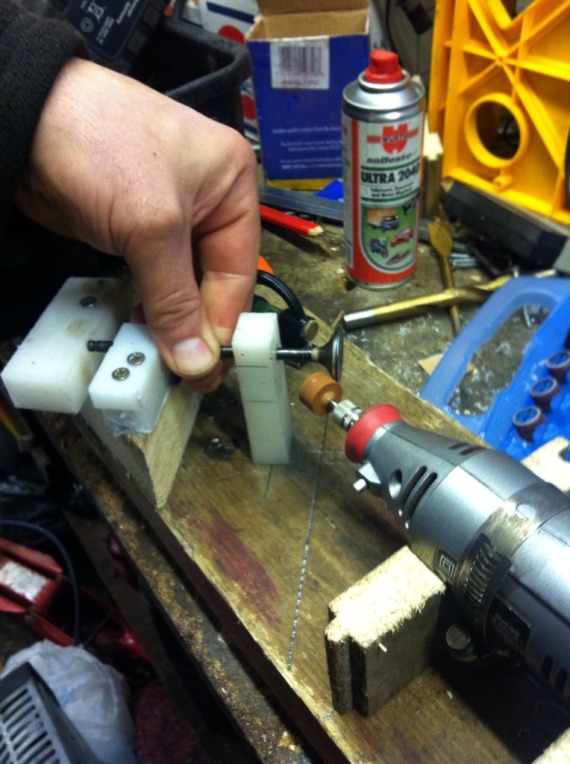

Dremel, three teflon blocks, protractor for the angles, scrap wood for the base, scrap piece of wood with a hole cut in it and then split, hose clamp.

Pretty ghettooo...

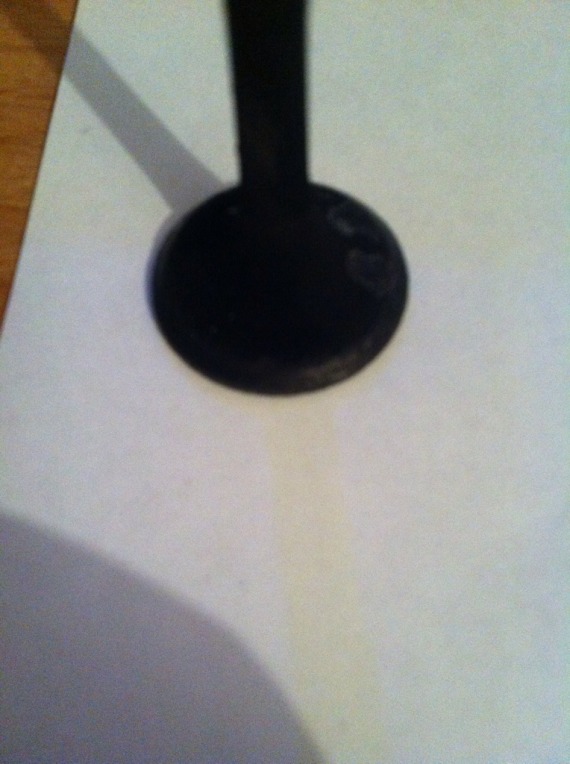

Valve before;

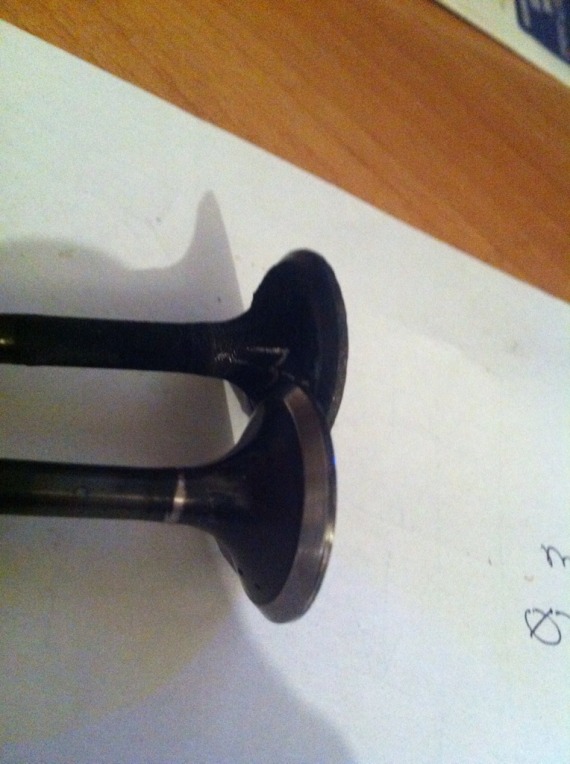

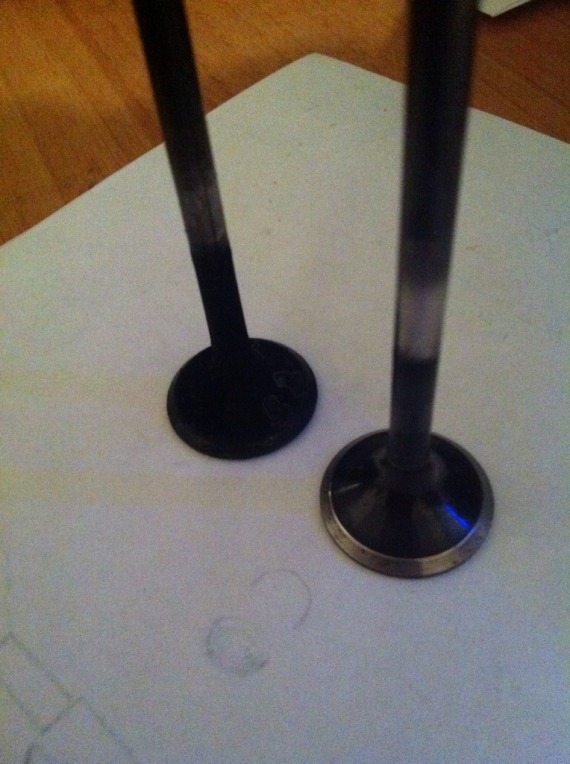

And after;



Obviously the closest one is the ground one



What do you think? Does the job!
Attached Thumbnails Homemade valve re-grinding machine.-48a2f02e-31bd-4750-aab8-4701f65d8ac1-52065-00000e5a8d11766e_zpsb4c043d7.jpg   Homemade valve re-grinding machine.-8eadf909-65e3-4686-836f-5a045a7a3386-52065-00000e5a92fc863e_zpse0c0786b.jpg   Homemade valve re-grinding machine.-9f58e5c7-bd3f-4c35-8b43-432a1f3180c1-52065-00000e5aa403993a_zps0504711f.jpg   Homemade valve re-grinding machine.-7fec5cd1-2e28-4e21-b9e1-5a03c4e80d70-52065-00000e5a9e539945_zps8ae7b6fb.jpg   Homemade valve re-grinding machine.-367a16be-dc6e-4fc7-9f6d-83085024e900-52065-00000e5a9832eb5a_zpsf00a3371.jpg

Homemade valve re-grinding machine.-a0a894e0-ac77-4a01-b927-b3f01f9ecc51-52106-00000e5c22ce0a31_zps3359844b.jpg   Homemade valve re-grinding machine.-61af5e36-dc7d-4a36-af05-3287238b606d-52106-00000e5c2ed4b63c_zps9b241c4e.jpg   Homemade valve re-grinding machine.-0fee452e-041e-4ddd-824d-a56b40116ed5-52106-00000e5c28b35572_zps38f4e2f6.jpg
Dollar is offline
Old 05-10-2013, 03:57 AM
  #2
0.0 BAR

Join Date: May 2013
Location: Northern Central Massachusetts (Certified Masshole)
Posts: 1
Default

Congrats, you get my first post on the Forum. new guy to this forum, but been on VWVortex for years.
I think its quite the awesome little homemade setup you have there. Only thing I would make sure of though, is to make sure the bits are very hard/abrasive and new so they are uniformly ground so your grinds are spot on and even.
You could possibly even try and attempt 3-5 angle valve jobs with this if you have the confidence and wouldn't be emotionally destroyed if while trying/testing it out and something went catastrophically wrong.
But great job anyway man, and good luck with it!!
Scoota_Ked is offline
Old 08-10-2015, 08:26 AM
  #3
0.0 BAR

Join Date: Aug 2015
Location: Pembroke Pines
Posts: 4
Default

I use to regrind valve when I worked for Revenge Power Machine Shop
Turbodah is offline
