racercrx89

I have a crx and I want to put an eg radiator in. Does anyone have pics of how thay modified the hood and and lower radiator support to make it fit without leaning it back.

con

traction bars, two birds one stone

JonDouglas

bitchasscracker

it sits in there sideways and leaning to the back it will allmost touch your valve cover

The Milk Man

Yup, this is how mine is also. Go ahead and buy traction bars so it sits right, IMO

Slo_crx1

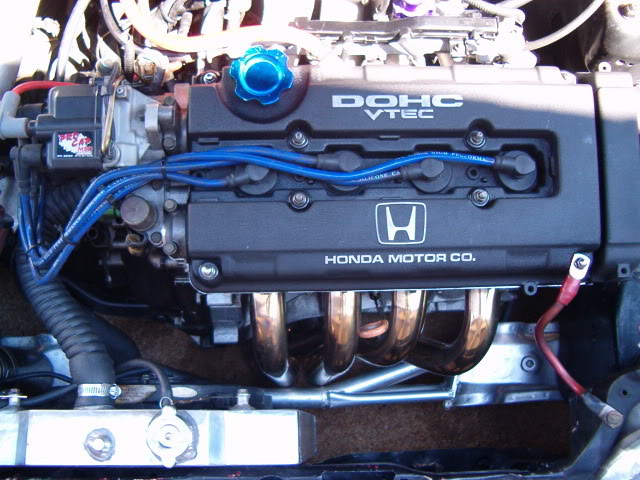

Or just do this...lower hose come's up through the crossmember braces, and the radiator is 2.5" thick bar and plate. (I made this mostly to fit a 4-1 header in my ED6, but it worked out for the radiator as well)

ryan89crx

thats what i did, WELL worth the money

beaker

i cut the top part of the lower support and bent it downwards, tilted the radiator about an inch towards the block and the hood sits perfect..........3 zip-ties later the radiator doesnt move

bpr00civicsi

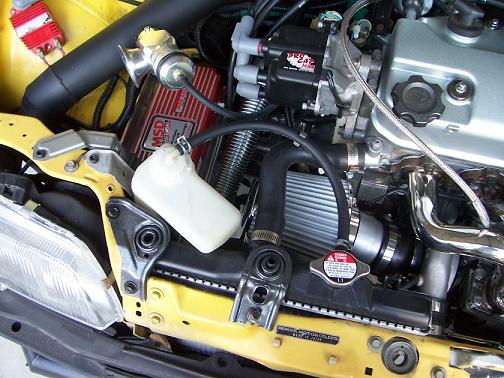

i modified my lower support to make it fit and it turned out nice

dephtone

that's what I did on my EF. Cut the top of the radiator support, removed the support tab from the side that no longer supports the radiator, moved it over to the spot where the 2nd tab comes down on the 1/2 radiator, welded it in, works fantastic.
