DP question.
10-17-2007, 01:56 AM
#1
1.0 BAR
Thread Starter
Join Date: Jun 2006
Posts: 253
DP question.
noob here.. never fabricated before and I was just wondering if you can make A/C compatible DP (driver side) with two 180 pipes. I'm planning on doing 2.5" or should I go 3" The motor is y7 and small T3 turbocharger off of a volvo or saab. Or is "pie cutting" the only option? help please.
10-17-2007, 10:17 AM
#2
3.0 BAR
Join Date: Oct 2003
Location: Your mom's panties
Posts: 3,696
Re: DP question.

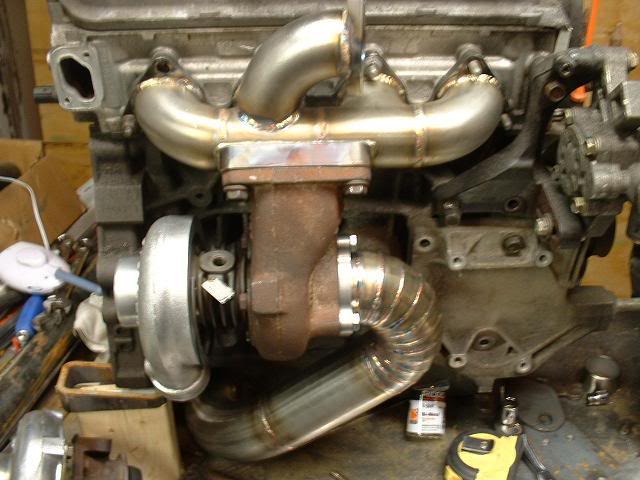

I made a 3" DP off my 14b, but that's passenger side. I think it could be done driver side but it's gotta go under the oilpan which is like 6" offcenter. It'll be a wicked bend, and after that you have the oil drain to worry about. Why can't you flip the turbo and make the DP come off the passenger side?
10-17-2007, 01:49 PM
#4
1.0 BAR
Thread Starter
Join Date: Jun 2006
Posts: 253
Re: DP question.
so it's impossible to make a DP with the 180 bends??
I bought all my turbo parts planning on making it A/C compatible.. bought that wicked log mani from CSaddict and small T3 turbo and already installed slimmer fans to radiator and A/C condenser.
Any tips??
I bought all my turbo parts planning on making it A/C compatible.. bought that wicked log mani from CSaddict and small T3 turbo and already installed slimmer fans to radiator and A/C condenser.
Any tips??
10-17-2007, 03:51 PM
#5
1.0 BAR
Thread Starter
Join Date: Jun 2006
Posts: 253
Re: DP question.
Here's the list of things I'm going to get to make my A/C compatible DP. let me know what you guys think
1x T3 5 Bolt flange
1x 2.5" Mild V Band Assembly
2x 2.5" 180 degrees mild steel pipe 3.75 radius
3x 2.5" Mild Steel Tube (a foot long each)
How does that sound?
1x T3 5 Bolt flange
1x 2.5" Mild V Band Assembly
2x 2.5" 180 degrees mild steel pipe 3.75 radius
3x 2.5" Mild Steel Tube (a foot long each)
How does that sound?
