Q about DSM 450's and stock civic injectors wiring

Engine Management eCtune , Crome , AFC , FMU , Zdyne , Hondata , EMS , TE , Uberdata Anything to control your fuel, spark needs!

Q about DSM 450's and stock civic injectors wiring

Old 04-10-2008, 02:28 PM
  #1
0.0 BAR
Thread Starter

Join Date: Feb 2008
Posts: 20
Default Q about DSM 450's and stock civic injectors wiring

I bought a set of DSM 450 cmm black top injectors, but wires on the injector clips all different colours. Can someone tell me, (maybe it's a stupid question to you, but I don't wanna risk anything) are "the left and the right" wire that go from the stock civic injector plug the same as on DSM (right one from DSM injector plug goes to right one from stock, and left one from DSM injector plug to left one on stock wiring on civic)?

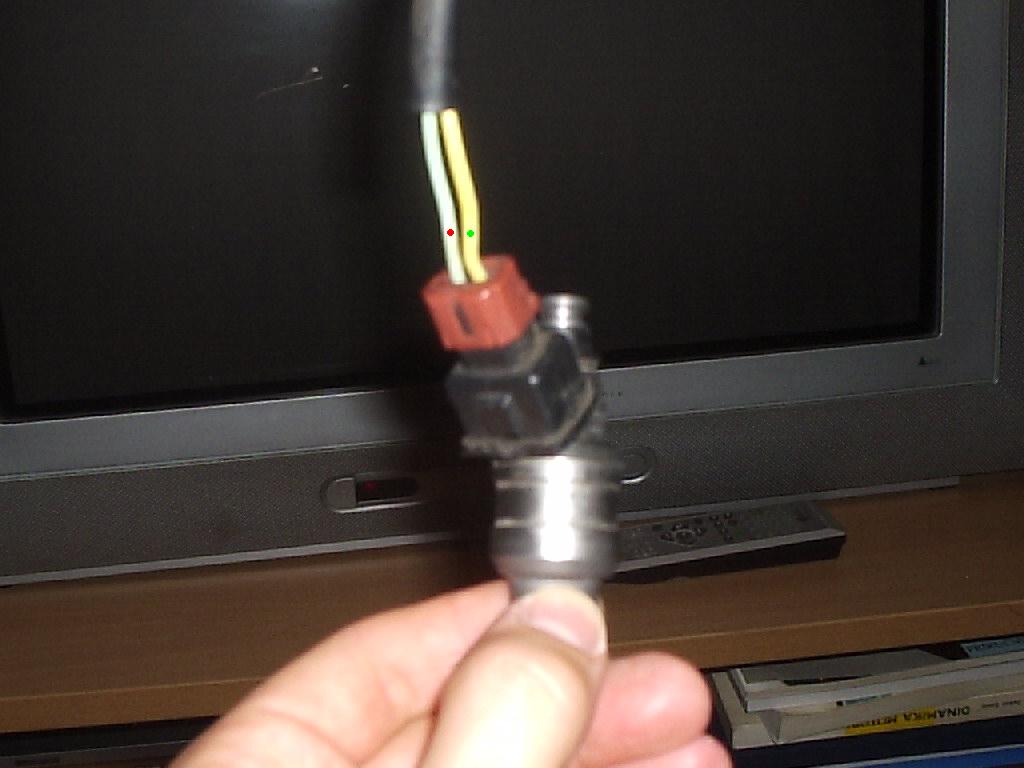

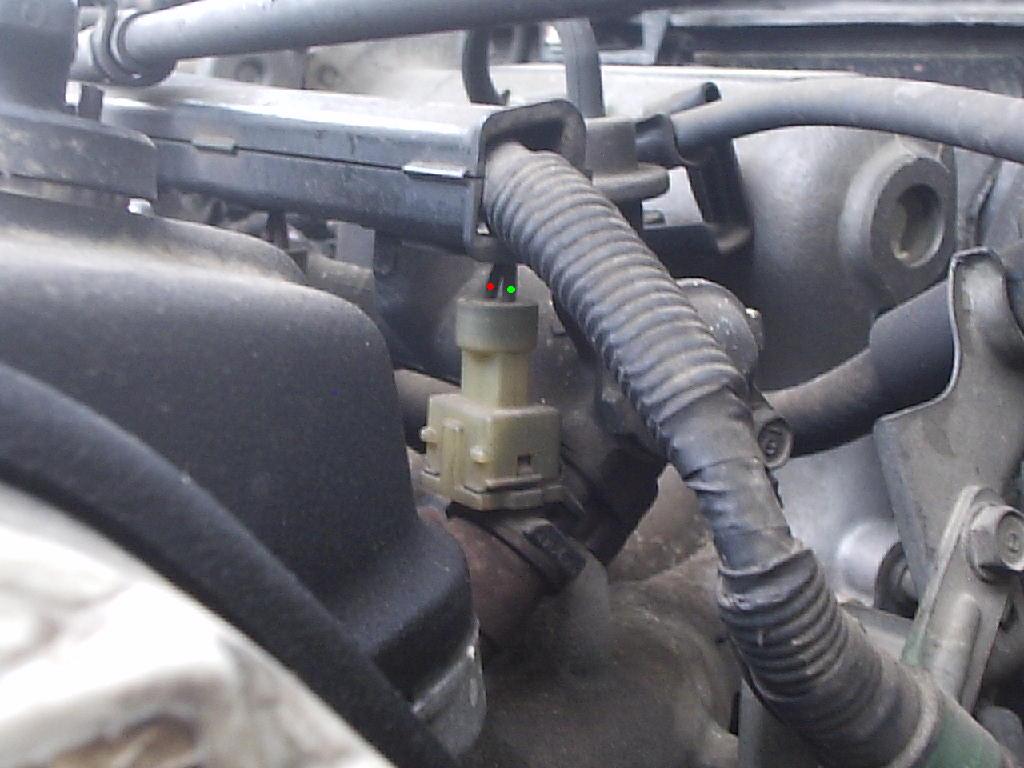

The pics ( stock 240 ccm ones in engine, and my DSM 450's in my hand) ....does red go to red and green to green?
The pictures are taken with injectors in same position (approx.).


Attached Thumbnails Q about DSM 450's and stock civic injectors wiring-p2145030.jpg   Q about DSM 450's and stock civic injectors wiring-p2145031.jpg
#Leo# is offline
Old 04-10-2008, 03:58 PM
  #2
1.5 BAR

Join Date: Mar 2005
Posts: 946
Default Re: Q about DSM 450's and stock civic injectors wiring

hey tightass, by the looks of it you have a pre obd car, you can plug right into your dsm injectors with the stock plugs, no re wiring.

SQ is the SQUAD is offline
Old 04-11-2008, 01:31 PM
  #3
1.5 BAR

Join Date: Mar 2005
Posts: 723
Default Re: Q about DSM 450's and stock civic injectors wiring

Injectors are basicly solenoid valves, and DC solenoid coils don't really care which side of the coil is + or -, unless it has some stupid diode in it. Best way to check is to use a continuity checker - stick one end on the engine block (ground), then check the injector clip's contacts. One will read 2-15 ohms, one will have no connection. Guess which is ground. Also, if it reads ~7-12 ohms, you probably have a resistor box in there.
HiProfile is offline
Old 04-14-2008, 04:28 AM
  #4
0.5 BAR

Join Date: Mar 2008
Posts: 119
Default Re: Q about DSM 450's and stock civic injectors wiring

I know around here im a total NOOB but what the ---- is a 450 ccm injector? I thought ccm made shitty bicycles? First post, might as well make an *** of myself somehow :P
That Guy is offline
Old 04-15-2008, 12:27 AM
  #6
0.5 BAR

Join Date: Mar 2008
Posts: 119
Default Re: Q about DSM 450's and stock civic injectors wiring

I know what a dsm is, but how do i go DIAF?
That Guy is offline
Old 04-15-2008, 02:52 AM
  #7
0.0 BAR

Join Date: Jan 2008
Posts: 0
Default Re: Q about DSM 450's and stock civic injectors wiring

---- you, ****** *** piece of ---- fucktard
go fist your mother
Wank.a.lot is offline
Old 04-16-2008, 01:56 AM
  #8
0.5 BAR

Join Date: Mar 2008
Posts: 119
Default Re: Q about DSM 450's and stock civic injectors wiring

----, you guys sure do like new guys on the forum
