Hey guys, i'm back!!

Old 09-03-2007, 03:30 PM
  #1
1.5 BAR
Thread Starter

Join Date: Aug 2003
Posts: 1,341
Default Hey guys, i'm back!!

So I picked up an '02 RSX-S with a turbo kit. I was looking around for the management and all I could find was a little 6-7 wire piggy back system. It was a little black box that said "fuel control unit". Any idea what this thing is or how it works? I can't find anything on the internet about it. My guess is it tricks the map sensor or something to add more fuel.

I couldn't find anything that controlled the ignition though and that kinda scares me. There's no distributor on these cars, so it must be all done electronically via the ecu? So what's retarding the timing in boost?

I'll get pics later.
Stan is offline
Old 09-03-2007, 03:53 PM
  #2
0.0 BAR

Join Date: Dec 2002
Posts: 0
Default Re: Hey guys, i'm back!!

nothing


its proably one of the typical greddy units



your proably running more timing than stock



time to buy k pro
Guy-Fast is offline
Old 09-03-2007, 08:33 PM
  #3
1.5 BAR
Thread Starter

Join Date: Aug 2003
Posts: 1,341
Default Re: Hey guys, i'm back!!

Oh, the other thing that I don't understand is that the kit it running 6psi, and 600cc RC's... is that greddy black box controlling those injectors too??
Stan is offline
Old 09-03-2007, 09:18 PM
  #4
1.0 BAR

Join Date: May 2006
Posts: 381
Default Re: Hey guys, i'm back!!

Maybee it is a signal conditional that tricks the ecu to manage the larger injectors and control timing as well. Beware that some of the newer odbII systems can "learn" and thereby defeat some piggyback systems. Do you have a pic of it?
Dive_Miguel is offline
Old 09-03-2007, 10:34 PM
  #5
1.5 BAR
Thread Starter

Join Date: Aug 2003
Posts: 1,341
Default Re: Hey guys, i'm back!!

I doubt it's doing any ignition, not enough wires from that box. I'll have to look up what wires it's tapped into and find out what they are. Maybe the ecu is using the stock knock sensor to retard the timing by itself?

I'll go snap some pics.
Stan is offline
Old 09-03-2007, 11:52 PM
  #6
1.5 BAR
Thread Starter

Join Date: Aug 2003
Posts: 1,341
Default Re: Hey guys, i'm back!!

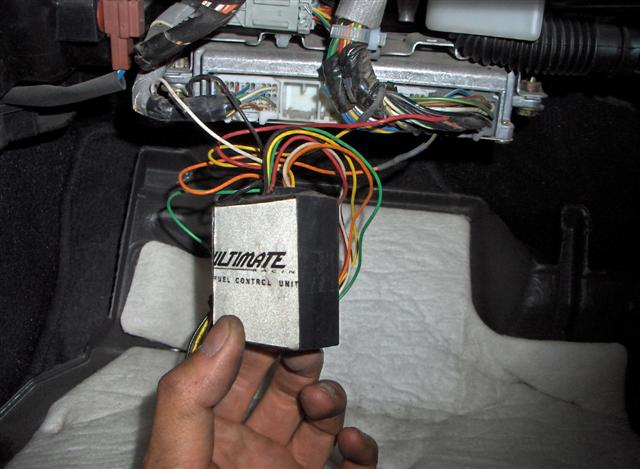

pic of the thing
Attached Thumbnails Hey guys, i'm back!!-hpim1552.jpg
Stan is offline
Old 09-04-2007, 01:02 AM
  #7
1.0 BAR

Join Date: May 2006
Posts: 381
Default Re: Hey guys, i'm back!!

Interesting. It does'nt look like it has any adjustment ***** on it, ect. My guess is that it is made specifically for whatever kit it came with. Some engines can run stock timing with conservative boost and ample fuel; i would like the availability to pull some timing for a margin of saftey. I guess the ecu pinout diagram would tell you what it is working with.
Dive_Miguel is offline
Old 09-04-2007, 01:07 AM
  #8
1.5 BAR
Thread Starter

Join Date: Aug 2003
Posts: 1,341
Default Re: Hey guys, i'm back!!

Only ecu pinout I could find was on hondata.com, and it said grn/red was the check engine light, which doesn't make any sense. Anyone has a link to a real ecu pinout diagram for an '02 rsx-s?
Stan is offline
Old 09-05-2007, 07:19 PM
  #9
1.5 BAR

Join Date: Sep 2006
Posts: 1,172
Default Re: Hey guys, i'm back!!

---- yo K!!

j/p...i wish i could afford a newer car
hondaunlimited is offline
Old 09-06-2007, 09:09 AM
  #10
0.5 BAR

Join Date: May 2005
Posts: 58
Default Re: Hey guys, i'm back!!

Let's see some pics of the new car Stan.
Rextasy is offline
