Turbo Yamaha Snowmobile
12-05-2011, 07:54 AM
#12
0.0 BAR
Thread Starter
Join Date: Jun 2011
Posts: 17
Take a look at the MCX 180 kit for the nytro. Stock fuel pump is used in the 240hp kit with a set of umbrella injectors. I have installed the 180(6psi), 240(12psi) and 270(16psi) kits from them. the 180 kit doesn't use an inter cooler, the response is quite a bit quicker than the other two that do have an inter cooler. If you have a 2009-2010 nytro use the yamaha 8bu weights, two 17mm steel rivets in each and 14.5mm rollers with stock clutch springs, works just great with the 180 kit, and you don't have massive weights that have a hard time back shifting like with the other levels of hp.
Im getting close with this thing. Another good day and I will be just about done.
Last edited by tjc; 12-05-2011 at 08:15 AM.
12-05-2011, 09:03 AM
#14
0.0 BAR
Thread Starter
Join Date: Jun 2011
Posts: 17

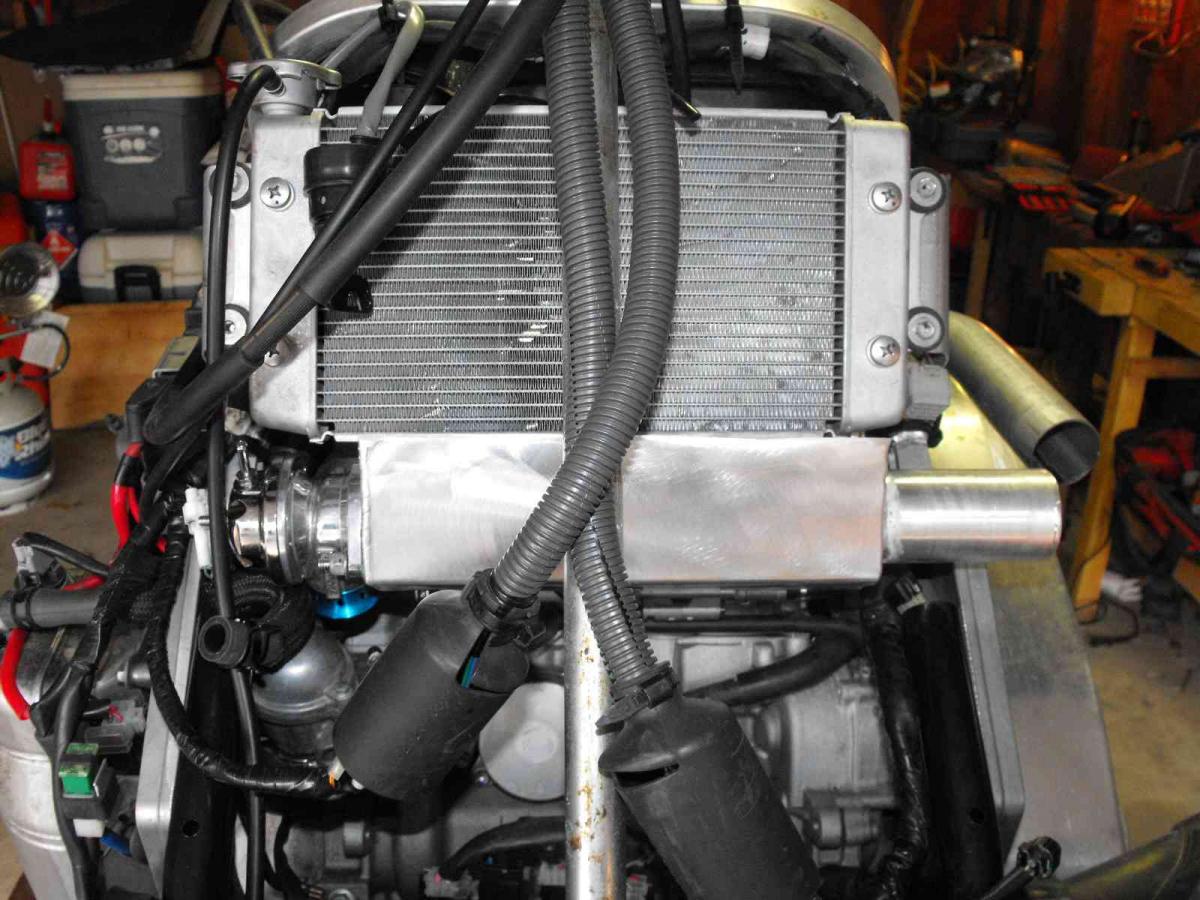

i ended up scrapping the intercooler and using a charge box. I think with the low temps in the winter and only running 5-6 pounds boost I should be good.
I used a fuel controller for a snowmobile its GEMs piggy back adds fuel under boost only.
I used a fuel controller for a snowmobile its GEMs piggy back adds fuel under boost only.
12-05-2011, 10:18 AM
#16
0.0 BAR
Thread Starter
Join Date: Jun 2011
Posts: 17
I will work on a video, we prob wont have snow here for a few weeks though. I'm pretty pumped to get it going.
This is a great site, it's a lot more fun to see what everyone is building then to look at a kit that someone bought.
This is a great site, it's a lot more fun to see what everyone is building then to look at a kit that someone bought.
12-05-2011, 07:06 PM
#17
0.0 BAR
Join Date: Aug 2011
Posts: 33
we are using the heavy rivets, your going to have to experiment though
8bu in this list:
http://www.cbperformanceparts.com/pr.../?pcid=196#top
you don't need to use the 14.5mm rollers, but the engagement rpm is a little high without them.
6psi is pushing the stock injector's capacity to the max remember. What are you doing for oil scavenging? Remember the oil pressure port by the sending unit on the block is 1/8-28 BSP, not 1/8th npt. You can however run a BSP die over a NPT fitting and it makes it work.
8bu in this list:
http://www.cbperformanceparts.com/pr.../?pcid=196#top
you don't need to use the 14.5mm rollers, but the engagement rpm is a little high without them.
6psi is pushing the stock injector's capacity to the max remember. What are you doing for oil scavenging? Remember the oil pressure port by the sending unit on the block is 1/8-28 BSP, not 1/8th npt. You can however run a BSP die over a NPT fitting and it makes it work.
Last edited by john0270; 12-05-2011 at 07:14 PM.
12-05-2011, 07:25 PM
#18
0.0 BAR
Thread Starter
Join Date: Jun 2011
Posts: 17
I have not picked the scavenge pump. I see powderlites offers a reasonably priced facet pump unit but I am worried about reliability. I dont see myself dropping $500 for the MCX mechanical pump.
I actually ordered the oil fittings today from a shop in the UK they were not easy to find.
I will be in the 5-6 psi area for boost keeping it on the safe side.
Thanks for the help.
I actually ordered the oil fittings today from a shop in the UK they were not easy to find.
I will be in the 5-6 psi area for boost keeping it on the safe side.
Thanks for the help.
Last edited by tjc; 12-05-2011 at 07:53 PM.
12-26-2011, 07:16 PM
#20
0.0 BAR
Thread Starter
Join Date: Jun 2011
Posts: 17
thanks man.
So i started the motor today.
Changed the oil, topped off the coolant and ran it.
I need gauges so I have not actually moved it but it ran. It is a little louder than I hoped but I have not put the seat and heat shield over the muffler yet.
Stil waiting for snow........
So i started the motor today.
Changed the oil, topped off the coolant and ran it.
I need gauges so I have not actually moved it but it ran. It is a little louder than I hoped but I have not put the seat and heat shield over the muffler yet.
Stil waiting for snow........
