02 housing ? chrysler t3
01-17-2011, 11:46 PM
#11
0.0 BAR
Thread Starter
Join Date: Jan 2011
Posts: 18

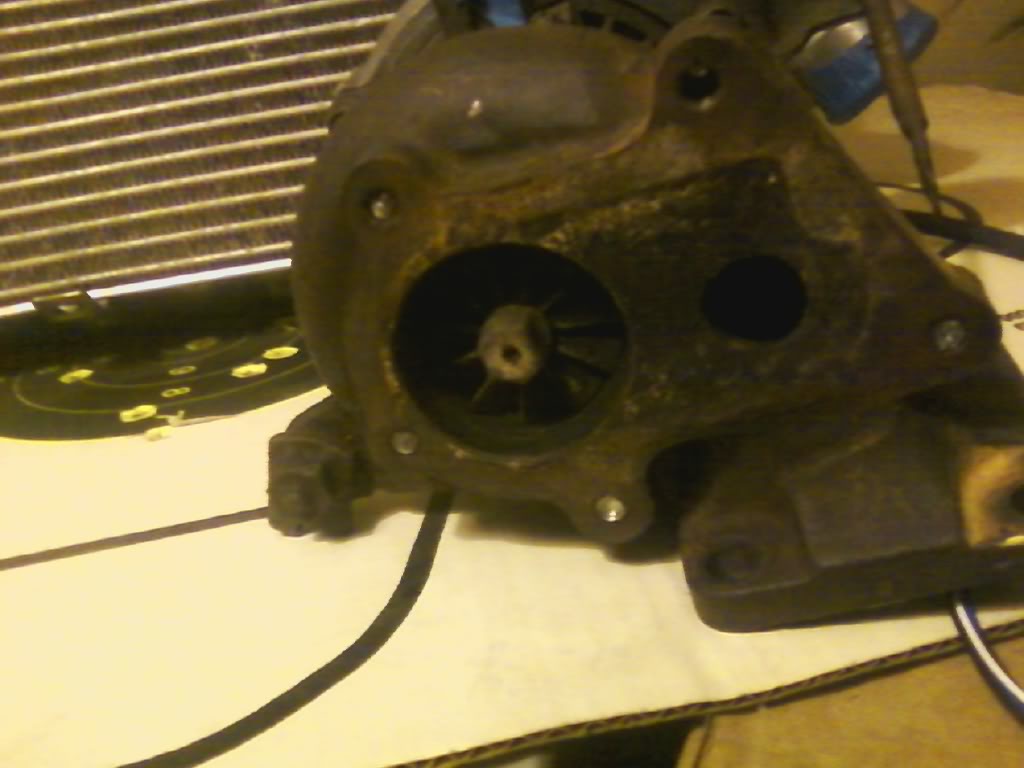

not welding wastegate hole on turbo if i were to weld this hole the wastegate should still work fine because it will still open and dump into the exhaust. this will be going on an 02 focus sohc. funny flange doesnt matter because im making my own manifold setup probably just make an adapter for stock manifold. when i entered the numbers on the tag into google i found a list and i thought it said this was a turbo II
01-17-2011, 11:52 PM
#12
0.5 BAR
Join Date: Sep 2010
Location: St Joe, IN
Posts: 97
Yea, the EGR hole which was dicussed earlier will be fine to weld. The best way to do it, is to put a steel pipe plug into it first, weld around it/fill whatever hole is left, then grind the weld back down so it is smooth.

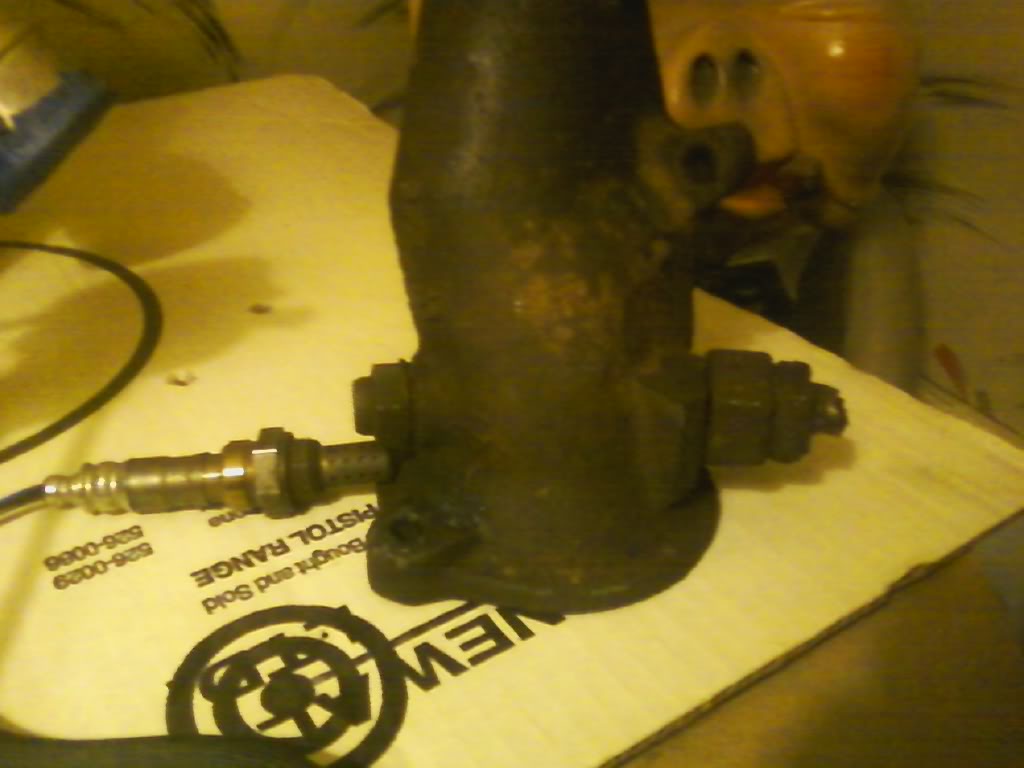

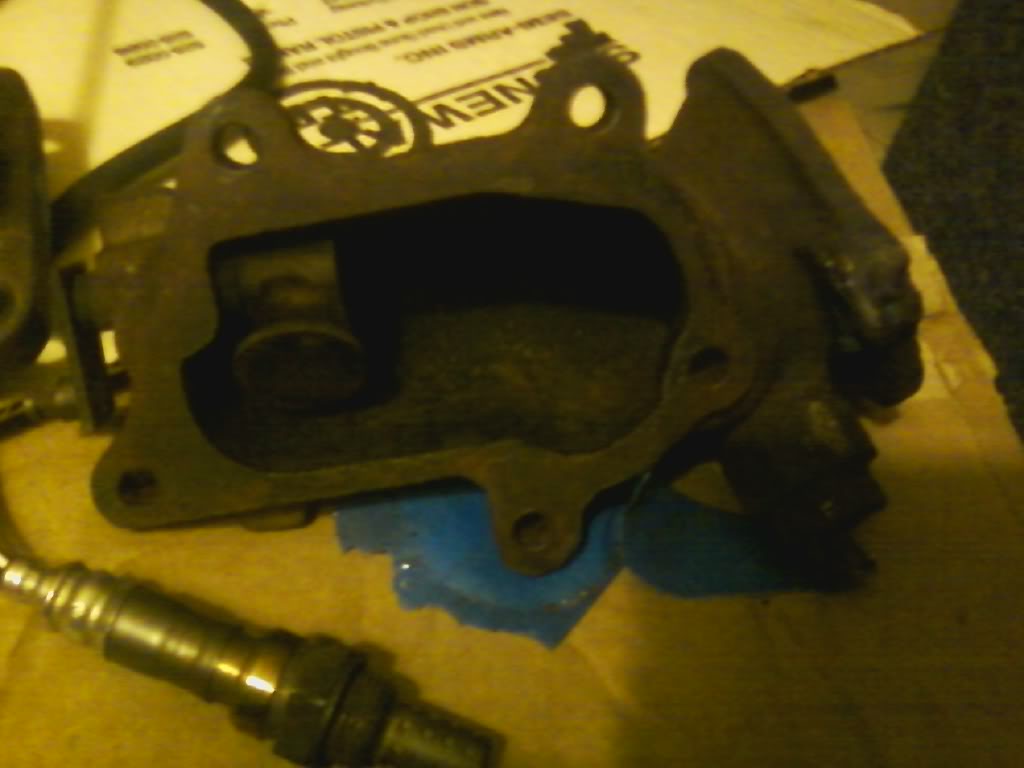

A picture will help, but if it has the 2 hole swingvalve, then the swingvalve came from an 84-87 turbo I garrett, which will have a 2.25in exhaust flange. In 87 TII cars and 88+ Chrysler turbo cars, all the swingvalves were made with a single provision for an o2 sensor
A picture will help, but if it has the 2 hole swingvalve, then the swingvalve came from an 84-87 turbo I garrett, which will have a 2.25in exhaust flange. In 87 TII cars and 88+ Chrysler turbo cars, all the swingvalves were made with a single provision for an o2 sensor
Last edited by boosted86; 01-17-2011 at 11:55 PM.
01-18-2011, 05:11 AM
#16
0.0 BAR
Join Date: Nov 2009
Location: Austria
Posts: 22
cool, i didn't know the pre-85 had 2 port actuators hooked up to pneumatic ("mechanical") control.. btw i was wondering about this part:
the spring is rated at 16-20 psi only for the 2 port actuator, right? got any other figures for the 1 port can (85-up)?
sorry, in case you feel this is a hijack lol.
greetz
sorry, in case you feel this is a hijack lol.greetz
01-18-2011, 01:29 PM
#17
0.5 BAR
Join Date: Sep 2010
Location: St Joe, IN
Posts: 97
Ok, now to get even more confusing.
In 84, they used a 2-port vacuum canister.
In 85-87 TI log turbos, they used a single vacuum port canister
In 86-88 TII cars, they used a "small can TII wastegate can"
In 89+ TII cars, they used a big can wastegate port
In 89+ TI cars, they used a mitsu turbo which used a small wastegate can.
There are other turbo cars that I am not mentioning, but we wont get into those for now lol.
The 84-87 TII cars could hold 15-20 lbs
The 86-88 TII cars could hold 12-15 minimum, after that they were considered unreliable, without bleeds.
In 89 TII+ 16-20
In 89 TI mitsus, 15-20, though boosting a mitsu to 15+ pounds doesn't help you a whole lot, they spool up fast but lose efficiency on Chrysler 8v at 4500+ rpms.
Not necessarily. I may have a 85-87 wastegate can. Another way you can do it, is by buying a threaded swingvalve end, and cut your current wastegate can arm. Then thread it, and adjust boost pressure by threading the arm in for "more" boost, and out for "less"
In 84, they used a 2-port vacuum canister.
In 85-87 TI log turbos, they used a single vacuum port canister
In 86-88 TII cars, they used a "small can TII wastegate can"
In 89+ TII cars, they used a big can wastegate port
In 89+ TI cars, they used a mitsu turbo which used a small wastegate can.
There are other turbo cars that I am not mentioning, but we wont get into those for now lol.
The 84-87 TII cars could hold 15-20 lbs
The 86-88 TII cars could hold 12-15 minimum, after that they were considered unreliable, without bleeds.
In 89 TII+ 16-20
In 89 TI mitsus, 15-20, though boosting a mitsu to 15+ pounds doesn't help you a whole lot, they spool up fast but lose efficiency on Chrysler 8v at 4500+ rpms.
Originally Posted by jmcrides03@yahoo.com
and the wastegate can is the 2 port one. so i might as well get an external wastegate?
01-18-2011, 03:25 PM
#18
0.0 BAR
Thread Starter
Join Date: Jan 2011
Posts: 18
and im going to have to add a vaccum fitting to the compressor side of the turbo also right? if i was going to keep this wastegate can how would i run the vacuum lines? thanks for your help im happy i found someone who knows these turbos i didnt have a whole lot of luck searching
01-19-2011, 11:47 PM
#19
0.5 BAR
Join Date: Sep 2010
Location: St Joe, IN
Posts: 97
Naw, no need to tap for that vacuum prot. You can just tee a line directly from the manifold, there will always be aprot on the maifold that is used for the brake booster. You can tap a new port on there, or just tee into the brake booster, but hard to transition to such a large line to small i.d. vac line for the boost controller/WG can
